vertical shaft planetary mixer wild used in concrete industry ,glass industry,Ceramic industry
Brief Introduction |
The MP Planetary electrical concrete mixer is designed according to Europe CE Standard. It improves the mixing efficiency compared with traditional type. |
Features |
|
Introduction of MP Series Planetary Mixer The mixers with vertical shafts allow the rapid mixing of all types of quality concrete (dry, semi-dry and plastic). The great versatility of the mixer enables it to be used not only in the production of concrete, but also in the mixing of materials for the production of glass, ceramics, refractory materials, etc. The gearbox unit (patent technology), specially designed for a balanced distribution of power to the various mixing device, ensure a low-noise rotation without backlash even under severe working conditions. Compared with traditional gearbox, this unit takes less space, and the maintenance space of the mixer can enlarge 30%. Equipped with a mechanical coupling and a hydraulic coupling (option), which can protect the transmission devices from overloads and impacts. Ni-hard cast iron blades are more wearable. As an alternative, we also offer polyurethane blades for special requirements. According to different materials, the liners and tiles can be cast-iron, HARDOX steel plate (Sweden original) or hard facing materials. From optional model selection to customized mixer for special application situation, we also can offer a full range of technical support and maintenance services. |
Technical Parameter |
Model |
Filling Volume(L) |
Feeding Capacity(KG) |
Compacted Concrete(L) |
Mixing Power (KW) |
Mixing Star* MixingBlade (Qty) |
Weight (T) |
MP50 |
75 |
120 |
50 |
3 |
1*2 |
0.7 |
MP100 |
150 |
240 |
100 |
5.5 |
1*2 |
1 |
MP250 |
375 |
600 |
250 |
11 |
1*2 |
1.8 |
MP330 |
525 |
790 |
330 |
15 |
1*2 |
2.2 |
MP500 |
750 |
1200 |
500 |
18.5 |
1*2 |
2.5 |
MP750 |
1125 |
1800 |
750 |
30 |
1*3 |
3.5 |
MP1000 |
1500 |
2400 |
1000 |
37 |
2*2 |
5.5 |
MP1500 |
2250 |
3600 |
1500 |
55 |
2*2 |
6.5 |
MP2000 |
3000 |
4800 |
2000 |
75 |
3*2 |
8.5 |
MP2500 |
3750 |
6000 |
2500 |
90 |
3*3 |
10.5 |
MP3000 |
4500 |
7200 |
3000 |
110 |
3*3 |
11 |
Excellent Mixing Performance |
|
The rotated direction of mixing star is reversed with the revolution direction and each mixing star’s direction is also different. The circulation movement and convective movement make the material severely mixing |
Observing Port |
|
Observing port is set on the maintaining door to observe the mixing status in the mixer power state. |
Discharing Device |
|
The door can open in three different angles to satisfy different discharging rate |
Mixing Device |
|
Depending on the reasonable design of the mixing blades, it is more efficient than the traditional type of concrete mixers. It can save 15-20% time to finish the mixing under the same requirement and condition. |
Spray Head |
|
According to the requirement of different filed application, you can choose different way of water spray |
High Pressure Cleaning System |
|
Automatic high pressure cleaning system saves a lot of time on cleaning. Also, it has higher performance than traditional type. |

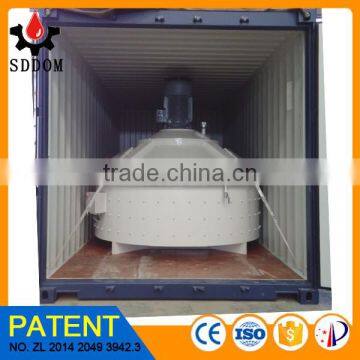

Packing and Shipping |
About US |
SDDOM Our company is developing rapidly now. We have made CE certification qualification. We have clients all over the world, such as Lithuania, Russia, Australia, Singapore, Belarus, Mozambique, Philippines etc, and won the trust of the customers with high quality and good reputation. |
Welcome to Visit our facotry |
contact us |
