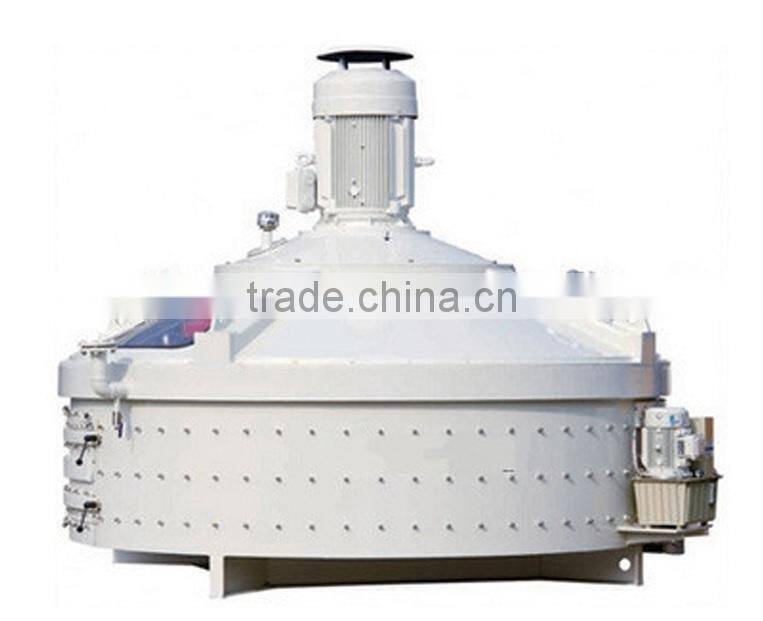

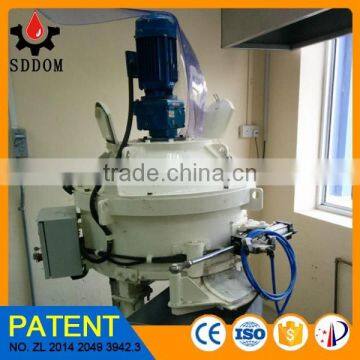

MP2000 small pan mixer concrete mixer philippines for sale
The planetary mixers with vertical shafts allow the rapid mixing of all types of quality concrete (dry, semi-dry and plastic). The great versatility of the mixer enables it to be used not only in the production of concrete, but also in the mixing of materials for the production of glass, ceramics, refractory materials, etc.
The gearbox unit( patent technology), specially designed for a balanced distribution of power to the various mixing device, ensures a low-noise rotation with backlash even under severe working conditions. Compared with traditional gearbox, this unit takes less space, and the mixer can enlarge 30%.
Equipped with a mechanical coupling and a hydraulic coupling (option), which can protect the transmission devices from overloads and impacts.
Ni-hard cast iron blades are more wearable. As an alternative, we also offer polyurethane blades for special requirements.
According to different materials, the liners and tiles can be cast-iron, HARDOX steel plate (Sweden original) or hard facing materials.
From optional model selection to customized mixer for special application situation, we also can offer a full range of technical support and maintenance services.
| Item | MP50 | MP100 | MP250 | MP330 | MP500 | MP750 | MP1000 | MP1500 | MP2000 | MP2500 | MP3000 |
| Filling Volume(L) | 75 | 150 | 375 | 525 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 |
| Feeding Capacity(Kg) | 120 | 240 | 600 | 790 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 |
| Compacted Concrete(L) | 20 | 100 | 250 | 330 | 500 | 750 | 100 | 1500 | 2000 | 2500 | 3000 |
| Mixing Power(Kw) | 3 | 5.5 | 11 | 15 | 18.5 | 30 | 37 | 55 | 75 | 90 | 110 |
| Mixing Star*Mixing Blade(Qty) | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 3*2 | 3*3 | 3*3 |
| Side Scraper/Discgarge Scraper(Qty) | 1/- | 1/- | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/2 | 1/2 | 1/2 |
| Discgarging Power(Kw) | Pneumatic Discharging/Hydraulic Discharging | 3 | 3 | 4 | 4 | 4 | |||||
| Weight(Kg) | 700 | 1000 | 1800 | 2200 | 2500 | 3500 | 5500 | 6500 | 8500 | 10500 | 11000 |

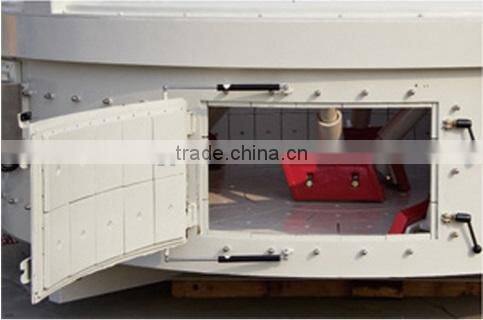

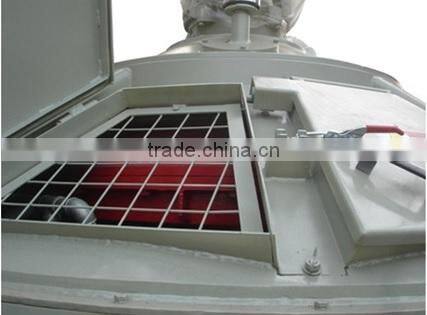

Maintenance Access
Large access facility is for easy maintenance and cleaning. The key-operated safety switch guarantees the motor cannot be powered with cover open.

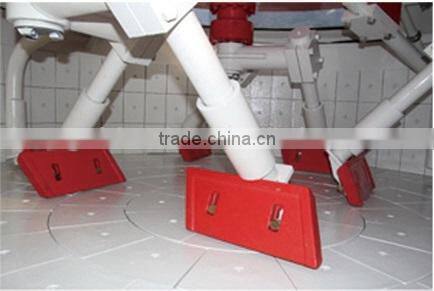

Mixing Device
Special designed mixing facility makes the mixing faster and more homogeneous, no material heaped.

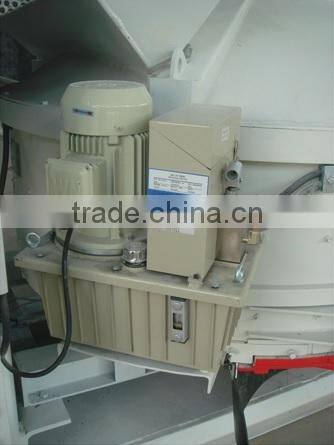

Hydraulic Unit
Hydraulic unit equipped with manual pump allows the door be opened in case of electric failure.

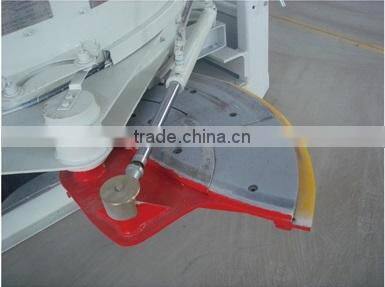

Discharging Door
The discharging door is equipped with limit switches, which can be opened at any angle. Maximun three discharging doors are available.

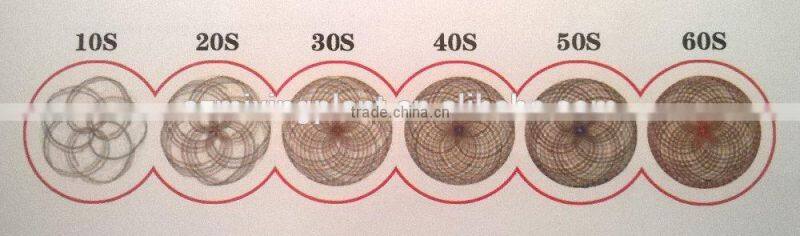

Mixing Locus Diagrams
This diagrams show the perfect mixing action of the DOM planetary mixer from 6 to 60 seconds after material is added. Note that the floor is completely swept by the mixing stars’ action every 4 revolutions (6 seconds) and that each zone is covered at regular intervals in time.
If you have any further questions please contact us.
