Wide storing capacity range30T-150Tcement silo for sale with factory steel silo cost

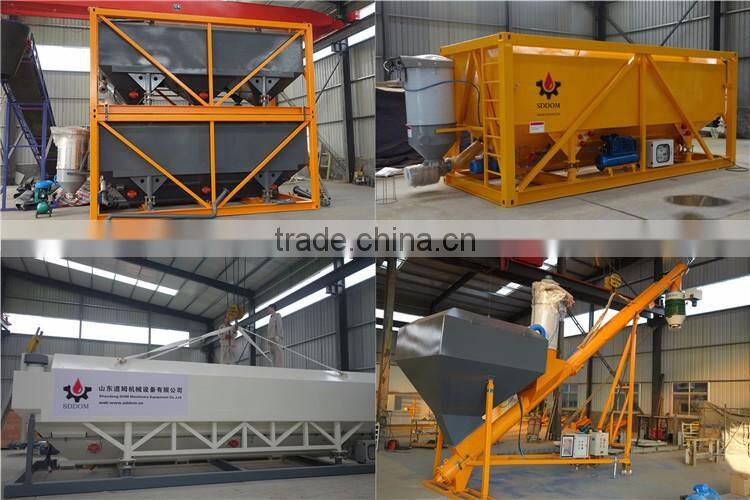

Horizontal Cement Silo
Advantages:
1. Steel material , anti-rust and anti-corrosion, waterproof and moisture-proof. Long working service life
2. High reliable working performance and easy to move
3. Leading professional designer and manufacturer
4. We accept customized order, can design and manufacture according to customer's special requirement.
Introduction of main parts
1. Pneumatic Pinch Valve
| Environment temperature | -20℃ ~ +80℃ |
| Working pressure | 3.5bar |
| Weight functions | 10.2kg |
| Functions | 1. prevent the moist air to come into silo 2. prevent the backflow of cement 3. According to the pressure open and shut down automatically,so it can make sure the safety. |
| Tube material | Natural rubber |

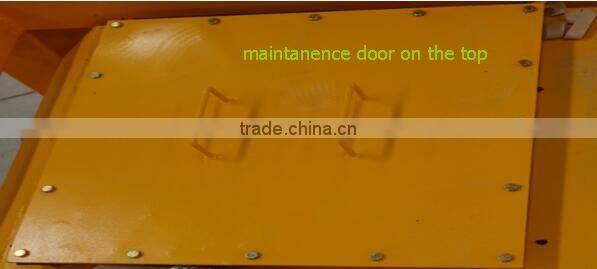

2. Maintance hole
maintenance door on the top
3. Dust collector
Type : Air jet type Filtration area :22m3
Filtration efficiency:>99.9% Wind capacity : >1500m3/h

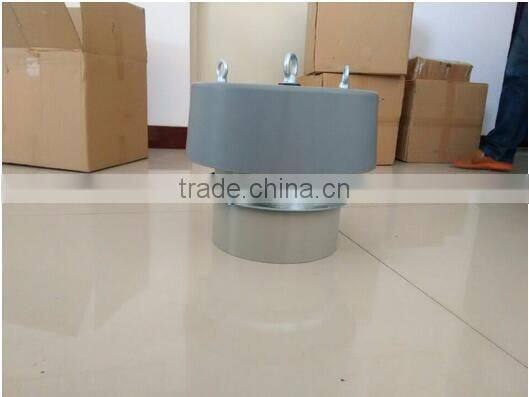

4. Pressure relief valve
Function: Ensure the balance of pressure inside and outside of silo.
When feeding cement into silo, discharging cement from silo, the pressure inside will be changed rapidly. Safety valve will be opened automatically When the pressure is increased or decreased, after the pressure is balanced, the safety valve will be closed automatically.
Positive pressure: 280 to 1000mm H2o 1 mmH2O=9.80665 Pa
Negative pressure: -20 to -120 mmH2o

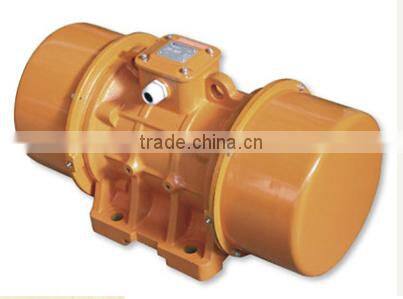

5. Vibrator
There are six vibrators on the silo.
Cement is easy to harden in the silo, vibrator will break the harden part of cement, ensure the work of cement silo.
6. Level Display Sensor
Level display sensor is on the leg, it can tell you how many cement left in the silo. You can decide when to feed cement.
7. Conveyor
The horizontal screw conveyor will convey cement out of silo.
Diameter:219mm Capacity:0 degree 45t/h
Slant screw conveyor(optional)
It will connect with horizontal screw conveyor, convey cement into mixer or other equipments. The slanting screw conveyor is not included in the quotation, its length need to be confirmed by your project.
8. SIEMENS/Schneider Control cabinet
The electric parts is SIEMENS/Schneider.
Indicator light
Indicator lights will tell you the working condition of cement silo.
Alarm when the cement is full/empty.
Alarm when there is something emergency.
9. Air compressor (Power:2.2 KW)
Supply power to pneumatic butterfly valve, air jet dust collector.
Taian Shizhe Trading Company established in 2011 is engaged in import and export trading. It is the international trading department of Shandong DOM Machinery Equipment Co., Ltd. We mainly conduct business including domestic and foreign trading, such as concrete mixing plant, concrete mixers, Chinese-foreign cooperative producing, and entrecote trading. Our manufacture mainly produces concrete batching plant, asphalt plant, brick production line and related equipments of construction. Concrete mixer, screw conveyor, cement silo and accessories have always been our hottest products for export. Besides, the small concrete tools such as concrete vibrator, concrete vibratory screed, tamping rammer, plate compactor, concrete cutter also belong to hot product. Besides, we purchase kinds of products in China for our customers.
