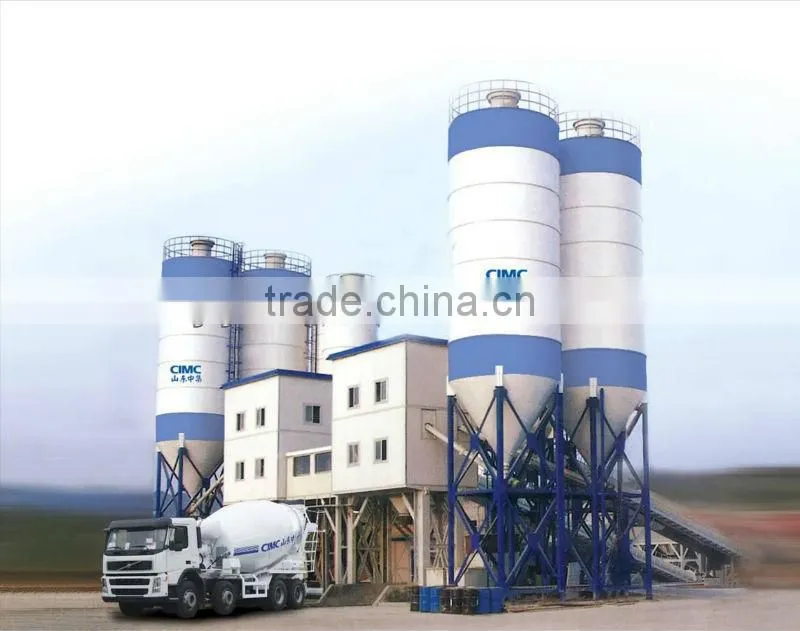

concrete batch plant concrete mixing station HZS25
Main Technical Parameters of Concrete mixing station HZS25:
Model |
HZS25 |
HZS40 |
HZS50 |
HZS75 |
|
Theoretical Output Rate (m3/h) |
25 |
40 |
50 |
75 |
|
Mixer |
Model |
JS500 |
JS750 |
JS1000 |
JS1500 |
Power(kw) |
18.5 |
30 |
18.5×2 |
30×2 |
|
Discharging Capacity |
0.5 |
0.75 |
1 |
1.5 |
|
Production Cycle(s) |
72 |
72 |
72 |
72 |
|
Capacity of Aggregate Storage Bin m3 |
3×4 |
3×4.5 |
3×8 |
3×8 |
|
Measuring Accuracy % |
Aggregate |
±2 |
±2 |
±2 |
±2 |
Cement |
±1 |
±1 |
±1 |
±1 |
|
Water |
±1 |
±1 |
±1 |
±1 |
|
Additive |
±1 |
±1 |
±1 |
±1 |
|
Coal Ash |
±1 |
±1 |
±1 |
±1 |
|
Matching Cement Bin |
SNC50 |
SNC100 |
SNC100 |
SNC100 |
|
Matching Cement Screw Conveyor |
LSJ40 |
LSJ40 |
LSJ40 |
LSJ80 |
|
Matching Coal Ash |
SNC50 |
SNC100 |
SNC100 |
SNC100 |
|
Matching Coal Ash Screw Conveyor |
LSJ40 |
LSJ40 |
LSJ40 |
LSJ40 |
|
Discharge Height( m) |
3.8 |
3.8 |
3.8 |
3.8 |
|
*We can customize according to your requirements.
Technical Parameter of Matched Cement Silo/Bin:
Model |
Tanker Diameter |
Tanker Height |
Tanker Total Height |
Matched Mixer |
Matched Screw Conveyor |
SNC30 |
3m |
4.8m |
11.4m |
|
|
SNC50 |
3m |
5.4m |
12m |
JS500 |
219 |
SNC80 |
3m |
9m |
15.6m |
JS750 |
219/273 |
SNC100 |
3m |
11.4m |
18m |
JS1000/2000 |
219/273 |
Technical Parameter of Matched Screw Conveyor:
Model |
Output Rate |
Speed of Screw Shaft |
Motor Power |
Rotating Speed of Motor |
Diameter |
Screw Pitch |
Conveying Length |
LSJ20 |
20t/h |
204rpm |
2.2-5.5kw |
1440rpm |
168mm |
112-150mm |
3-13m |
LSJ40 |
40t/h |
204rpm |
5.5-11kw |
1440rpm |
219mm |
133-200mm |
4-12m |
LSJ80 |
80t/h |
204rpm |
11-18.5kw |
1440rpm |
273mm |
166-250mm |
4-12m |
LSJ120 |
120t/h |
143rpm |
15-22kw |
1440rpm |
325mm |
200-300mm |
6-11m |
Features of Concrete mixing Plant:
1. The concrete batching plant is a large-scale concrete mixing equipment, combining material storage, measurement and mixing, with high output.
The equipment, which adopts forced mixer with double horizontal shafts as its matching principal machine with 3.8m concrete unloading height, can mix all kinds of concrete, especially hard concrete
2. Applicable for projects of architectures, water and electricity, highways, ports, docks and bridges in medium scale as well as large-and-medium scale preformed unit plants and concrete manufacturing plants.
3. Microcomputer control and electronic scale weighing guarantee high measuring accuracy and small error.
4. Functions include screen display, batching storage, automatic gap compensation and manual system which makes manual and automatic control available in mixing process.
5.equipped with printing system and can be installed with monitoring system according to user demand to realize concentrated control and integral management of the entire equipment.
We also supply concrete mixer, concrete batching/mixing plant, Concrete Mixing Station, Concrete batching machine, screw conveyor, cement silo, if you are interested in our products, welcome to enquire

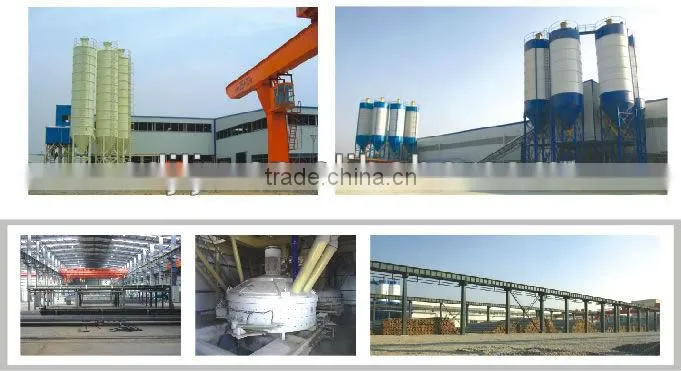

Welcome to our factory

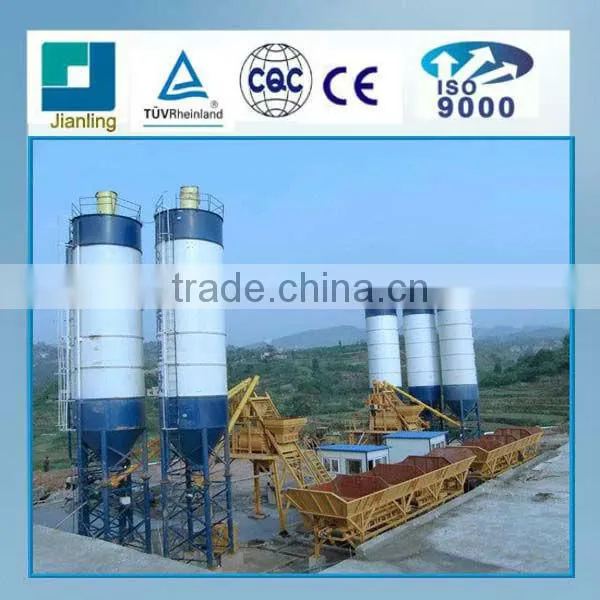

Certificate:
