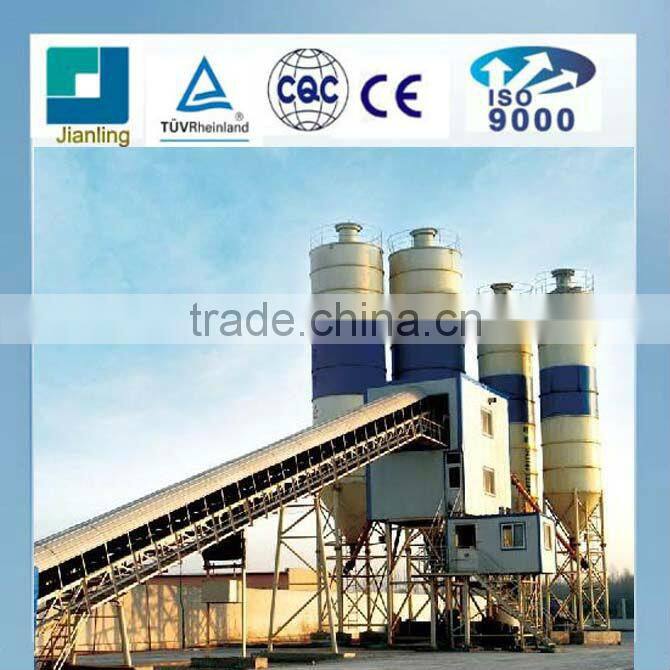

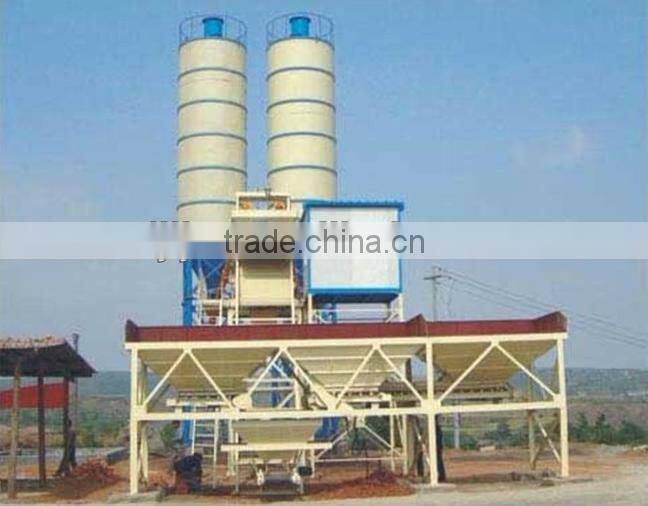

HZS50 concrete mixing plant
Features of concrete mixing plant
1. HZS50 is a large-scale concrete mixing equipment, combining material storage, measurement and mixing, with high output.
Can mix all kinds of concrete, especially hard concrete
2. Applicable for projects of architectures, water and electricity, highways, ports, docks and bridges in medium scale as well as large-and-medium scale preformed unit plants and concrete manufacturing plants.
3. Microcomputer control and electronic scale weighing guarantee high measuring accuracy and small error.
4. Functions include screen display, batching storage, automatic gap compensation and manual system which makes manual and automatic control available in mixing process.
Main Technical Parameters of HZS50 concrete mixing plant:
Model |
HZS25 |
HZS40 |
HZS50 |
HZS75 |
|
Theoretical Output Rate (m3/h) |
25 |
40 |
50 |
75 |
|
Mixer |
Model |
JS500 |
JS750 |
JS1000 |
JS1500 |
Power(kw) |
18.5 |
30 |
18.5×2 |
30×2 |
|
Discharging Capacity |
0.5 |
0.75 |
1 |
1.5 |
|
Production Cycle(s) |
72 |
72 |
72 |
72 |
|
Capacity of Aggregate Storage Bin m3 |
3×4 |
3×4.5 |
3×8 |
3×8 |
|
Measuring Accuracy % |
Aggregate |
±2 |
±2 |
±2 |
±2 |
Cement |
±1 |
±1 |
±1 |
±1 |
|
Water |
±1 |
±1 |
±1 |
±1 |
|
Additive |
±1 |
±1 |
±1 |
±1 |
|
Coal Ash |
±1 |
±1 |
±1 |
±1 |
|
Matching Cement Bin |
SNC50 |
SNC100 |
SNC100 |
SNC100 |
|
Matching Cement Screw Conveyor |
LSJ40 |
LSJ40 |
LSJ40 |
LSJ80 |
|
Matching Coal Ash |
SNC50 |
SNC100 |
SNC100 |
SNC100 |
|
Matching Coal Ash Screw Conveyor |
LSJ40 |
LSJ40 |
LSJ40 |
LSJ40 |
|
Discharge Height( m) |
3.8 |
3.8 |
3.8 |
3.8 |
|
Technical Parameter of Matched Cement Silo/Bin:
Model |
Tanker Diameter |
Tanker Height |
Tanker Total Height |
Matched Mixer |
Matched Screw Conveyor |
SNC80 |
3m |
9m |
15.6m |
JS750 |
219/273 |
SNC100 |
3m |
11.4m |
18m |
JS1000/2000 |
219/273 |
SNC150 |
3.3m |
23.5m |
29m |
JS1500 |
273/325 |
SNC200 |
4.5m |
18.6m |
25.2m |
JS2000/3000 |
325 |
Technical Parameter of Matched Screw Conveyor:
Model |
Output Rate |
Speed of Screw Shaft |
Motor Power |
Rotating Speed of Motor |
Diameter |
Screw Pitch |
Conveying Length |
LSJ20 |
20t/h |
204rpm |
2.2-5.5kw |
1440rpm |
168mm |
112-150mm |
3-13m |
LSJ40 |
40t/h |
204rpm |
5.5-11kw |
1440rpm |
219mm |
133-200mm |
4-12m |
LSJ80 |
80t/h |
204rpm |
11-18.5kw |
1440rpm |
273mm |
166-250mm |
4-12m |
LSJ120 |
120t/h |
143rpm |
15-22kw |
1440rpm |
325mm |
200-300mm |
6-11m |
We also supply concrete mixer, concrete batching/mixing plant, Concrete Mixing Station, Concrete batching machine, screw conveyor, cement silo.
Our Advantages:
1. Trade directly with factory who has over 20 years' history.
2. Professional team.
Perfect quality.
Perfect service idea.
3. Competitive price.
4. Best manufacturer in jinan China.
5. We accept all kinds of payment & trade terms.
6. with advanced technology and prompt service, we build long business with world customers, such as Canada,Poland,Russia,Kazakhstan, Azerbaijan ,
Canada,Poland,Russia,Kazakhstan, Azerbaijan, Mongolia, Saudi Arabia, UAE, Yemen, Algeria, Malaysia, Indonesia, Philippines. Etc.we have good experience
Complete after-sale service system
1.Warranty:1 year.
2.Eengineer is available to service abroad.
2.In the overall process,provide installation instruction and debugging for customers and train operating staff free of charge.
3.Techincal assistance is avaible in 24 hours.
if you are interested in our products, welcome toenquire.
