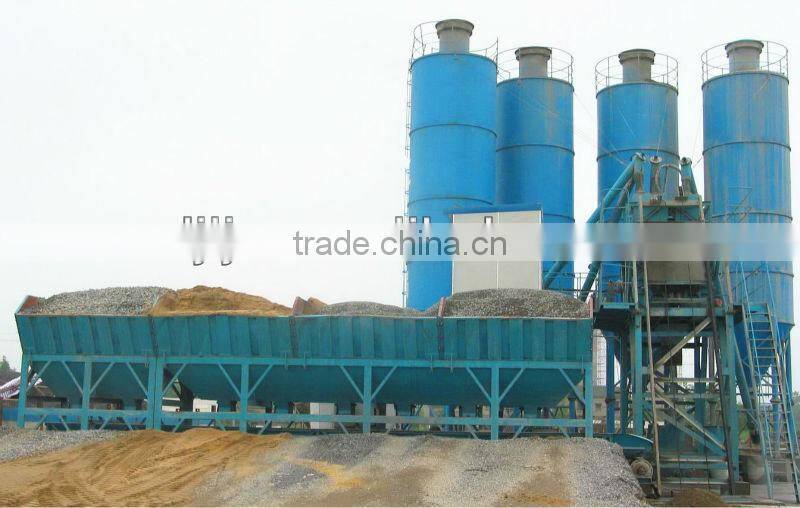

Concrete Batching Plant HZS75
Features of concrete batching plant
1. The concrete batching plant is a large-scale concrete mixing equipment, combining material storage, measurement and mixing, with high output.

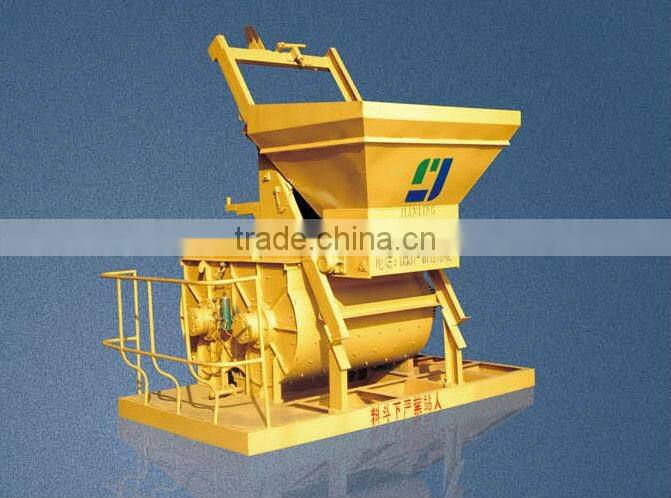

The equipment, which adopts forced mixer with double horizontal shafts as its matching principal machine with 3.8m concrete unloading height, can mix all kinds of concrete, especially hard concrete
2. Applicable for projects of architectures, water and electricity, highways, ports, docks and bridges in medium scale as well as large-and-medium scale preformed unit plants and concrete manufacturing plants.
3. Microcomputer control and electronic scale weighing guarantee high measuring accuracy and small error.
4. Functions include screen display, batching storage, automatic gap compensation and manual system which makes manual and automatic control available in mixing process.
In addition, the equipment is equipped with printing system and can be installed with monitoring system according to user demand to realize concentrated control and integral management of the entire equipment.
Main Technical Parameters of concrete batching plant
Model |
HZS25 |
HZS40 |
HZS50 |
HZS75 |
|
Theoretical Output Rate (m3/h) |
25 |
40 |
50 |
75 |
|
Mixer |
Model |
JS500 |
JS750 |
JS1000 |
JS1500 |
Power(kw) |
18.5 |
30 |
18.5×2 |
30×2 |
|
Discharging Capacity |
0.5 |
0.75 |
1 |
1.5 |
|
Production Cycle(s) |
72 |
72 |
72 |
72 |
|
Capacity of Aggregate Storage Bin m3 |
3×4 |
3×4.5 |
3×8 |
3×8 |
|
Measuring Accuracy % |
Aggregate |
±2 |
±2 |
±2 |
±2 |
Cement |
±1 |
±1 |
±1 |
±1 |
|
Water |
±1 |
±1 |
±1 |
±1 |
|
Additive |
±1 |
±1 |
±1 |
±1 |
|
Coal Ash |
±1 |
±1 |
±1 |
±1 |
|
Matched Cement Bin |
SNC50 |
SNC100 |
SNC100 |
SNC100 |
|
Matched Cement Screw Conveyor |
LSJ40 |
LSJ40 |
LSJ40 |
LSJ80 |
|
Matched Coal Ash |
SNC50 |
SNC100 |
SNC100 |
SNC100 |
|
Matched Coal Ash Screw Conveyor |
LSJ40 |
LSJ40 |
LSJ40 |
LSJ40 |
|
Discharge Height( m) |
3.8 |
3.8 |
3.8 |
3.8 |
|
Item Description
1)principle mixer
2) concrete batching machine
3)Measuring system (water,additive,cement)
4)Operation room
5)cement silo
6) screw conveyor
7) Accessories, tools, etc
Our Advantages:
1. Trade directly with factory who has over 20 years' history.
2. Professional team.
Perfect quality.
Perfect service idea.
3. Competitive price.
4. Best manufacturer in jinan China.
5. We accept all kinds of payment & trade terms.
6. with advanced technology and prompt service, we build long business with world customers, such as Canada,Poland,Russia,Kazakhstan, Azerbaijan ,
Canada,Poland,Russia,Kazakhstan, Azerbaijan, Mongolia, Saudi Arabia, UAE, Yemen, Algeria, Malaysia, Indonesia, Philippines. Etc.we have good experience in servicing customers abroad.
Complete after-sale service system
1.Warranty:1 year.
2.Eengineer is available to service abroad.
2.In the overall process,provide installation instruction and debugging for customers and train operating staff free of charge.
3.Techincal assistance is avaible in 24 hours.
*We can customize according to your requirements, welcome to enquire.

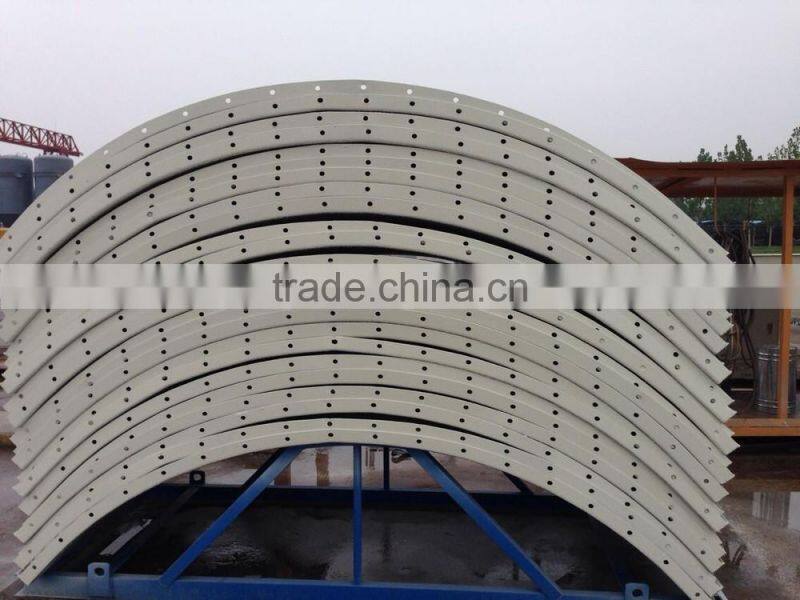

Technical Parameter of Matched Cement Silo/Bin:
Model |
Tanker Diameter |
Tanker Height |
Tanker Total Height |
Matched Mixer |
Matched Screw Conveyor |
SNC30 |
3m |
4.8m |
11.4m |
|
|
SNC50 |
3m |
5.4m |
12m |
JS500 |
219 |
SNC80 |
3m |
9m |
15.6m |
JS750 |
219/273 |
SNC100 |
3m |
11.4m |
18m |
JS1000/2000 |
219/273 |
SNC150 |
3.3m |
23.5m |
29m |
JS1500 |
273/325 |
SNC200 |
4.5m |
18.6m |
25.2m |
JS2000/3000 |
325 |
Technical Parameter of Matched Screw Conveyor:
Model |
Output Rate |
Speed of Screw Shaft |
Motor Power |
Rotating Speed of Motor |
Diameter |
Screw Pitch |
Conveying Length |
LSJ20 |
20t/h |
204rpm |
2.2-5.5kw |
1440rpm |
168mm |
112-150mm |
3-13m |
LSJ40 |
40t/h |
204rpm |
5.5-11kw |
1440rpm |
219mm |
133-200mm |
4-12m |
LSJ80 |
80t/h |
204rpm |
11-18.5kw |
1440rpm |
273mm |
166-250mm |
4-12m |
LSJ120 |
120t/h |
143rpm |
15-22kw |
1440rpm |
325mm |
200-300mm |
6-11m |
We also supply concrete batching/mixing plant, Concrete Mixing Station, Concrete batching machine, screw conveyor, cement silo, if you are interested in our products, please do not hesitate to contact us, we will offer the best quality and the most competitive price to you, thanks.
Shandong Jianling Machinery Co., Ltd.
has more than 25 years of production experience. The Company seeks survival with quality and promotes development with science and technology. The Company has developed successively a wide range of concrete machinery and road construction machinery since it’s establishment and now it is one of the Chinese enterprises with complete types, advanced technology and strong capacity in producing complete sets of concrete batching, mixing and conveying machinery and road construction machinery.
