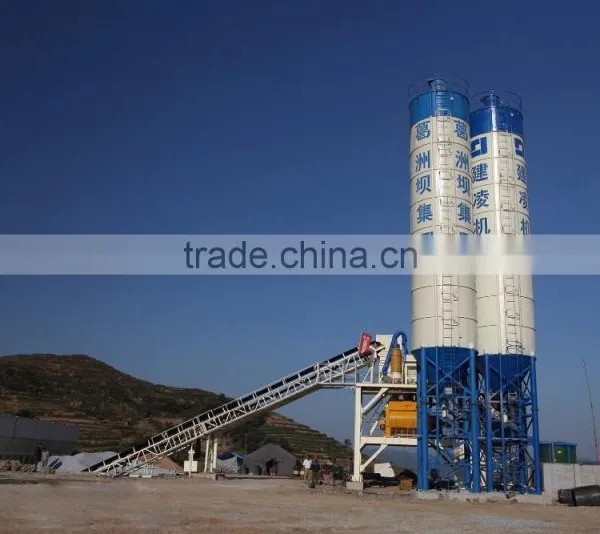

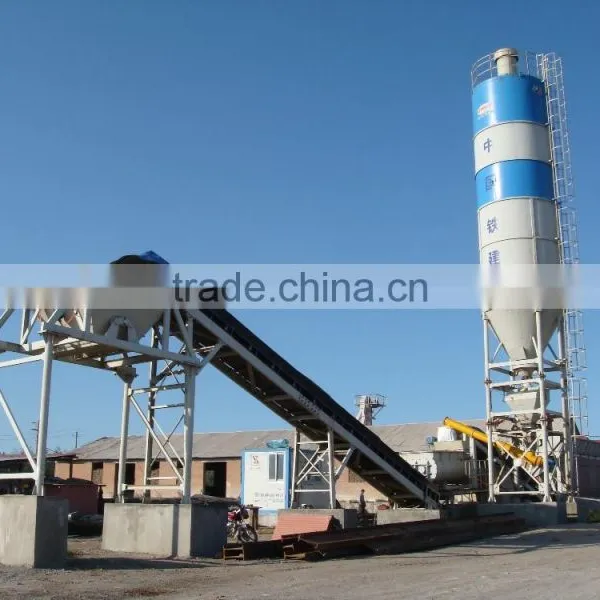

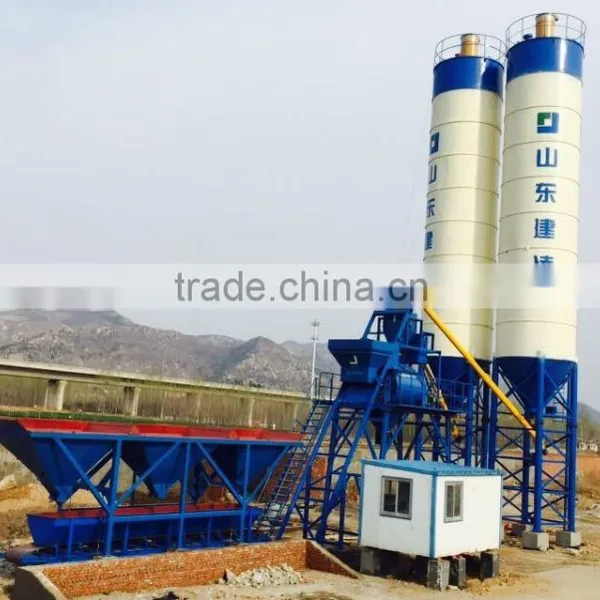

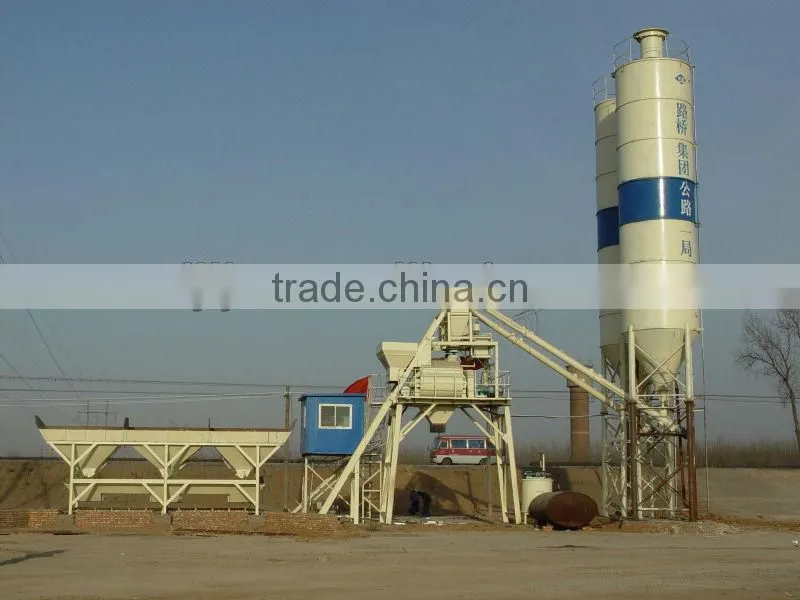

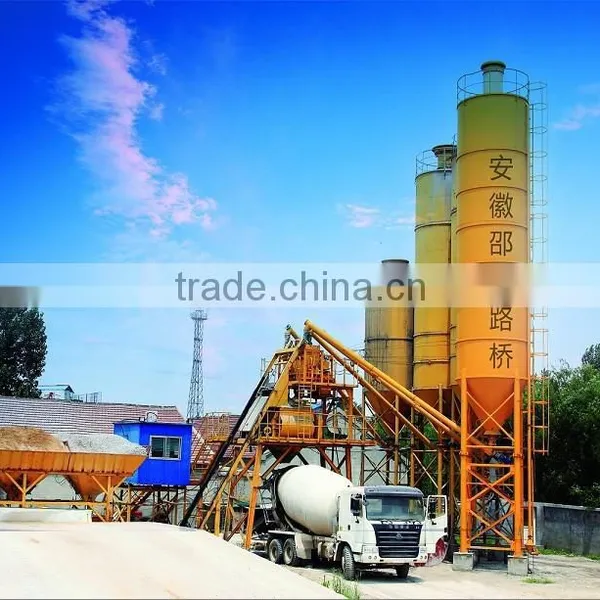

HZS50 Factory Supply 50m3/h Skip Type
Concrete Batch Plant
Concrete Batch Plant Features:
1. The concrete batching plant / Concrete Mixing Plant is a large-scale concrete mixing
equipment, combining material storage, measurement and mixing, with high output.
The equipment, which adopts forced mixer with double horizontal shafts as its matching
principal machine with 3.8m concrete unloading height, can mix all kinds of concrete,
especially hard concrete
2. Applicable for projects of architectures, water and electricity, highways, ports, docks and
bridges in medium scale as well as large-and-medium scale preformed unit plants and
concrete manufacturing plants.
3. Computer control and electronic scale weighing guarantee high measuring accuracy and
small error.
4. Functions include screen display, batching storage, automatic gap compensation and
manual system which makes manual and automatic control available in mixing process.
Main Technical Parameters of Concrete Batch Plant :
Model |
HZS25 |
HZS40 |
HZS50 |
HZS75 |
|
Theoretical Output Rate (m3/h) |
25 |
40 |
50 |
75 |
|
Mixer |
Model |
JS500 |
JS750 |
JS1000 |
JS1500 |
Power(kw) |
18.5 |
30 |
18.5×2 |
30×2 |
|
Discharging Capacity |
0.5 |
0.75 |
1 |
1.5 |
|
Production Cycle(s) |
72 |
72 |
72 |
72 |
|
Capacity of Aggregate Storage Bin m3 |
3×4 |
3×4.5 |
3×8 |
3×8 |
|
Measuring Accuracy % |
Aggregate |
±2 |
±2 |
±2 |
±2 |
Cement |
±1 |
±1 |
±1 |
±1 |
|
Water |
±1 |
±1 |
±1 |
±1 |
|
Additive |
±1 |
±1 |
±1 |
±1 |
|
Coal Ash |
±1 |
±1 |
±1 |
±1 |
|
Matching Cement Bin |
SNC50 |
SNC100 |
SNC100 |
SNC100 |
|
Matching Cement Screw Conveyor |
LSJ40 |
LSJ40 |
LSJ40 |
LSJ80 |
|
Matching Coal Ash |
SNC50 |
SNC100 |
SNC100 |
SNC100 |
|
Matching Coal Ash Screw Conveyor |
LSJ40 |
LSJ40 |
LSJ40 |
LSJ40 |
|
Discharge Height( m) |
3.8 |
3.8 |
3.8 |
3.8 |
|
After-sale service:
1.Warranty:1 year
2.Eengineer is available to service abroad.
3.Techincal assistance is avaible in 24 hours.
HZS Concrete Making Machine concrete agitation plant

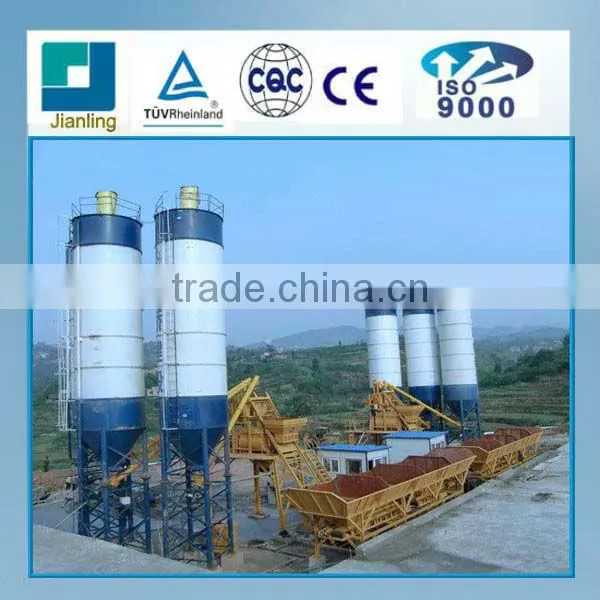

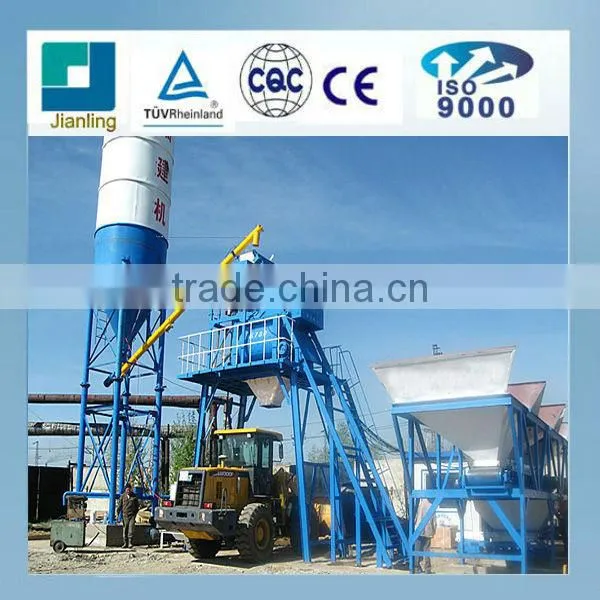

Certificates
