Webbing Tape Belt Jacquard Machine M:0086 15163879588 Email:alice@ropeking.com

Webbing Tape Belt Jacquard Machine M:0086 15163879588 Email:alice@ropeking.com thumbnail-1
Webbing Tape Belt Jacquard Machine M:0086 15163879588 Email:alice@ropeking.com photo-1
US$ 100 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, webbing machine
Application:
tap,webbing belt,ribbon,
Contact Supplier Request Quote Chat Now
Shandong Rope Net Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, webbing machine
Application tap,webbing belt,ribbon,
Production Capacity 100%
Place of Origin Shandong, China
Brand Name ROPE NET
Model Number RM0015
Dimension(L*W*H) 2460*1700*2200mm
Weight 890kg
Power(W) 3.0kw
Certification ISO9001,CE
Warranty 1 YEAR
After-sales Service Provided Engineers available to service machinery overseas



Ideal for weaving

  • Zipper Tapes
  • Shoe Laces
  • P. P. Tapes
  • Zari Tapes
  • Elastic Tapes
  • Fiber Glass Tapes
  • Cotton Tapes / Niwar
  • Hdpe Monofilament Niwar
  • Thick Nylon Webbing
  • Cargo Lifting Tapes
  • Safety Belt
  • School Belt

Advantage



  • High Efficiency.
  • Best quality weaving.
  • Weft knitting system.
  • Easy setting.
  • Single and Double section Design (Optional).
  • Shading Mechanism - chain operated.
  • Heavy Duty Take-off roller system.
  • Positively controlled weft feed, with tension device.
  • Weft locking device (Optional).
  • Electric stop motion for - weft breakage & fabric anti-wrap.
    Electric stop motion for - warp breakage (optional).
  • Instant stopping through heavy duty brake application.
  • Easy pick setting through change gears.
  • Central lubrication System.
  • Adjustable motor pulley for easy speed adjustment.
  • Tension frame for warp thread included.

 Scope of supply :-



1). Tool Box



 2). Beam Stand



 3). Change Gear Set.

Technical Parameter

Models

 Tapes

 Tape Width (in mm)

 Heald Frame

 Pick Repeat

  Motor

MAX.R.P.M.

RM 2/110

2

110

12--16

8-48

1.5HP

1400

RM 2/160

2

160

12--16

8-48

1.5HP

1400

RM 4/65

4

65

12--16

8-48

1.5HP

1400

RM 4/80

4

80

12--16

8--48

1.5HP

1200

RM 6/45

6

45

12--16

8-48

1.5HP

1400

RM 6/55

6

55

12--16

8-48

1.5HP

1400

RM 8/30

8

30

12--16

8-48

1.5HP

1400

RM 8/35

8

35

12--16

8-48

1.5HP

1400

RM 10/25

10

25

12--16

8-48

1.5HP

1400

RMD 8/30

16

30

12--16

8-40

1.5HP

1400

RMD 10/25

20

25

12--16

8-40

1.5HP

1400

RMD 12/20

24

20

12--16

8-40

1.5HP

1400

RM 12/20

12

20

12--16

48

1.5HP

1400

RM 8/55

8

55

12--16

8-48

2HP

1200

RM 10/45

10

45

12--16

8-48

2HP

1200

RM12/30

12

30

12--16

8-48

2HP

1200

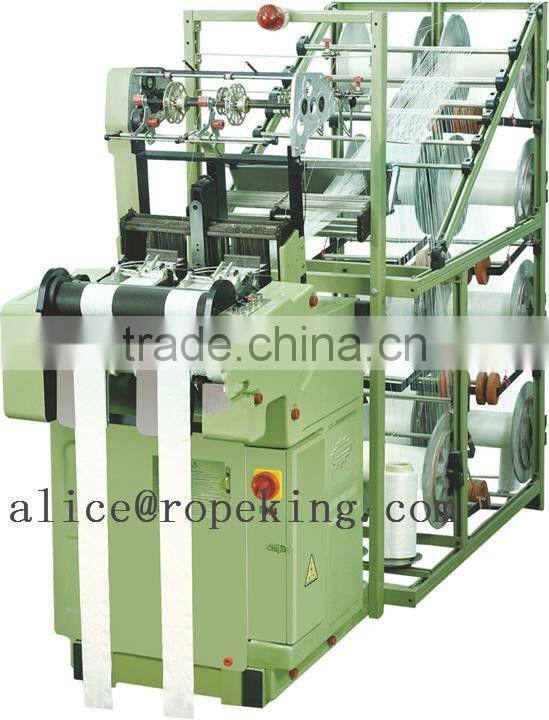

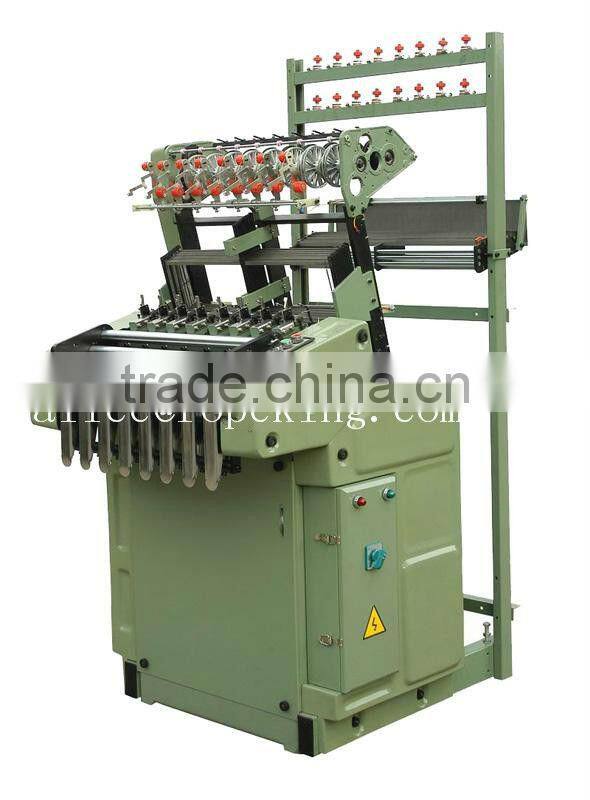

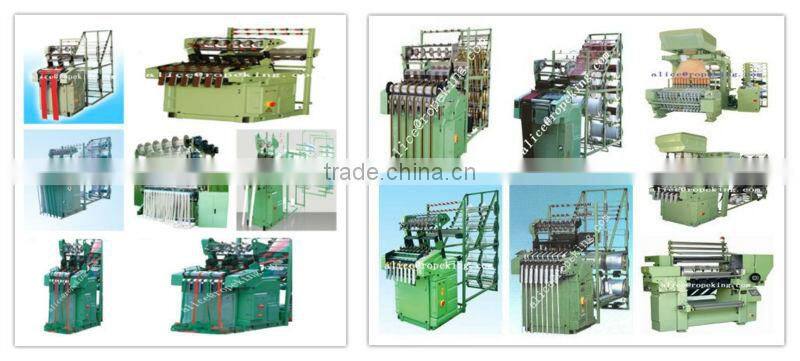

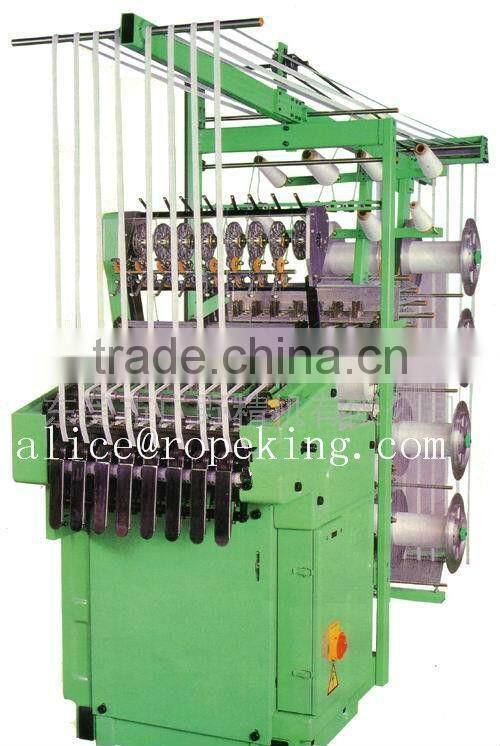

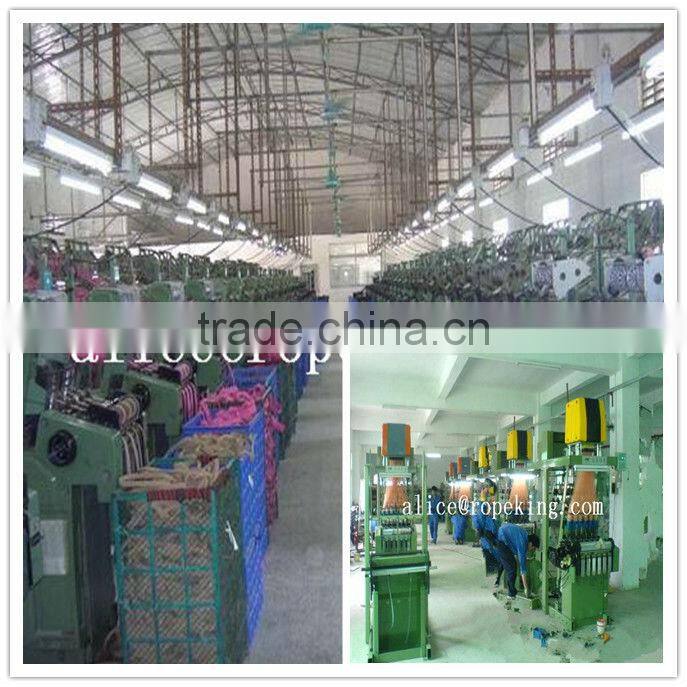

Machine Picture



webbing tape belt jacquard machine M:0086 15163879588 email:alice@ropeking.comwebbing tape belt jacquard machine M:0086 15163879588 email:alice@ropeking.comwebbing tape belt jacquard machine M:0086 15163879588 email:alice@ropeking.comwebbing tape belt jacquard machine M:0086 15163879588 email:alice@ropeking.com

  webbing tape belt jacquard machine M:0086 15163879588 email:alice@ropeking.com

webbing tape belt jacquard machine M:0086 15163879588 email:alice@ropeking.comwebbing tape belt jacquard machine M:0086 15163879588 email:alice@ropeking.com

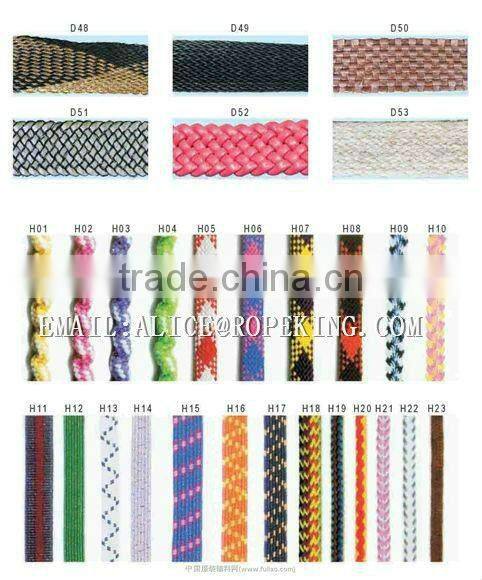

Product Picture



webbing tape belt jacquard machine M:0086 15163879588 email:alice@ropeking.comwebbing tape belt jacquard machine M:0086 15163879588 email:alice@ropeking.com

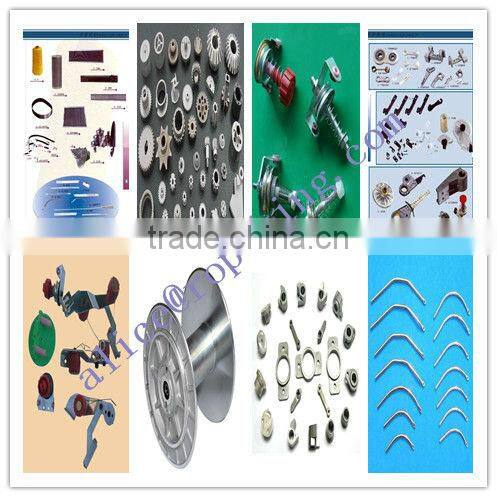

Accessories

webbing tape belt jacquard machine M:0086 15163879588 email:alice@ropeking.com

Company Profile

Shandong Rope Net Machinery Co.,Ltd,we are manufacturer of kinds of extruders,ring twister,rope making machine,webbing  machine ,rope packing machines , We have gain the ISO9001:2000 certification



Our rope and webbing machinery products are mainly exported to the whole world,we have professional engineer to your configuration for your equipment, our professional and technical personnel to help you produce high quality products

 webbing tape belt jacquard machine M:0086 15163879588 email:alice@ropeking.com

Our Team



webbing tape belt jacquard machine M:0086 15163879588 email:alice@ropeking.com

Certificate

webbing tape belt jacquard machine M:0086 15163879588 email:alice@ropeking.com

Question



The machines will be made as your requirements. We are appreciated if you can provide the information as follows:



 1:What's your webbing size you want to make?



2:What's purpose?



3:What's the  voltage in your country?



Our Service

 1.Installation Services


Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.



 2.Clients Traning Services


We can train your staff to use your equipment systems properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.



3.After Sales Service



We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.



In one words,your satisfication is our persuit forever!
