Rope
Braided ropes are generally made from nylon, polyester, polypropylene or high performance fibers such as high modulus polyethylene (HMPE) and aramid. Nylon is chosen for its strength and elastic stretch properties. However, nylon absorbs water and is 10-15% weaker when wet. Polyester is about 90% as strong as nylon but stretches less under load and is not affected by water. It has somewhat better UV resistance, and is more abrasion resistant. Polypropylene is preferred for low cost and light weight (it floats on water) but it has limited resistance to light, is susceptible to friction and has a poor heat resistance.
Braided ropes (and objects like garden hoses, fibre optic or coaxialcables, etc.) that have no lay (or inherent twist) uncoil better if each alternate loop is twisted in the opposite direction, such as in figure-eight coils, where the twist reverses regularly and essentially cancels out.
Rope Machine
Circular Knitting Machine
| Model | Rope Size Range | Bobbin Size | Speed | Heads |
| RMBM-90-16 | 1-8MM | ∅47×140MM | 330RPM | 4 |
| RMBM-90-24 | 2-8MM | 2 | ||
| RMBM-90-32 | 3-10MM | 2 | ||
| RMBM-110-16 | 1-10MM | ∅65×140MM | 330RPM | 2 |
| RMBM-110-24 | 2-10MM | 1 | ||
| RMBM-110-32 | 3-10MM | 1 | ||
| RMBM-130-16 | 4-14MM | ∅70×140MM | 270RPM | 2 |
| RMBM-130-24 | 4-14MM | 1 | ||
| RMBM-130-32 | 6-16MM | 1 |

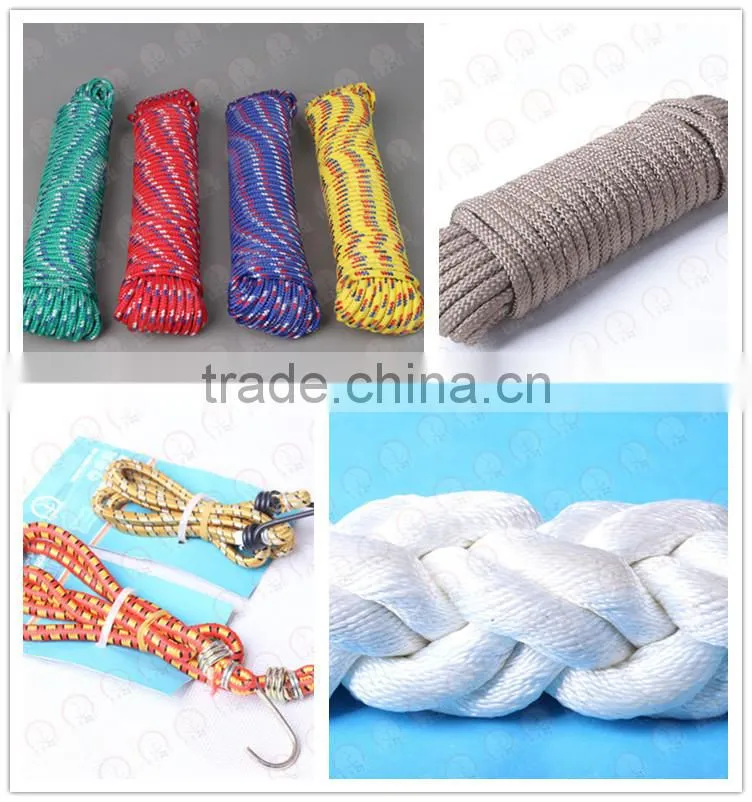

The machine is suitable to produce different size and material of 8,16,24,32,48 strands braided rope ,which is widely used in shoelace fishing line,sports rope, bungee rope,skipping rope,climbing rope , pet rope etc. The machine is equipped with yarn break up stop automatically device and frequency converter. The machine has the characteristics of high efficiency, safty and easy operation.
Rope Machine
Solid Knitting Machine
| Model | Rope Size Range | Bobbin Size | Speed | Heads |
| RMBM-90-12 | 1-6MM | ∅47×141MM | 330rpm | 4 |
| RMBM-110-12 | 15-18MM | ∅65×179MM | 220rpm | 2 |
| RMBM-130-12 | 12-25MM | ∅70×210MM | 220rpm | 2 |
The machine is suitable to produce different size and material start rope, bungee rope, pet rope etc. The machine is equipped with yarn break up stop automatically device and frequency converter. The machine has the characteristics of high efficiency, safty and easy operation.

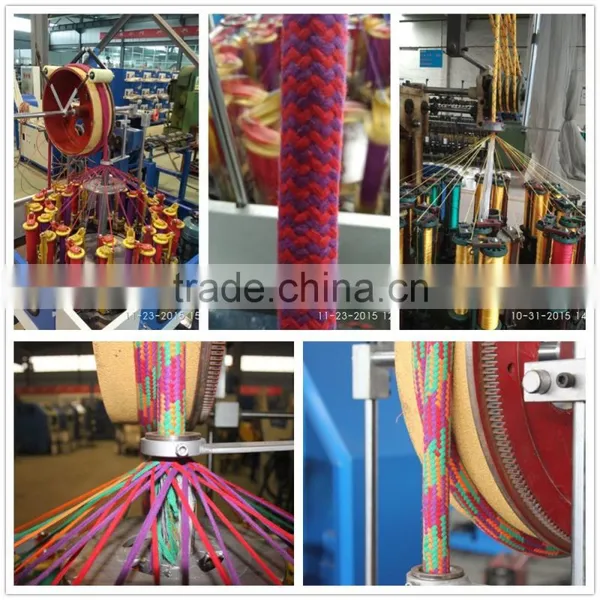

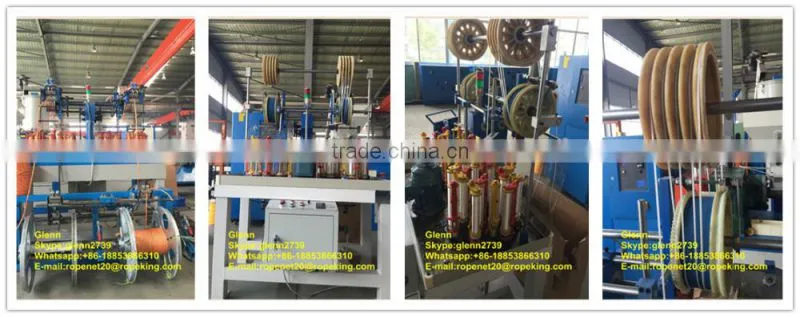

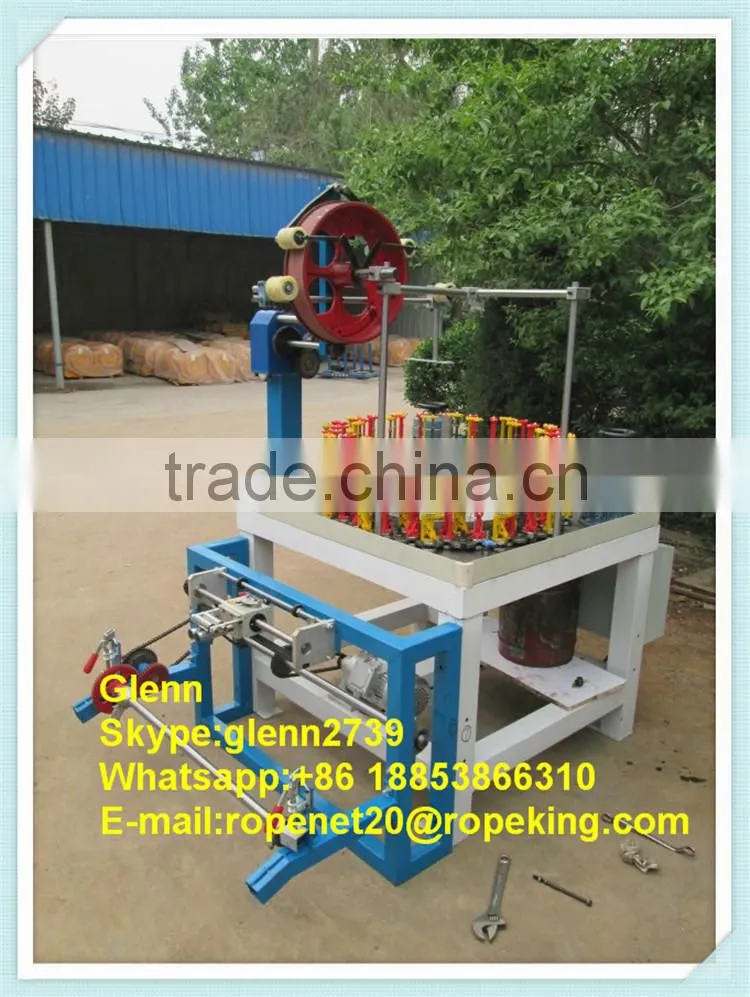

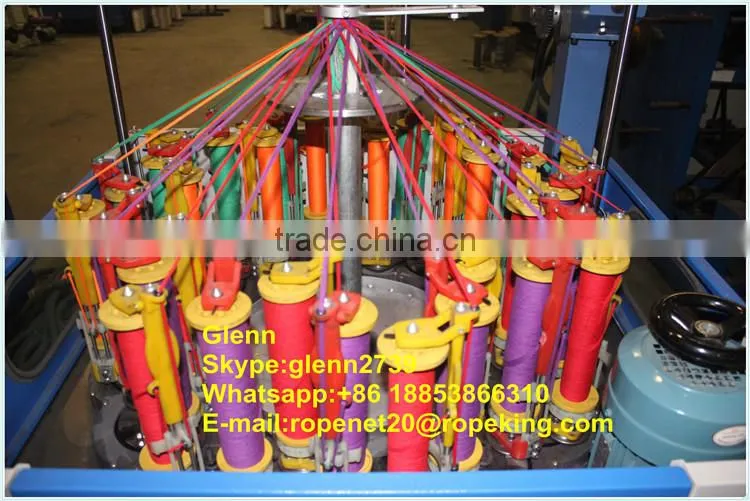

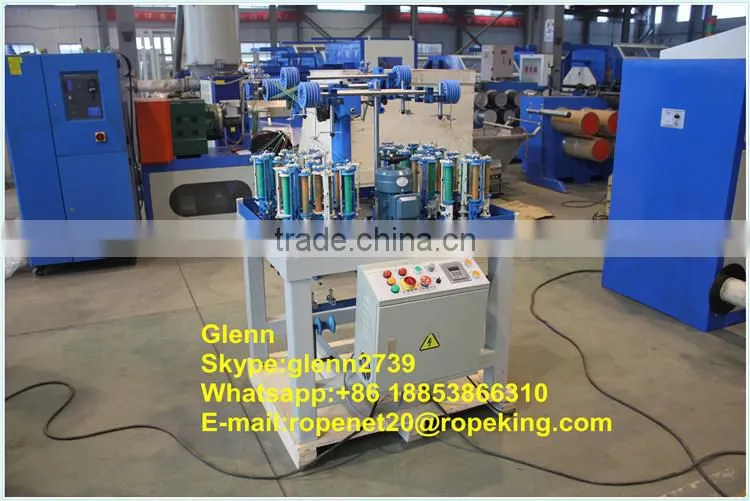

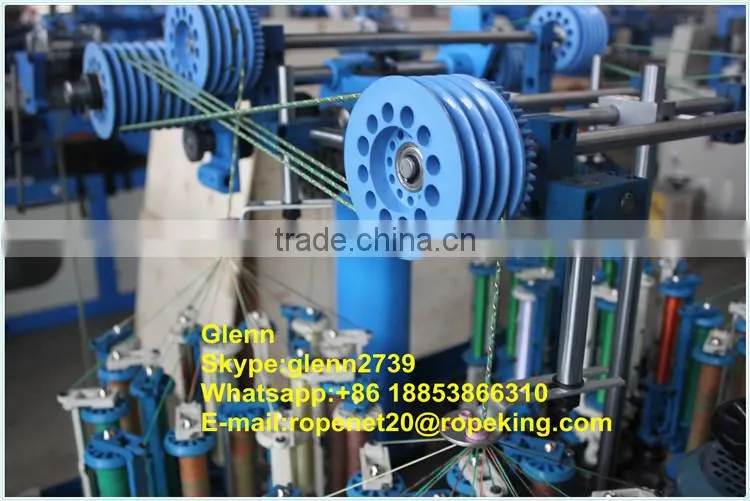

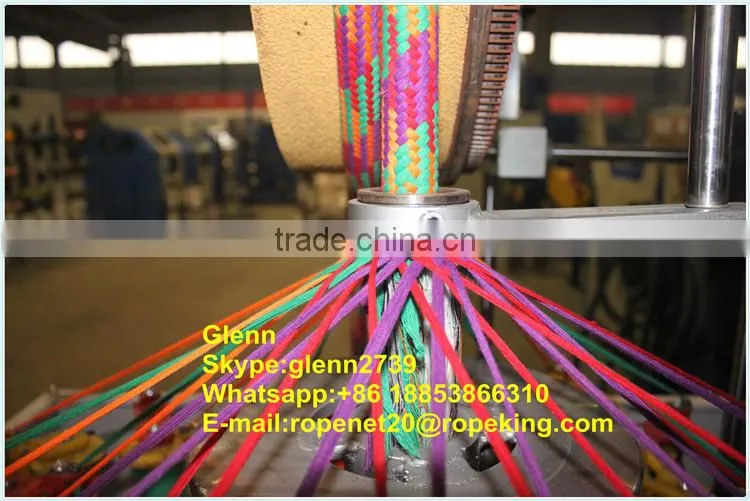

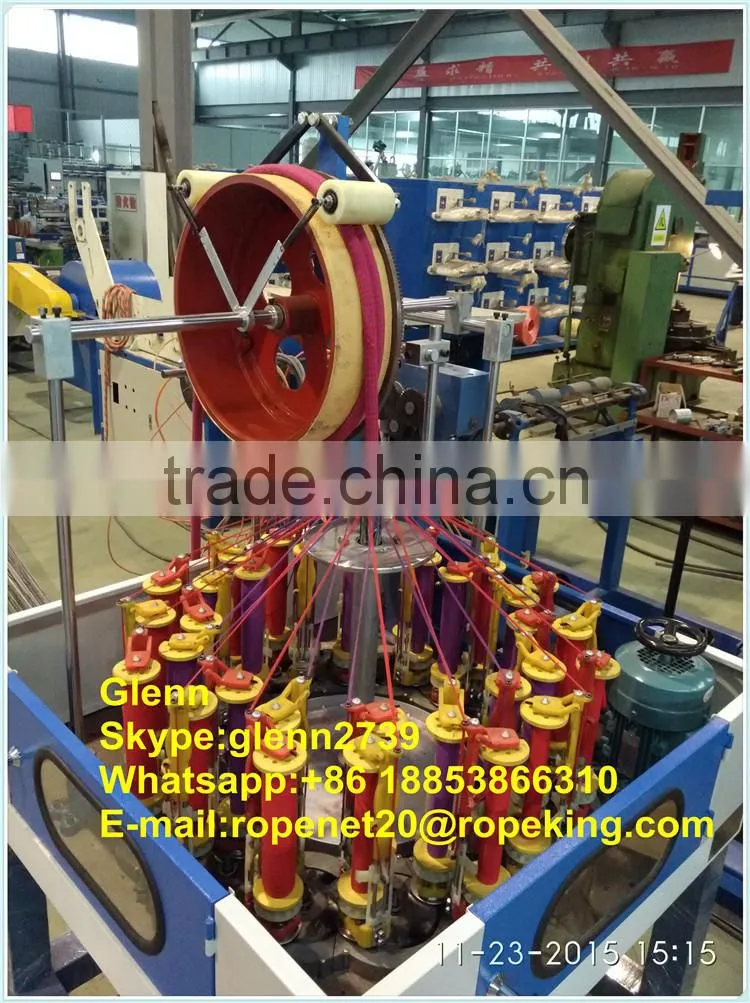

Rope Machine Pictures Show
1.rope braided machine with frequency converter and break yarn automatic stop system and wrapping center yarn synchronization system .
2.low waste and high output,the machine runs stable,easy to maintain and operate,
3.it takes small area,and cn produce many kinds of braiding made from different material,
4.it can make 8 spindles,16 spindles,24 spindles,32spindles,36spindles,40spindles,48spindles.etc.
Advantage:
1. strong suitability for materials, high reliable
2. take up small area, simple design
3. simple operation, easy to maintain
4. high output, low waste and cost, high performance
5. good efficient and convient
6. can use recyle material and new material steady
7. low energy consumption, low noise, stable operation, large loading capacity, long service life
8.Can use either recycled material and new material.
Related Products
We are one of the very few suppliers that can produce a complete set of Rope Machine in China.
Including:
1).Plastic Monofilament extruder
2).Plastic Film extruder
3).Yarn twisting machine.
4).High speed twisted rope making machine
5).High speed braided rope making machine
6).High speed ball winder including single head and multi-heads(for Plastic PP
tape twine&Cotton twine&Sisal twine&Jute twine)
7).Spool winding machine
8).Coil machine
9).Hank winding machine.
10).Shrinking machine.
11).Strapping machine.
Certificate
We have a professional packing and transport team who can help customer complete delivering perfectly.
1). What Is your company type? A factory or trade company?
We are a professional rope machine manufacturer. We can manufacture different size rope machine according to customer design.
2).How many years did your comapny working in the field?
Our company have worked in rope machine fiel almost 20 years, and our company staff have worked in the field more than 30 years.
3).How much is your comapny workng area?
More than 80000 m².And we have more than 1000 employees.
1).Installation Services
Installation Services are available with all new winder purchases. We will provide
the technical know-how for your operation smooth transition and support for
installing, debugging, operation of the machine, it will indicate you how to use
this machine well.
2).Clients Traning Services
We can train your staff to use your equipment systems properly.It means that we
offer Customers Training, teaching how to use the systems most efficiently and
safely as well as how to maintain optimal operational productivity.
3).After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly
feels about the importance of supporting our customers and the product
solutions we provide.Consequently we offer comprehensive maintenance
options to prevent equipment issues before they become problems.
Shandong Rope Net Machinery Co.,Ltd was founded in April 2002. The production of our company is machinery which can produce all kinds of rope, twine, net and webbing, all these machines are independently designed and reserached by ourselves.The products mainly include extruder,ring twisted, rope machine, rope packing machine etc.
Advantage:
- Specialized manufacturer
- Established in 2002
- More than 1000 employees
- Company type: OEM/ODM
- World market: 90% for international, 10% for domestic
- Annual sales amount: more than 35 million dollars
- Products: Rope, Twine, Net, Webbing, Chain, Cable, Accessory; plastic extruder, rope making machine,
- ring twister, braiding machine, packing machine.
WHAT WE HAVE ?
ABILITY
We had been accepted and confirmed by various customer groups, such as Retailer, wholesaler and professional manufacturer.
We had entered in many famous Hardware and DIY stores by more than 8000 items.
Our products are widely used in Hardware retail, Industry, Agriculture, Marine, Safety, Household....in over 70 countries.
QUALITY
We are proud to be the member of CORDAGE INSTITUTE.
We had passed ISO 9001,9004,14000 Certificates.
We have strict and standard QC inspection system inside.
CAPACITY
We are proud to guarantee that our delivery time would not exceed 60 days.
We have strong producing and packing ability with more than 700 workers and 6 factories.
Our annual production capacity is over 10000 tons only on rope product.
POSSIBILITY
We supply One-stop service for all our customers.
We supply RIGHT products to RIGHT person with RIGHT price.
We are devoted to satisfy you with innonated works which will be better and better.
