pp Filament Yarn Extruder Machine pp Monofilament Extruder Machine: Https://youtu.be/jW0X84zGq8I

pp Filament Yarn Extruder Machine pp Monofilament Extruder Machine: Https://youtu.be/jW0X84zGq8I photo-1
pp Filament Yarn Extruder Machine pp Monofilament Extruder Machine: Https://youtu.be/jW0X84zGq8I photo-2
pp Filament Yarn Extruder Machine pp Monofilament Extruder Machine: Https://youtu.be/jW0X84zGq8I photo-3
pp Filament Yarn Extruder Machine pp Monofilament Extruder Machine: Https://youtu.be/jW0X84zGq8I photo-4
US$ 34,500 - 88,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, pp/pe fiber
Plastic Processed:
Other, PP/PE
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other, pp/pe fiber
Plastic Processed Other, PP/PE
Screw Design Single-screw
Automatic Grade semi auto
Place of Origin Shandong, China
Brand Name ROPENET
Model Number RMSJ-65/70
Voltage 380v/220v
Power(W) 120kw
Dimension(L*W*H) 10m*0.9m *1.98m
Weight 19.5 ton
Certification CE/ISO
After-sales Service Provided Engineers available to service machinery overseas

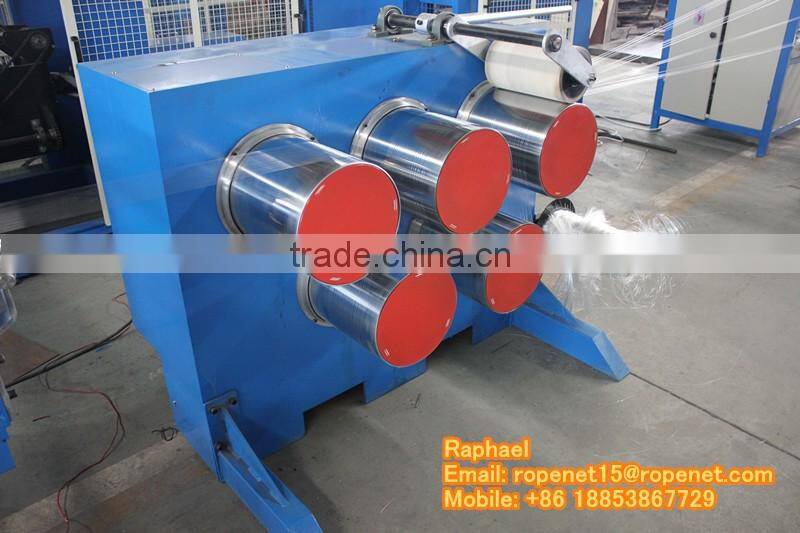

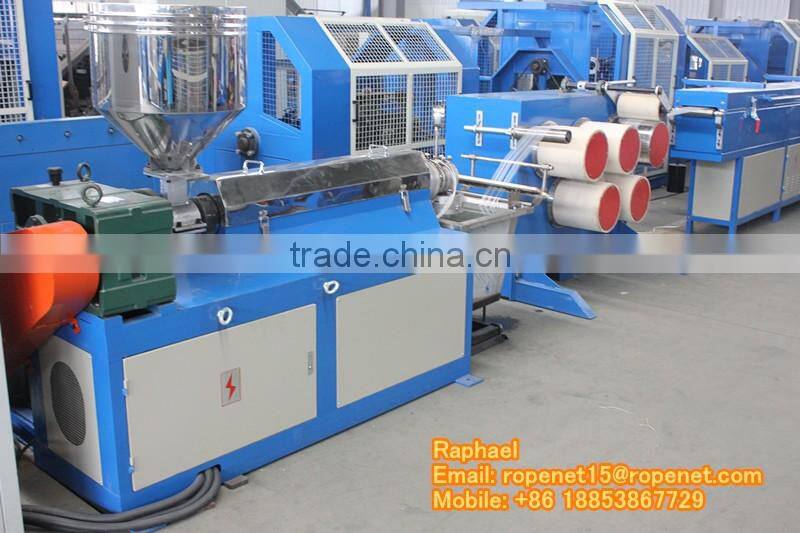

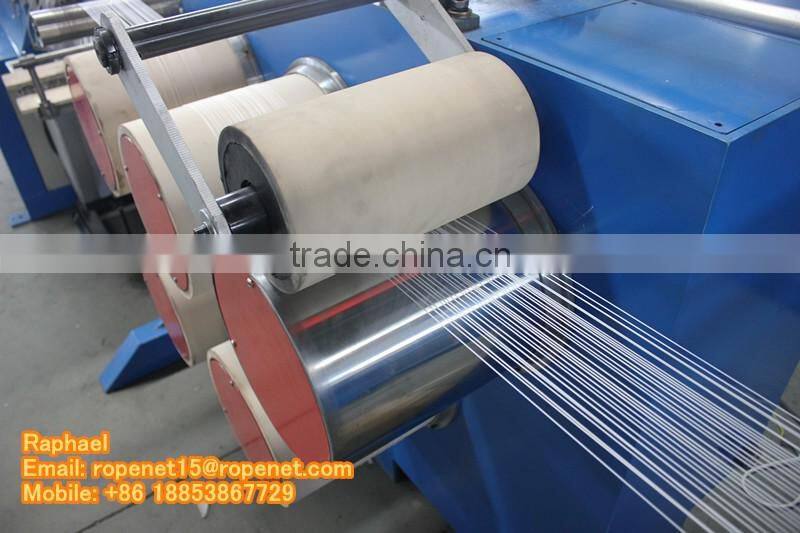

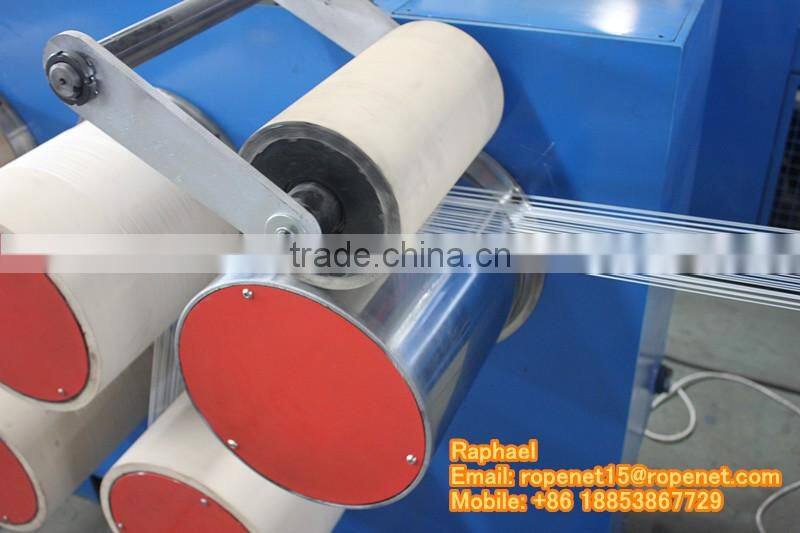

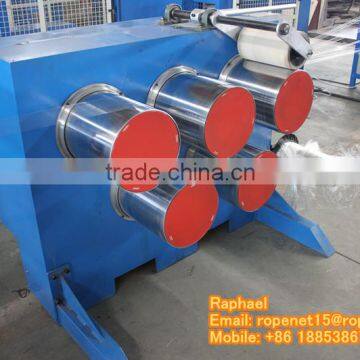

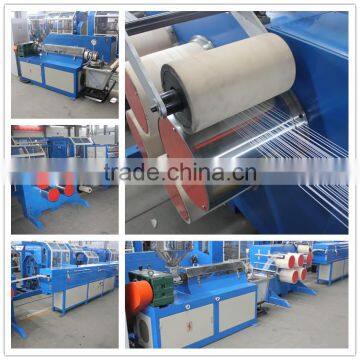

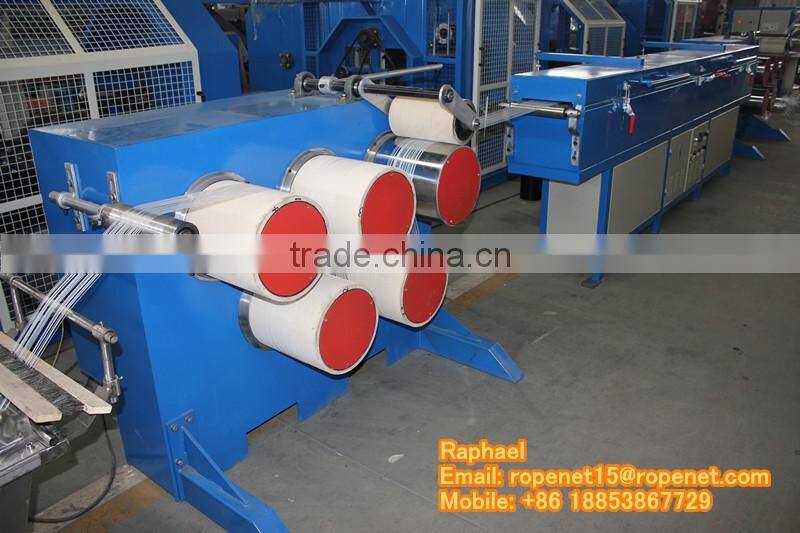

Introduction: Plastic Extruder



Application:

The machine can produce different size of PP, HDPE, PET virgin or recycled monofilament, fishing yarn which is widely used in fishing net, plastic twine, safety net, plastic rope. The machine has the characteristics of high capacity, long life span, easy operation, easy maintenance. The products have high strength which can up to 6.5g/d.

1. Takes up small area

2. Simple operation

3. High output

4. Easy to maintain

pp filament yarn extruder machine pp monofilament extruder machine: https://youtu.be/jW0X84zGq8Ipp filament yarn extruder machine pp monofilament extruder machine: https://youtu.be/jW0X84zGq8I

Item    RMSJ-60  RMSJ-70  RMSJ-80  RMSJ-90 RMSJ-100  RMSJ-110
Daily Capacity     0.6-1T   1.5-1.8T   1.5-2.5T   2-3.5T    2.5-4T     3-4.5T
Dia. of screw     ø60mm    ø70mm    ø80mm    ø90mm    ø100mm    ø110mm
Ratio of L/D      33:1     33:1     33:1     33:1     33:1     33:1
Die      600mm     700mm     800mm     900mm    1000mm    1100mm
Max. Yarn Speed     160rpm     160rpm     160rpm     160rpm     160rpm     160rpm
Drawing Ratio     6-10    6-10      6-10      6-10     6-10     6-10
Total Power     85kw     100kw     120kw     140kw     160kw     180kw





pp filament yarn extruder machine pp monofilament extruder machine: https://youtu.be/jW0X84zGq8Ipp filament yarn extruder machine pp monofilament extruder machine: https://youtu.be/jW0X84zGq8Ipp filament yarn extruder machine pp monofilament extruder machine: https://youtu.be/jW0X84zGq8Ipp filament yarn extruder machine pp monofilament extruder machine: https://youtu.be/jW0X84zGq8I





AFTERSALES  Sevices

1.Installation Service

Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing,debugging, operation of the machine, it will indicate you how to use this machine well.



2.Clients Traning Services

 We can train your staff to use your equipment systems properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.



3.After Sales Service

We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of

supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.



Related machines:



Ring twister

 pp filament yarn extruder machine pp monofilament extruder machine: https://youtu.be/jW0X84zGq8Ipp filament yarn extruder machine pp monofilament extruder machine: https://youtu.be/jW0X84zGq8I

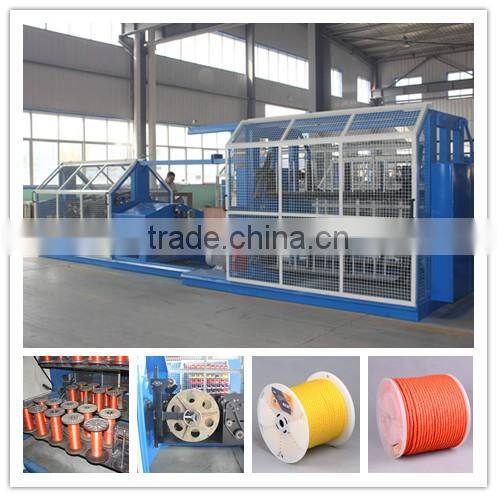

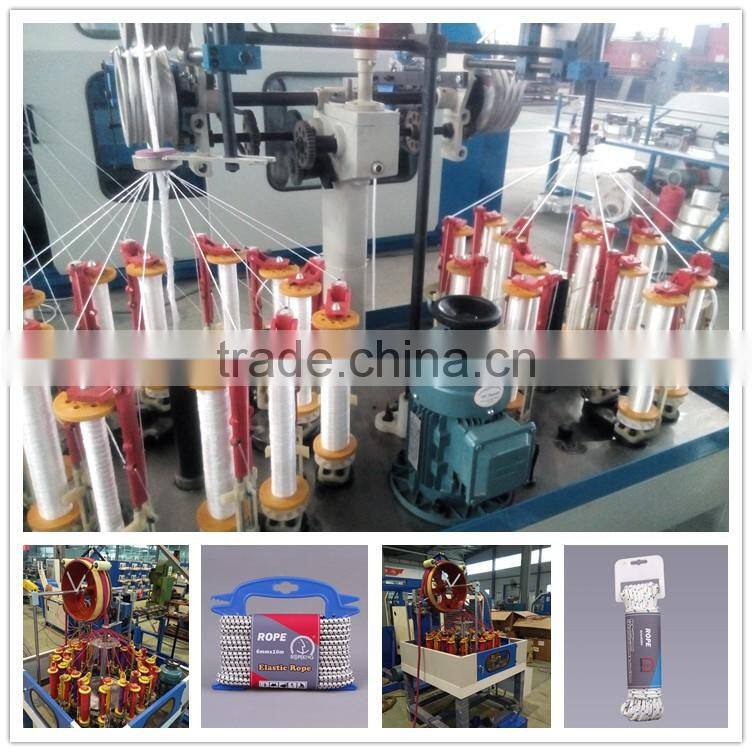

Rope making machine                                             Braiding machine

  pp filament yarn extruder machine pp monofilament extruder machine: https://youtu.be/jW0X84zGq8Ipp filament yarn extruder machine pp monofilament extruder machine: https://youtu.be/jW0X84zGq8I



SHANDONG ROPE NET MACHINERY :



1. As a professional manufacturer of rope machines more than 10 years!


2.We are the best and most professional manufacturer that can produce a
complete set of rope making machines in China. Now we are the ropeking in China
Products Including:
1) Plastic Monofilament extruder
2) Plastic Film extruder
3) Ring twister.
4) High speed twisted rope making machine
5) High speed braided rope making machine
6) High speed ball winder including single head and multi-heads(for Plastic PP
tape twine&Cotton twine&Sisal twine&Jute twine)
7) Spool winding machine
8) Coil machine
9) Hank winding machine.
10) Shrinking machine.
11) Strapping machine.

pp filament yarn extruder machine pp monofilament extruder machine: https://youtu.be/jW0X84zGq8I
