Automatic Multi-heads Cotton Thread Ball Making machine/Yarn Ball Making Machine
Brief Description

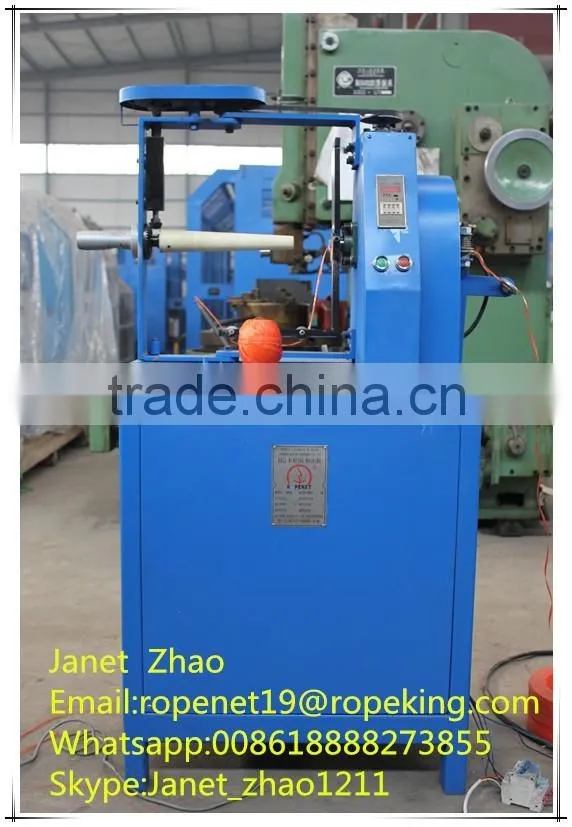

Single-head Ball Winder
--to wind thread, twine into ball shape
--suitable for different material, such as pp split-film, jute, sisal, flat yarn, cotton etc.
--simple design, easy to operate and maintain.
--take up small space, low consumption.

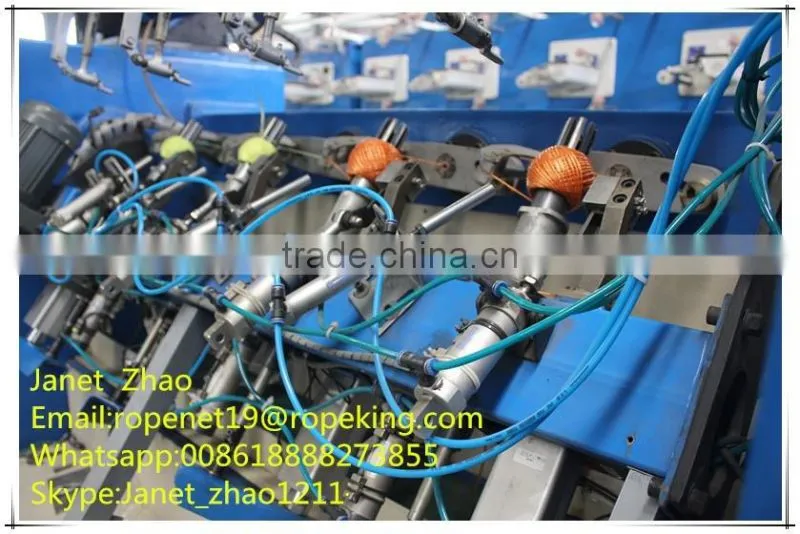

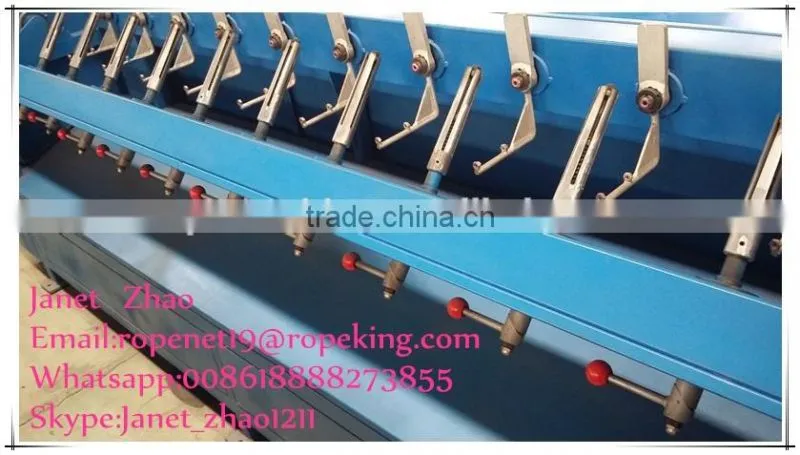

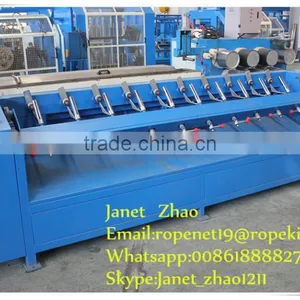

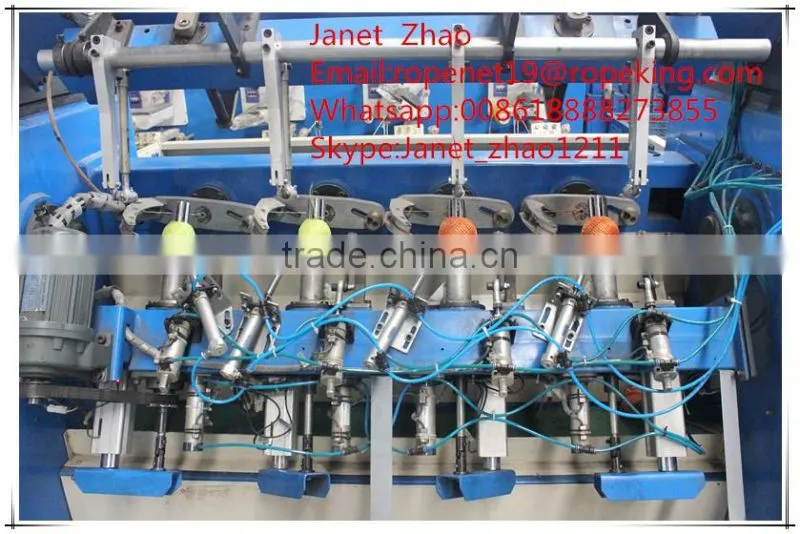

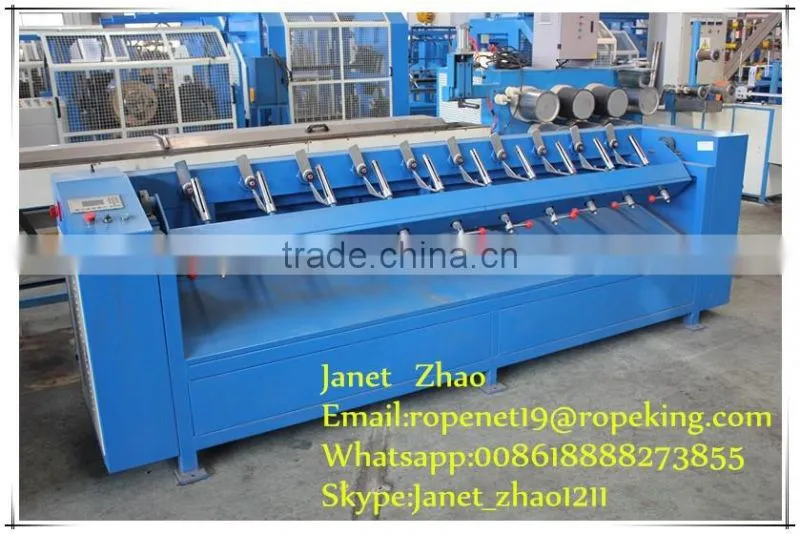

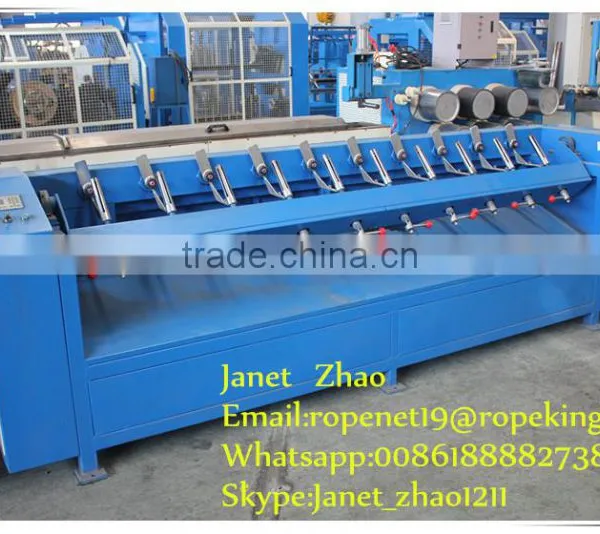

Multi-heads Ball Winder
--multi balls work at the same time
--PLC control, easy to operate
--count automatically
--different ball shape
--easy to maintain
--durable and stable

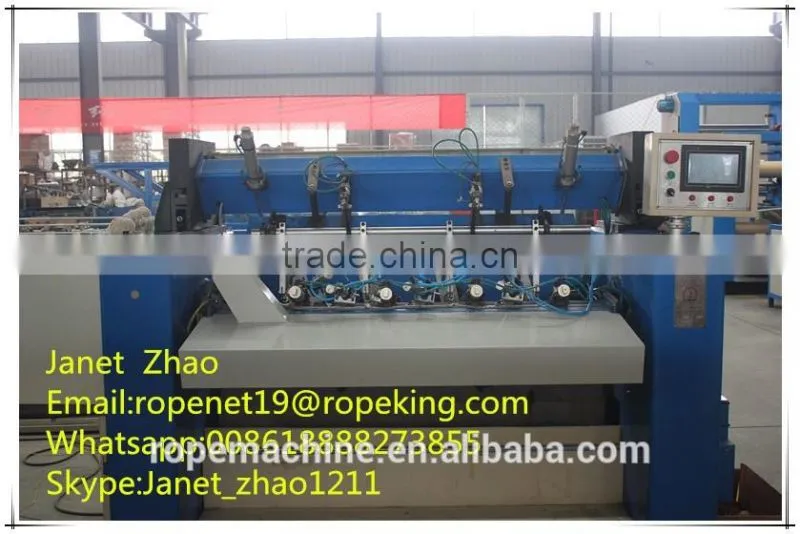

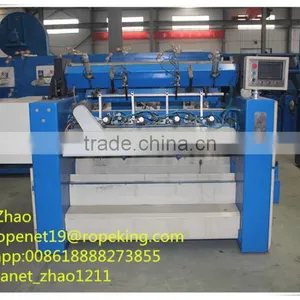

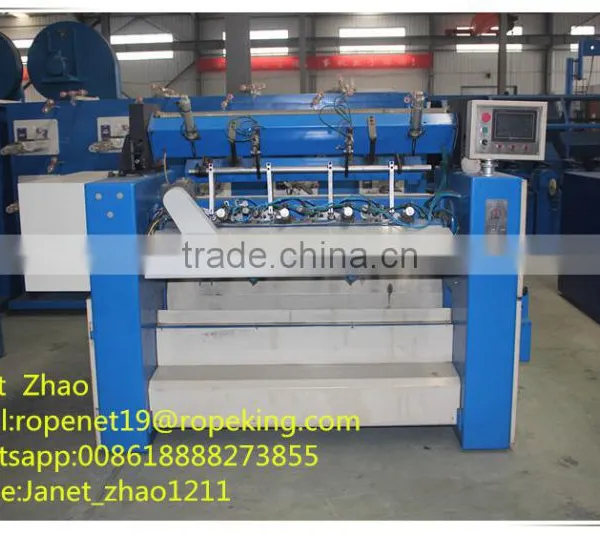

Automatic Ball Winder
The machine is suitable for winding different size of PP Split-film, flat yarn, cotton, jute, sisal into ball shape. The PLC control system makes it feeding automatically, break line automatically, unloading automatically, convey automatically, count automatically, yarn break stop automatically.
--automatic feeding
--automatic clipping
--automatic doffing
--automatic winding tension adjustment
--easy to operate and maintain
--reliable in continuous operation
Technical Parameters
Single-head Ball Winder
| Model | RMBL-01-120 |
| Ball Weight Range | 20-500g |
| Size of Nylon Bobbin | Φ40*Φ30*150mm |
| Flyer Speed | 680r/min |
| Winding Speed | 30-120r/min |
| Ball Outline Dimension | Φ120*120mm |
| Power | 380V/220V, 50hz, 0.18kw |
| Machine Size | 900*350*1150mm |
| Machine Weight | 80kg |
Multi-heads Ball Winder
| Model | RMBL-06-160 | RMBL-10-150 | RMBL-12-150 |
| No. og Heads | 6 | 10 | 12 |
| Flyer Speed | 0-650rpm | 0-650rpm | 0-650rpm |
| Winding Speed | 5-70rpm | 5-70rpm | 5-70rpm |
| Size of Nylon Bobbin | Φ31*Φ27*205mm | Φ31*Φ27*205mm | Φ31*Φ27*205mm |
| Max. Outline Size of Ball | Φ160*160mm | Φ150*150mm | Φ150*150mm |
| Weight | 370kg | 480kg | 520kg |
Automatic Ball Winder
| Model | RMBL-80 | RMBL-100 | RMBL-120 | RMBL-140 |
| Size of Twine | 0.8-2mm | 0.8-2mm | 0.8-2mm | 0.8-2mm |
| Dia. of Ball | 40-80mm | 60-100mm | 80-120mm | 100-140mm |
| Winding Speed | 0-600rpm | 0-600rpm | 0-600rpm | 0-600rpm |
| Air Pressure | 0.6-0.8MPA | 0.6-0.8MPA | 0.6-0.8MPA | 0.6-0.8MPA |
| Total Power | 2kw | 2.2kw | 2.5kw | 3kw |
Detailed Pictures
Company Introduction
SHANDONG ROPE NET MACHINERY CO., LTD
About Us
--Established in April 2002
--Specialized in Full Line Rope Making Machine
--90% export sales
--More than 1000 employees
About Our Advantages
--Customers in almost 40 countries
--14 years’ experience as a proven professionl manufacturer
--ISO 9001 certification
--CE certification for different machines
--Innovative Research
--Continual product development
--Expertise in advanced technology
--Delivers quickly and on time
About Our Services
--Installation Service
Installation Service is available, which will surely keep machine use safely.
--Technical Know-How
Supply technical know-how of rope making from A to Z and make customers convenience.
--Customer Training
Train your staff how to use machine properly and how to maintain optimal operational productivity.
--After-sale Service
Offer the preventative maintenance and after-sale service.
Certifications
Rope Production Line
We are committed to Full Line Rope Making Machine, from extruders, ring twisters, rope making machines to rope packaging machines. Based on our years’ experience and strict quality control system, we are able to make the most suitable solutions as different requirements. So if any interests/questions, please do not hesitate to contact us.
Perfect Perfection, Create Win-Win!
ROPE NET MACHINE,WIN FUTURE THROUGH PARTERSHIP!
If any questions, please feel free to contact me!
