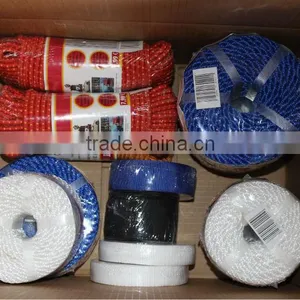

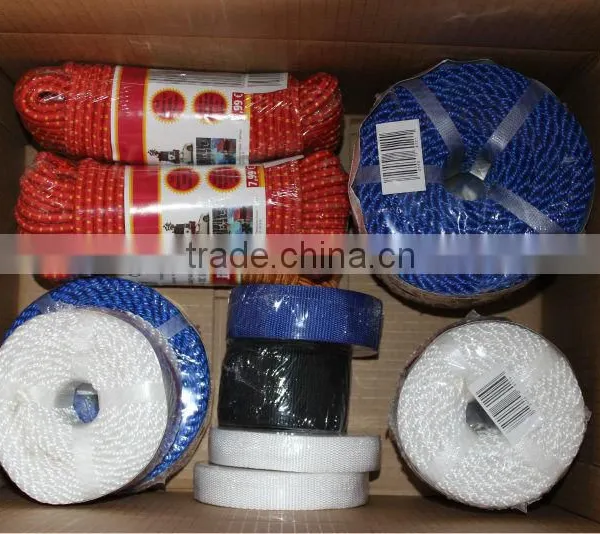

rope and belt set

Specifications

1) material: PP
2)structure:16 braided
3)Diameter: 3-60mm or per customer's request

Rope and Belt





1) material: PP
2)structure:16 braided
3)Diameter: 3-60mm or per customer's request



4) color: orange, red, yellow, blue, etc (as customer's request)
5) packing: coil, roll, or as request



6) usage: widely used in packing, agriculture, fishery, mooring and transportation etc







Breaking strength sheet:







dia:mm	dia:inch	cir:inch	weight:kg/220m	mbl:kgf or tons
4	5/32	1/2	1.32	215kgf
5	3/16	5/8	2.45	320
6	7/32	3/4	3.74	600
7	1/4	7/8	5.10	750
8	5/16	1	6.60	1.060
9	11/32	1-1/8	8.10	1.190
10	3/8	1-1/4	9.90	1.560
12	1/2	1-1/2	14.30	2.210
14	9/16	1-3/4	20.00	3.050
16	5/8	2	25.30	3.78ts
18	3/4	2-1/4	32.50	4.82
20	13/16	2-1/2	40.00	5.80
22	7/8	2-3/4	48.40	6.96





PE
