Yokahama Dock Fender

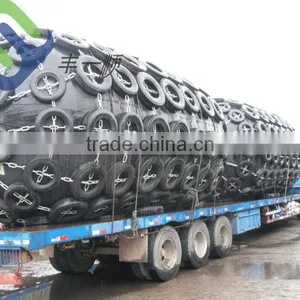

Yokahama Dock Fender thumbnail-1
Yokahama Dock Fender photo-1
US$ 500 - 5,000 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
FLORESCENCE
Model Number:
Dia.3300mmLengh 4500mm
Part:
Other, chain and tire
Contact Supplier Request Quote Chat Now
Qingdao Florescence Rubber Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name FLORESCENCE
Model Number Dia.3300mmLengh 4500mm
Part Other, chain and tire

Specifications

yokohama dock fender
1.54% natural rubber
2.Good air tightness
3.Long service llife
4.easy installation







1.Marine yokohama fender specifications



1. The standard specification of ship rubber fender



You can choose the required diameter and effective length to meet your projects



(1)Diameter: from 500mm to 4500mm



(2)Effective length: from 1000mm to 12000mm



The above specifications only are our standard specifications arrange. Can be supplied customized size upon customers' request.



2.Performance characteristics



(1)Ship rubber fender is with the use of high quality rubber nylon cord.



(2) Using compressed air as damping medium, the rubber can transform flexibly under pressure, with large contact area, small reaction and absorb large amount of energy.



(3) When berthing, the ship is almost at a certain angle, the ship rubber fender can realize contact in a certain angle by bringing full play to its performance.



(4) Floating on the water surface, even the ship fluctuates and sways resulting from ebb and flow and waves, the pneumatic



(5) Simple installation



(6)Long service life





Specifications

D*L(m)









Initial pneumatic pressure 0.05MPa

Initial pneumatic pressure 0.05MPa



Applicable ships tonnage

(T)



Remark





Sphere

Weight

(kg)



R(KN)









GEA(KG)









Sphere

Weight

(kg)



R(KN)





GEA(KG)





0.5*1.0

25

64

6

25

83

8

50

Fishing ship

0.6*1.0

32

74

8

32

96

11

50

Fishing ship

0.7*1.0

50

137

17

50

178

24

100

Fishing ship

1.0*1.5

80

182

32

80

235

44

100

Fishing ship

1.0*2.0

100

257

45

125

335

63

200

Fishing ship, Tugboat

1.2*2.0

120

297

63

165

386

86

300-500

Fishing ship, Tugboat

1.35*2.5

165

427

102

226

554

140

300-500

Fishing ship, Tugboat

1.5*3.0

315

597

153

370

751

211

1000

Tugboat,Transportation ships

1.7*3.0

405

639

191

436

830

263

1000

Deep sea trawling ships,Transportation ships

2.0*3.5

590

875

308

632

1138

424

3000

Deep sea trawling ships,Transportation ships

2.5*4.0

1050

1381

663

1110

1815

925

10000

Transportation ships

2.5*5.5

1333

2019

943

1410

2653

1317

10000

Transportation ships

3.0*5.0

1880

2104

1210

2155

2709

1571

10000above

Transportation ships

3.0*6.0

2160

2583

1485

2470

3292

1888

10000above

Transportation ships

3.3*4.5

2020

1884

1175

2300

2476

1640

10000above

Transportation ships

3.3*6.0



2300

2783

1675

2600

3652

2338

10000above

Transportation ships

3.3*6.5

2700

3015

1814

3080

3961

2532

10000above

Transportation ships









3. Marine Fenders Applications





 Floating fenders, also known as pneumatic fender , are widely used for various applications such as:





-   Ship to ship operations



 -  Fast ferries and aluminum vessels





-  Installations (temporary and permanent)





-  Rapid response and emergencies





4.   Marine  Fenders Features





· High energy absorption and low reaction force and surface pressure





· No decline in the rate of energy absorption when obliquely compressed, under normal circumstances,



 and uniform surface pressure for any contact area.





· Low reaction force to prevent damage from repeated impacts against the hull of ship, quay, jetty or



 mooring rope.





· Ability to float and thus rise and fall with the ebb and flow of tides and the movements of a ship.





· High standard of uniform quality in compression performance with no deterioration of the rubber.





· Easy installation.

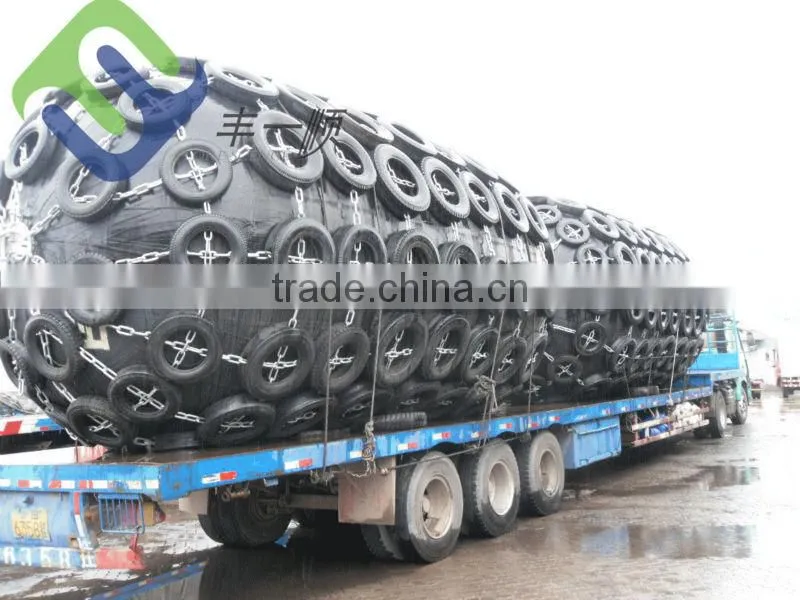

5.   Marine Fenders Chain and tyre





Fenders with chain and tyre net for protection of the fender body is recommended.





 chain and tyre net are able to withstand corrosion longer and are usually built with used tyres and





rubber sleeves to provide additional protection,it more easily repaired. Often we advise chains and





tyre nets for fender body protection.









6.  Marine Fenders size (we can according to the clients require)



yokahama dock fender



7.  Marine Fenders Accessories



yokahama dock fender





yokahama dock fender

yokahama dock fender

yokahama dock fender

Any questions,please feel free to contact me,will reply you within 24 hours-Rachel
