Specifications
thread twister machine1.wide application scopes
2.modern design
3.high speed
4.low noise and power consumption
Thread twister machine
1. Brief Introduction
The thread twister machine has wide application scopes, modern design, big take-up amount, high speed. It
is easy to operate and maintain, low noise and power consumption. It is a high efficiency and output machine
with twisting and stranding. It has the mechanism with planetary direction exchanging. Stranding and twisting of
the twine can be finished in one time. It is suitable for primary twisting and re-twisting of all kinds of PE twine,
PP twine, PET twine, nylon twine, cotton twine, and twisted ropes in small size.
2. Specification of thread twister machine
| Item | Spindle Qty | Spindle Speed | Spindle Distance | Dia of Traveler Ring | Twisting Direction | Twist Scope | Listing Movement of traveler ring | Dia of rolller | Motor Power | Overall Dimension | Total Weight |
| Ring Twister | 40 | 1800-2800rpm | 280mm | 204mm | Z or S | 80-350turns/m | 300mm | 57mm | 15kw | 7*1.58*2.27m | 6600kg |
3. Advantage of thread twister machine
- Wide applied scope
- Big winding capacity
- Strong suitability for material
- Longer life for spare part
- AC Invertor & Motor
- Mechanism of twisting direction change
- Anti-conversing turning device for roller
- Lifting mechanism with planetary
- Two procedures of twine can be finished in one time
- Latest technology used to force the melt into the die very effectively
4. Our service
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.Clients Traning Services
We can train your staff to use your equipment systems properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.

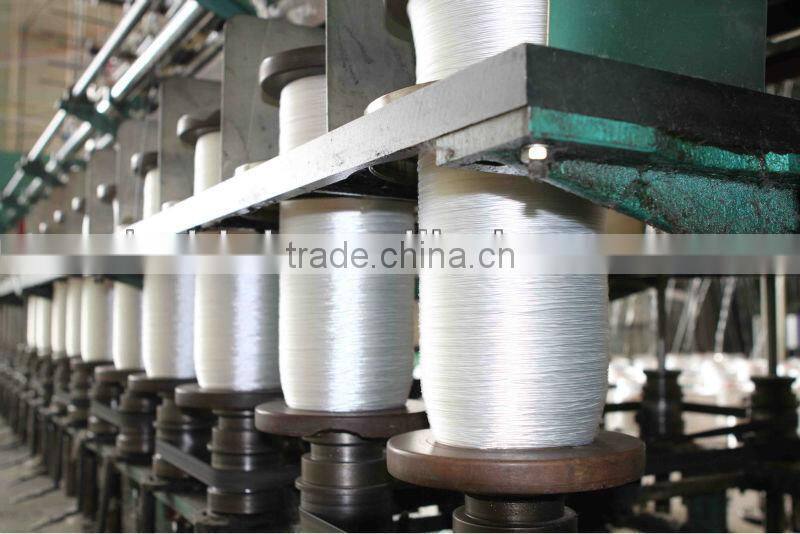

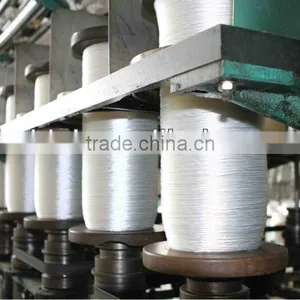

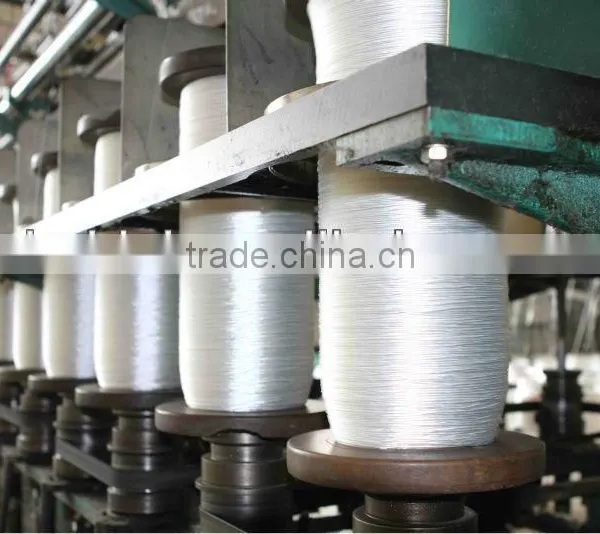

4. Picture Show of thread twister machine

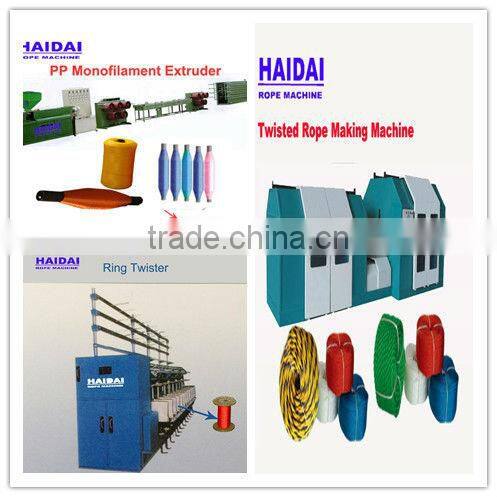

5. We can supply " the Complete Project for the ROPE MAKING UNIT."service.
PP extruder (pp fiber)----Ring twister (strand)---Rope Making Machine (twisted rope, braided
rope)---Packaging Machine(spool winder, ball winder, hank machine, coil machine)
Welcome customers all over the world cooperaton!!!
