Home > Products > Yarn Twisting Machine > Rope making machine pre-twister for twisting rope yarn
Rope making machine pre-twister for twisting rope yarn
- 30 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Application: | Textile | Type: | Twisting Machine |
Production Capacity: | High Effective | Place of Origin: | Shandong, China | Brand Name: | Haidai |
Model Number: | HDRT-722 | Spinning Method: | Ring Spinning | Automatic: | No |
Dimension(L*W*H): | 7.07*1.58*2.27m | Weight: | 6600kg | Power(W): | 15kw |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
We can supply " the Complete Project for the ROPE MAKING UNIT."service.
PP extruder (pp fiber)----Ring twister (strand)---Rope Making Machine (twisted rope, braided
rope)---Packaging spool winder, ball winder, hank machine, coil machine)
Rope making machine pre-twister
1. Brief Introduction
The rope making machine pre-twister has wide application scopes, modern design, big take up amount,
high speed. It is easy to operate and maintain, low noise and power consumption. It is a high efficiency and
output machine with twisting and stranding. It has the mechanism with planetary direction exchanging.
Stranding and twisting of the twine can be finished in one time. It is suitable for primary twisting and re-twisting
of all kinds of PE twine, PP twine, PET twine, nylon twine, cotton twine, and twisted ropes in small size.
2. Specification of rope making machine pre-twister
ITEM | HDRT-813 | HDRT-814 | HDRT-722 |
Quantity of spindle | 160 | 120 -180 | 40-80 |
Speed of spindle | 3310-6760r/min | 2800-5730r/min | 1800-2800r/min |
Distance of spindle | 140mm | 186mm | 280mm |
Dia of traveler ring | 100mm | 140mm | 204mm |
Twisting direction | Z or S | Z or S | Z or S |
Scope of twist lay | 60-800turns/m | 60-690 turns/m | 80-350turns/m |
Listing movement of traveler ring | 203mm | 205mm | 300mm |
Dia.of roller | 51mm/57mm | 51mm/57mm | 51mm/57mm |
Operative form | Operation of double faces | Operation of double faces | Operation of double faces |
Power | 11KW | 15KW | 15KW |
Overative form | 13.5x1.13x2.15m | 13.5x1.13x2.15m | 7.07x1.58x2.27m |
Machine weight | 6500kg | 6800kg | 6600kg |
3. Advantage of rope making machine pre-twister
- Wide applied scope
- Big winding capacity
- Strong suitability for material
- Longer life for spare part
- AC Invertor & Motor
- Mechanism of twisting direction change
- Anti-conversing turning device for roller
- Lifting mechanism with planetary
- Two procedures of twine can be finished in one time
- Latest technology used to force the melt into the die very effectively
4. Our service
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.Clients Traning Services
We can train your staff to use your equipment systems properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.

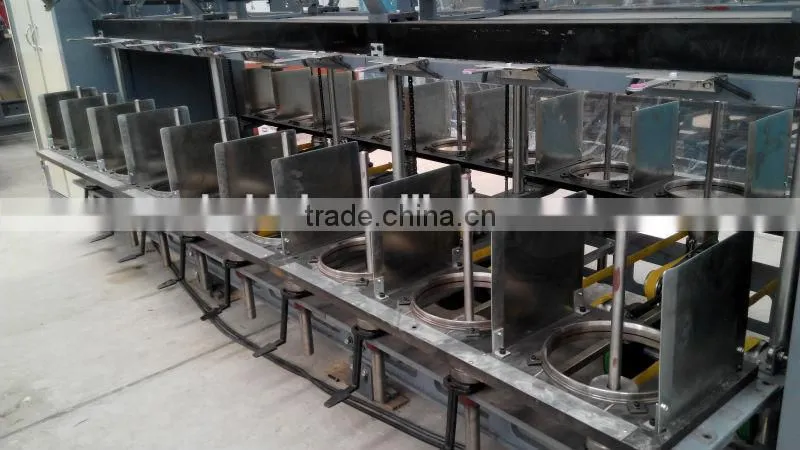

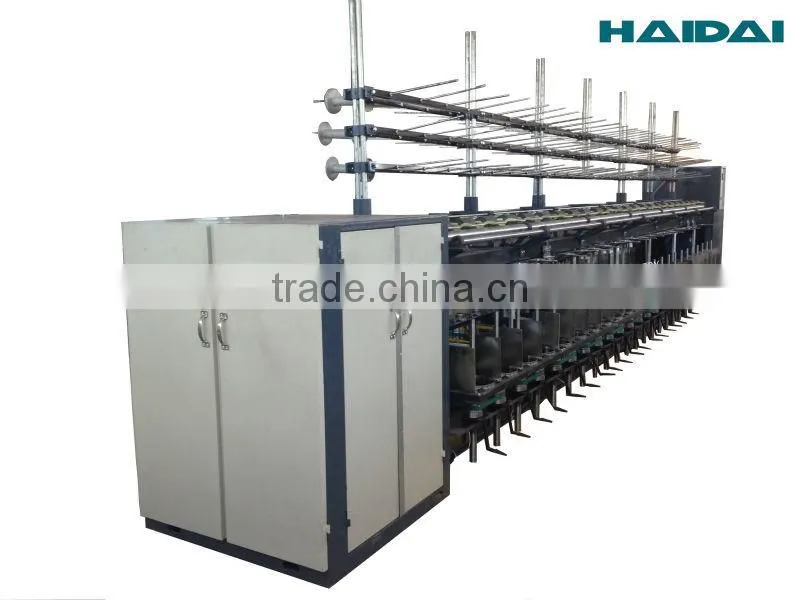

4. Picture Show of rope making machine pre-twister

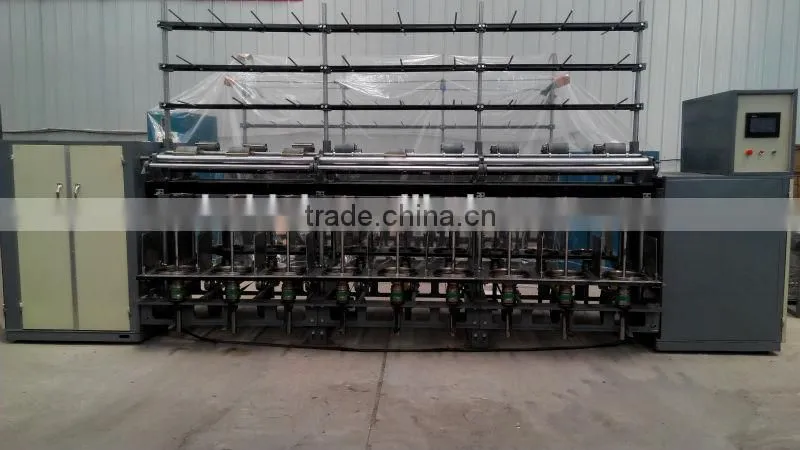

HDRT-722 ring twisting machine

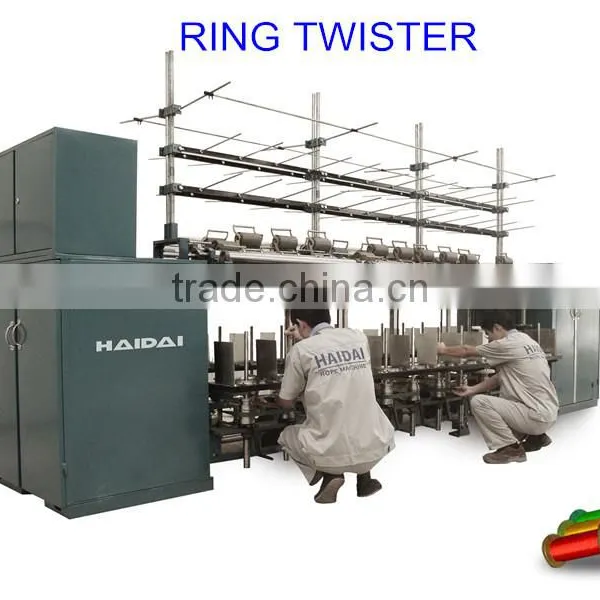

HDRT-723 ring twisting machine (with touch screen)

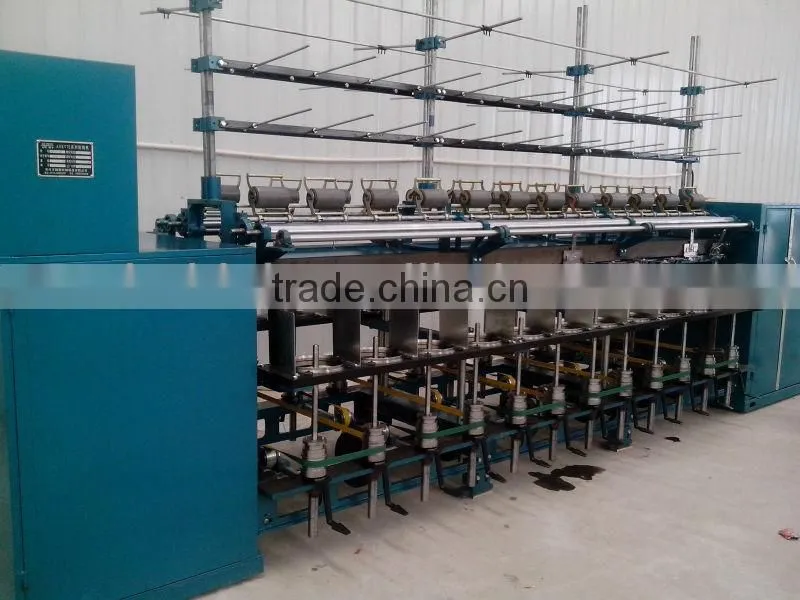

HDRT-723 ring twisting machine

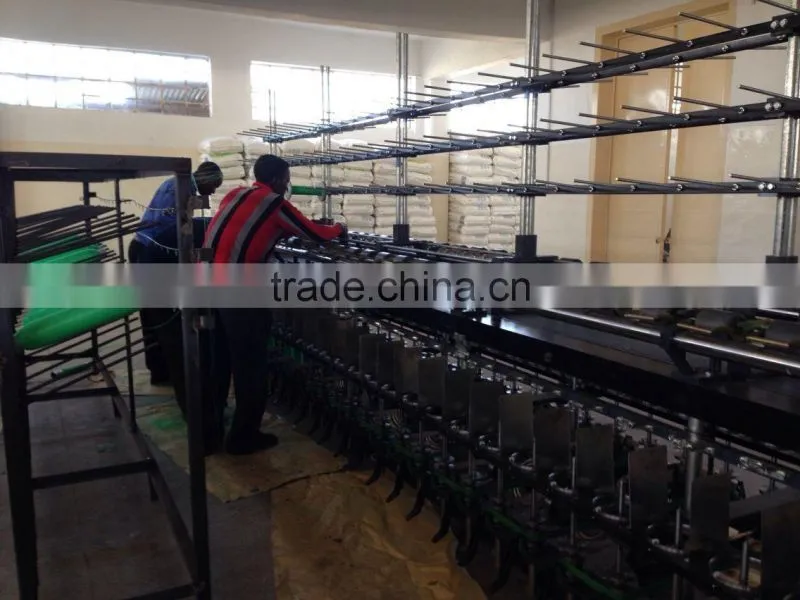

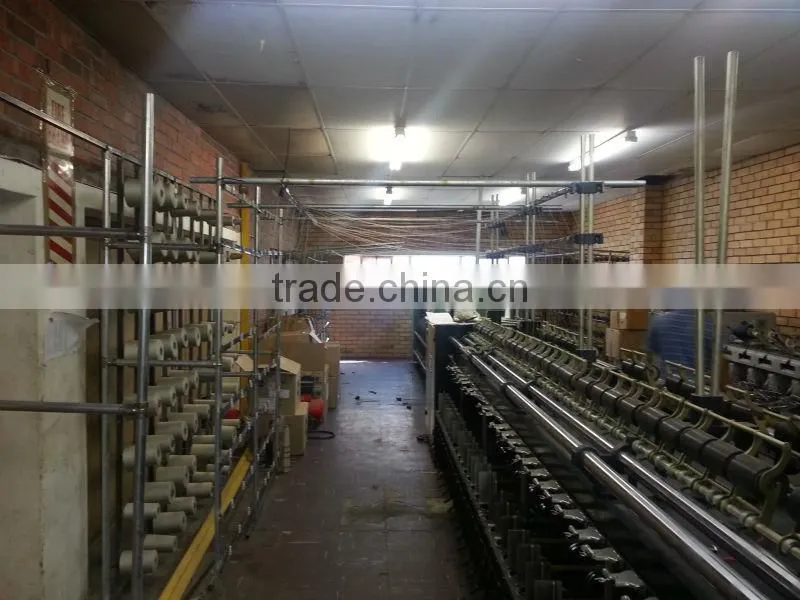

Site installation photos from our Africa customers
