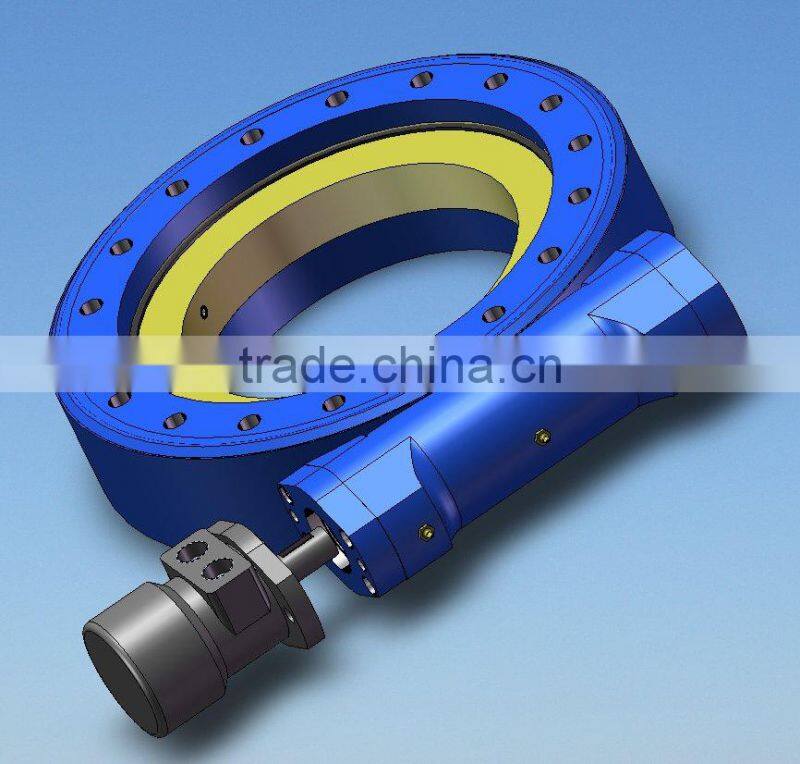

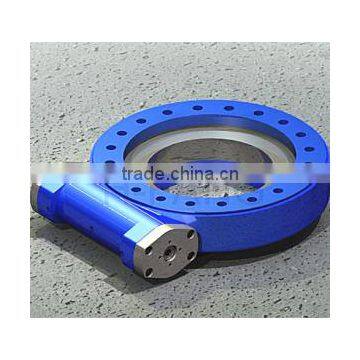

Slewing drive for solar tracking system slew drive SE14
Slew drive Ratio |
85:1 |
Rotating output rated speed |
— |
Efficiency |
40% |
International protection(IP) |
55 |
Worm drive temperature |
-25℃+120℃ |
Torsion stiffness |
2240N·m/mrad |
Bending stiffness |
2645N·m/mrad |
Slew drive loading data |
HC Type |
Normal output torque |
3249 N·m |
Max. output torque |
6497 N·m |
Backwards holding torque |
48000 N·m |
Overturning moment |
67800 N·m |
Static radial rating |
222 KN |
Static axial rating |
555 KN |
Dynamic radial rating |
116.55 KN |
Dynamic axial rating |
133.2 KN |
Applications
SE Enclosed Slew Drives help power movement across industries and are perfect for situations requiring both load-holding and rotational torque from the same gearbox. Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger derricks, and automotive lifts.
Specifications
Our base model sizes deliver performance ranges from 6kNm to 220kNm of holding torque, 200Nm to 63kNm of output torque, 500Nm to 271kNm of overturning moment load capacity, and gearbox reduction ratios of 30:1 up to 156,600:1. The mounting can be done horizontally, vertically, or across a combination of multiple axes.
| Applications |
|---|
| Solar Trackers |
| Wind Turbines |
| Man Lifts |
| Hydraulic Machinery |
| Telescopic Handlers |
| Digger Derricks |
| Lifts |
| Cranes |
| Drilling equipment |
| Military Equipment |
Our slewing drives are one of the most cost-effective solar-tracking solution. They are designed, tested, and guaranteed for accuracy and efficiency for a longer field life.
Our slewing gears help make solar installations more effective and profitable by supporting movement in both single and dual-axis solar trackers.
Moving enormous solar tracking systems requires slewing gearboxes that offer both multi-plane load-holding and rotational torque. Slewing drives that engage a greater number of teeth offer the maximum amount of durability, power, and performance.
Our technology allows for maximum survivability load-holding capacity during wind storms by engaging 5 to 13 teeth at a time (depending on size) compared to the standard one tooth.
With improved strength and stability over typical slewing drives, our drives can support the load of large solar panels and troughs while controlling rotational torque.

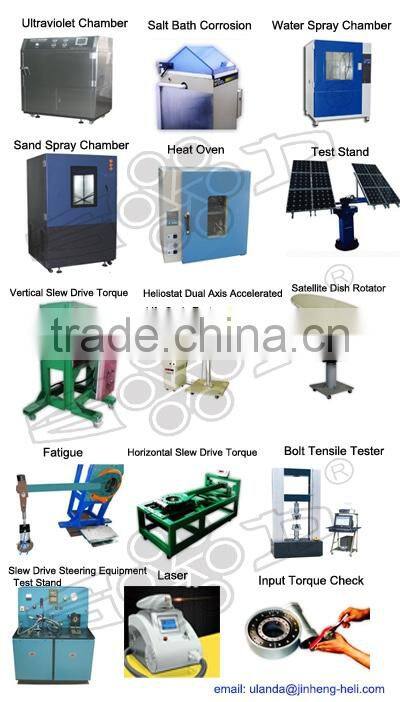

To acquire strong capabilities, we have done much on the strict quality controls and tests. See below procedures:
Ultraviolet Chamber
Salt Bath Corrosion
Water Spray Chamber
Sand Spray Chamber
Heat Oven
Test Stand
Vertical Slew Drive Torque
Heliostat Dual Axis Accelerated Life Cycle Test
Satellite Dish Rotator
Fatigue
Horizontal Slew Drive Torque
Bolt Tensile Tester
Slew Drive Steering Equipment Test Stand
Laser
Input Torque Check
Test procedures for the best quality of SLEW DRIVE:
