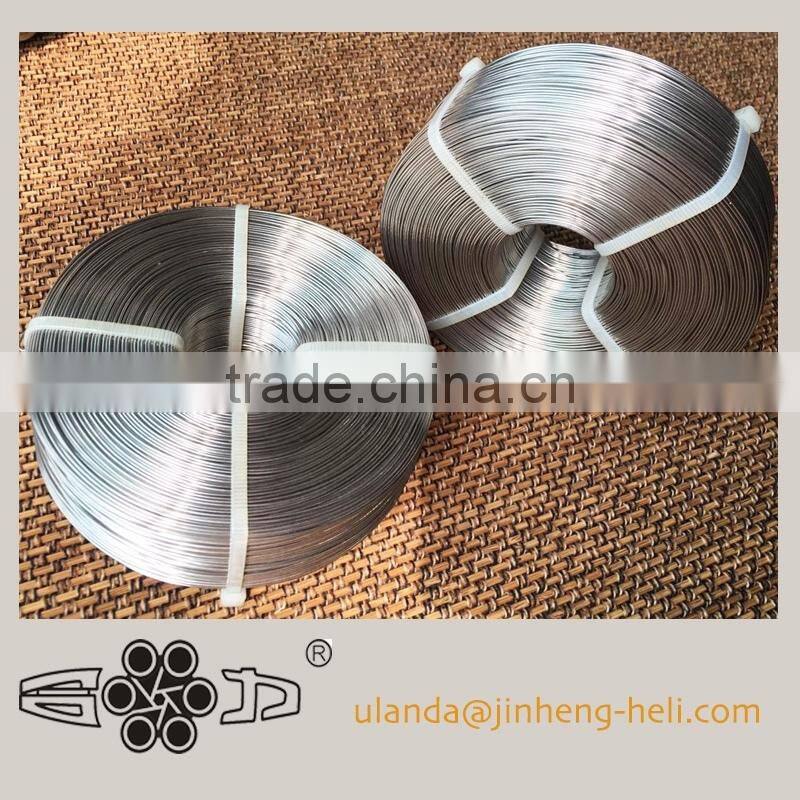

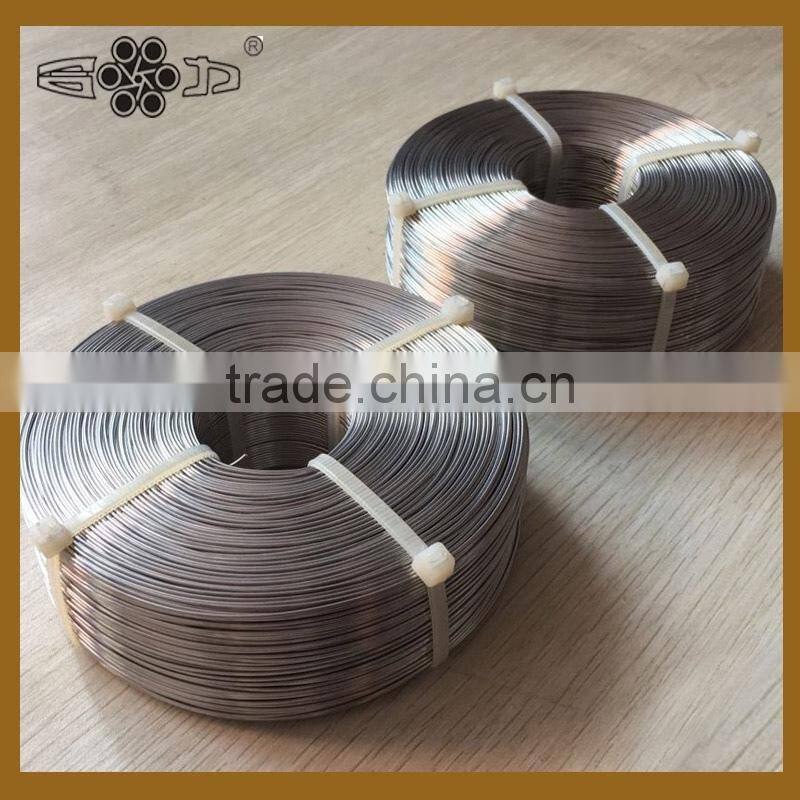

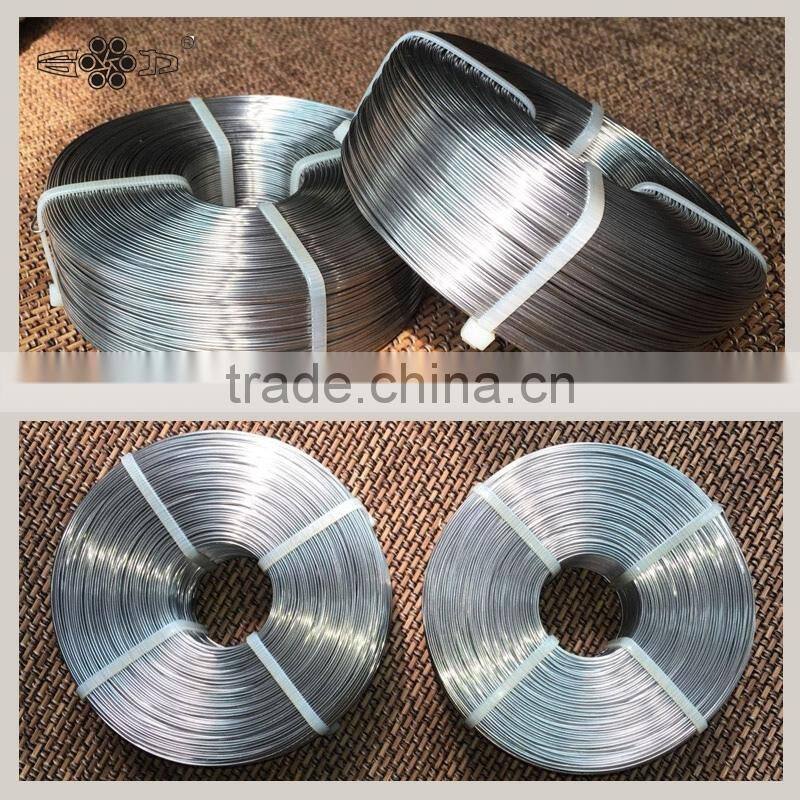

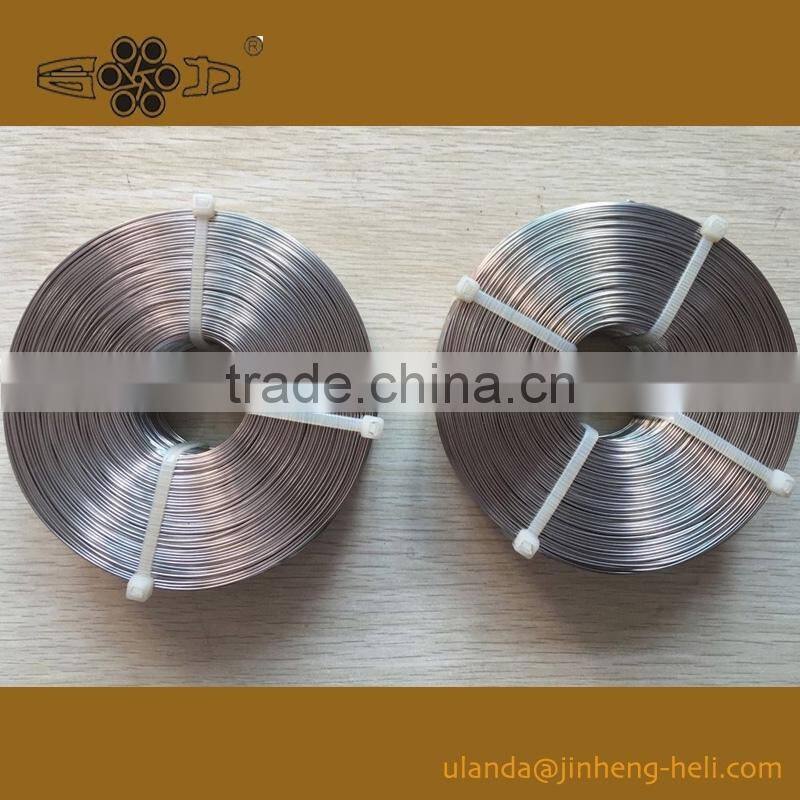

304 Stainless steel Tie wire for supporting messenger wire/strand
Stainless Steel Lashing Wire is used in a lasher to lash a cable or combination of cables to a supporting strand. It is a specially controlled annealing process, which yields a uniform, fine grain structure throughout the wire length and cross section for best results. We offer various grades of stainless steel lashing wire including 201, 302/304, 316, and 430.

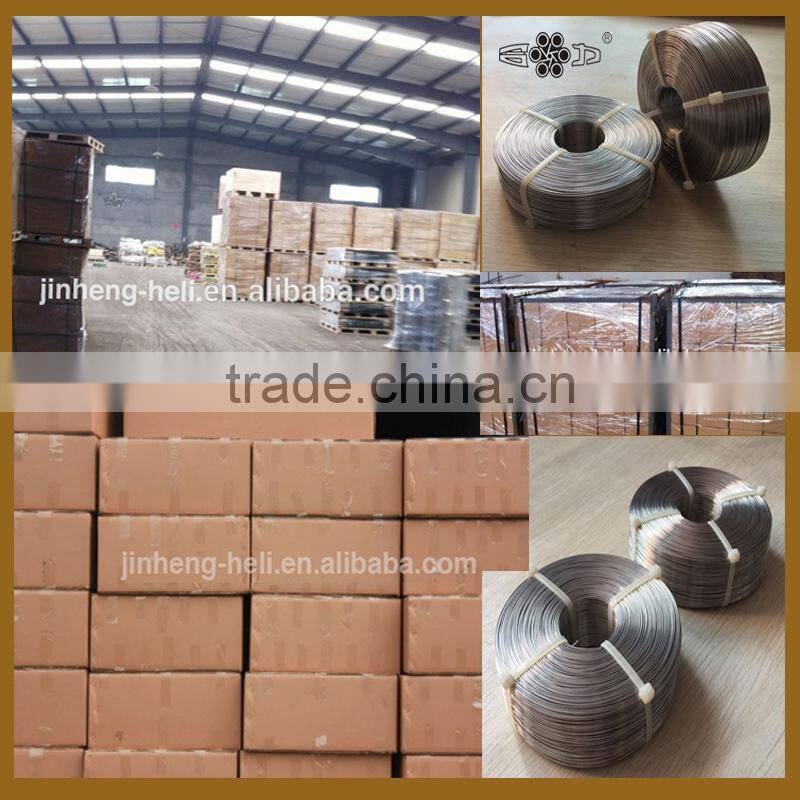

1. Standard Packaging
• Straight hub coils secured with black UV plastic (6.6 nylon) cable ties.
• Strong cartons with 6 coils. Cartons measure 12" x 6" x 6".
• Individual boxes can be shipped via express or common courier
• 1/2 pallets include 42 cartons
• Full pallets include 84 cartons
*Note: We can mix sizes within 1/2 or full pallets
2. Customized Packaging
Please call us to discuss your requirements. We can drop ship and/or place private labels on cartons if requested.
More important information for YOU:
3) Our lashing wire is packaged as 6 coils per carton for your ordering convenience.
4) Is available in a 430, 302, 304, 316, 201 and other stainless steel alloy
5) Wire size: 0.8-1.60mm
6) Surface: Bright, Silvery White
7) Temper: Soft Annealed
Type 430 Stainless
• Low carbon, 17% chromium wire
• Suitable for general use and in ordinary atmospheric exposure
• Will acquire only a dark surface stain
• Specifically not recommended for use within 25 miles of salt water or industrial operations which emit pollutants
Type 302 Stainless
• 18% chromium, 8% nickel analysis
• This wire has excellent resistance to corrosion from industrial atmospheres
• Its higher tensile strength and breaking load are an added benefit
• A .038 in. diameter Type 302 wire provides strength equal to a .045 in. type 430 wire with better ductility (easier bending and unwinding) and better elongation (less chance of wire breakage from stress)
Type 316 Stainless
• Modified 18-10 analysis containing approximately 2.5% molybdenum
• More resistant to the corrosive action of most chemicals, including chlorides and sulfides, than any other wire
• Particularly resistant to pitting and pin hole corrosion of the kind commonly caused by salt spray
• Its use provides the best insurance against failure under the most severe atmospheric conditions
• All lashing wire is wound in a straight hub configuration to fit all the standard lashers
P/N |
Alloy |
Dia. |
Ft. Coil |
Mtr. Coil |
Wt. Coil |
HL800-001 |
430 |
45 |
1200 |
365.8 |
6.5 lbs. |
HL800-002 |
430 |
65 |
650 |
198.1 |
7.5 lbs. |
HL800-003 |
430 |
65 |
450 |
137.2 |
5.3 lbs. |
HL800-004 |
302 |
45 |
1200 |
365.8 |
6.3 lbs. |
HL800-005 |
316 |
45 |
1200 |
365.8 |
6.4 lbs. |
HL800-006 |
302 |
38 |
1600 |
487.7 |
6.3 lbs. |
HL800-007 |
430 |
0.091 |
350 |
107.0 |
6.0 lbs. |
HL800-008 |
316 |
0.065 |
450 |
137.2 |
5.3 lbs. |
HL800-009 |
304 |
0.045 |
1200 |
365.8 |
6.4 lbs. |
