J21S Series Power Press

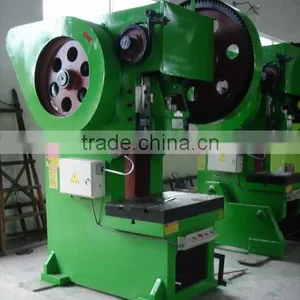

J21S Series Power Press thumbnail-1

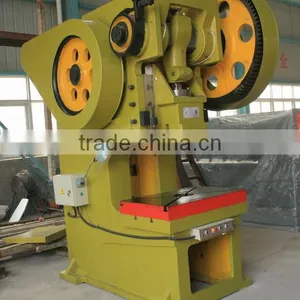

J21S Series Power Press thumbnail-2
J21S Series Power Press thumbnail-3

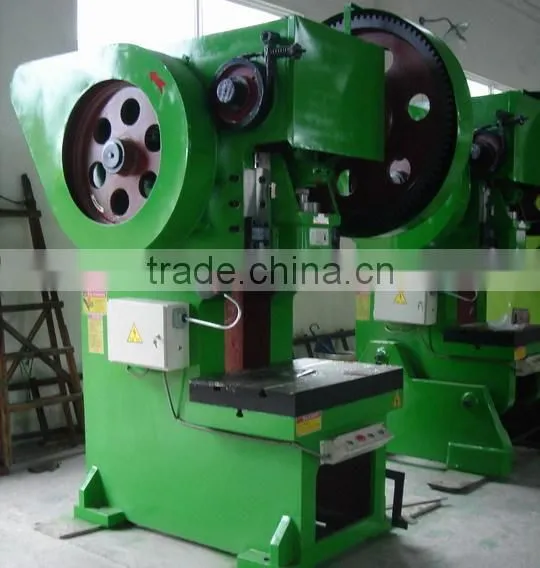

J21S Series Power Press photo-1
J21S Series Power Press photo-2

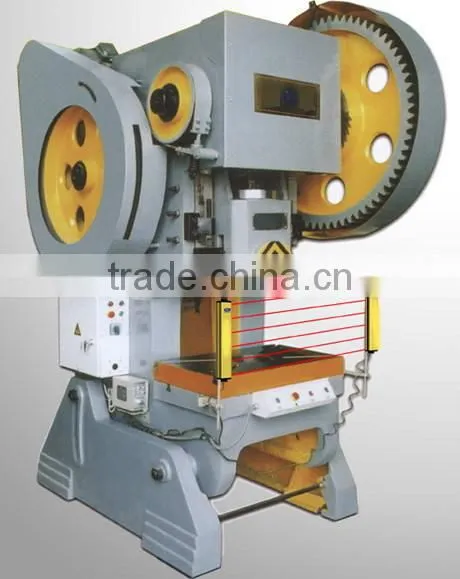

J21S Series Power Press photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Contact Supplier Request Quote Chat Now
Maanshan Jinheng International Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Nanjing Wuhu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China



Main features of J21S series deep-throat power press



Adopts horizontal placed crankshaft

Rigid rotated bond clutch

Manual shut height adjustment with scale display

Equipped with emergency stop device, which could make the slide stop at 0°~135° area;

Light curtain protector is optional

Big throat depth, providing larger work space



Main technical data of J21S series deep-throat power press

TECHNICAL DATA

J21S-6.3

J21S-10

J21S-16

J21S-25A

Capacity

kN

63

100

160

250

Nominal Force

mm

2

2

2

2.5

Slide Stroke

mm

35

60

70

80

SPM

min-1

170

145

125

60

Max. Die Height

mm

110

130

170

180

Die Height Adjustment

mm

30

35

45

70

Distance Between Slide Block Center to Frame

mm

700

700

700

700

Dimension of Worktable

mm

200×310

240×360

320×480

400×600

Bore Size on Worktable

mm

Φ60

Φ120×20×Φ100

Φ100

Φ120

Thickness of Worktable

mm

40

50

60

70

Dimension of Hole on Worktable

mm

Φ140×110×160

Φ130×90×180

Φ210×160×240

200×200

Dimension of Slide

mm

120×140

150×170

180×200

210×250

Shank Hole

mm

Φ30×55

Φ30×55

Φ40×60

Φ40×70

Distance Between Columns

mm

162

182

220

350

Motor Power

kW

0.75

1.1

1.5

2.2

Outline Size (FB×LR×H)

mm

1540×700×1525

1620×730×1800

1680×840×1880

1790×990×2288

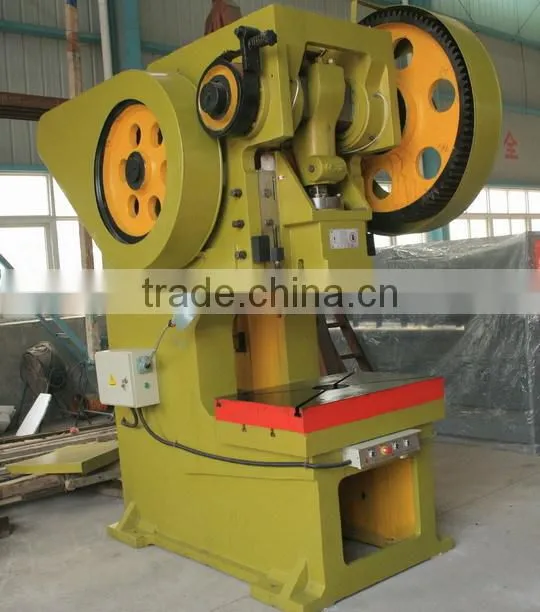

 J21S series power pressJ21S series power pressJ21S series power press
