PengDe Rubber Plastic Co, Ltd
(ISO 9001:2008 Certified)
Was established in 2004,Locater in Foshan China.Having two factories which are foshan PengDe Polurethane Products Factory and GuangZhou PengDe Rubber Roller Factory,we specialize in researching & manufacturing high performance casting mold polyurethane elastomer (CPU)products, thermoplastic polyurethane elastomer(TPU) Producys and rubber rollers.
Meeting SGS and RoHS Certification,we have earned our reputation worldwide with more than 12 years experience in this fild.
---------------------------------------------------------------------------------------------------------
Product message
Name | Size(mm) | Color |
PU squeegee | 5*25*3000/4000 |
Any color Such as natural, Red yellow blue Green tea coffee |
5*35*3000/4000 | ||
7*25*3000/4000 | ||
7*42*3000/4000 | ||
7*50*3000/4000 | ||
9*42*3000/4000 | ||
9*50*3000/4000 | ||
10*50*3000/4000 | ||
10*10*3000/4000 | ||
5*20*3000/4000 | ||
5*17*3000/4000 |
Screen printing squeegee blade | |
Hardness Range | 50A,60A,65A,70A,75A 80A,90A,95 Shore A,etc |

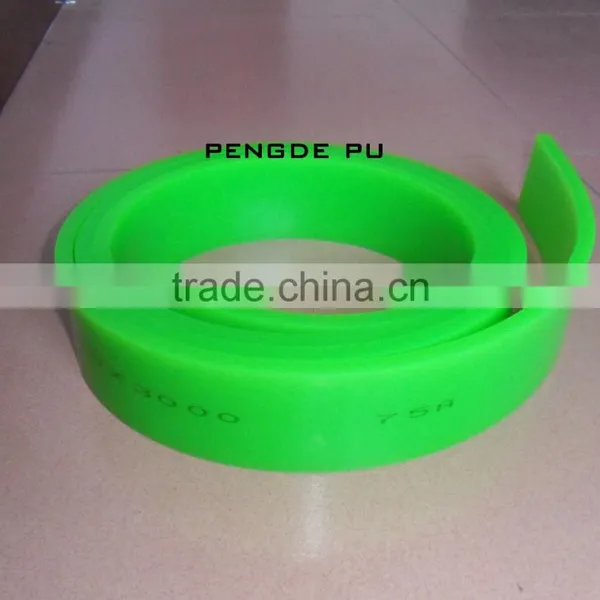

Roll length | 4000mm, 3100mm |
Color | Red, Green, Blue, Yellow, White, Coffee, Pink and so on. |
Standard Profile | Straight Square Edge, Double Bevel, Single Bevel |
Feathers | Anti-solvent resistance, abrasion resistance |
Application | A wide range of screen printing industry |

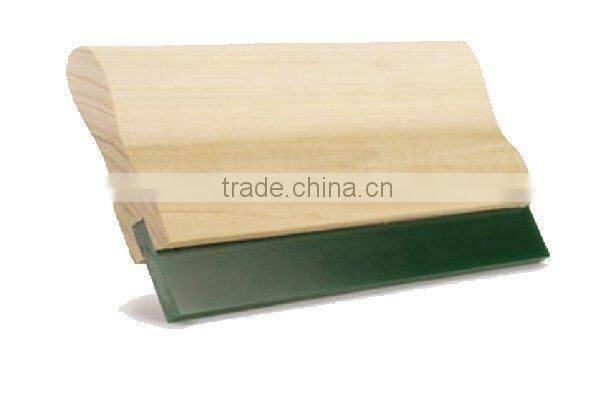

Handle | Wooden, aluminum handle are available |
Customized color, size, hardness, edge both are available. | |
---------------------------------------------------------------------------------------------------------
Application
PENGDE Squeegee widely used in following industry:
1. Texitile Screen printing machine,
2 .Wood furniture manufacturing,
3 .Glasses or Windown Cleaning,
4 .Ceramic nad Sanitaryware industry machine,
5. Stickled film industry,
6. Scraper Film, etc.
7.Printing industry.
To achieve a good print result, particular attention needs to be paid to the most important parameters in rotary screen printing. The key factors influencing this printing method are the type of screen plate, the ink, the squeegee and the flow path. The article in this edition looks at the squeegee, because this is the parameter that press operators are best able to influence themselves in screen printing. The important requirements for the squeegee are to ensure the rubber is of the appropriate hardness, to print with the best possible squeegee edge and to find the optimum squeegee position.
PENGDE Squeegee made of special polyurethane elastomer have the following advantages:
1.High abrasion resistance and tear resistant better elasticty resulting in prints of uniformly high quality material.
2.Excellent resistance and minimum swell to a wide range of pastes,inlss and solvents.
3.Precisely finished edge.
4.Perfect solvent resistance.
5.Long service life.
Squeegee Features
In most cases, the squeegee rubber is made of polyurethane (PU, DIN abbreviation: PUR). Polyurethanes are plastics or synthetic resins that, depending on the manufacturing method, can be hard and brittle but also soft and elastic. These different PU properties are reflected in the different hardness grades of the squeegee rubber, which are indicated using the Shore system. Squeegee rubbers with three different Shore hardness grades – 55-60, 65-70 and 70-75 – are used for rotary screen printing. The lower the Shore figure, the softer the squeegee rubber. The individual hardness grades are also identified by different colours. Shore 55-60 rubbers are yellow or white, Shore 65-70 rubbers are red and Shore 70-75 rubbers are green.
---------------------------------------------------------------------------------------------------------
PU Products With excellent anti-abrasion and high elasticity, main to reduce pressure from outside parts.
It widely used as Cushion, Anti-Pressing and Heavy Load parts .
Plus good combination performances, wear resistance, chemical resistance, perfect mechanical strength and long elongations.
1. High elasticity
2. High load-bearing capacity.
3. Abrasion resistance
4. Corrosion resistance
5. Shock resistance .
6. High Vibration and damping characteristics.
Made with high quality polyurethane material by mould cast, good chemic erode resistant, impregnant resistant, aging resistant, high tear resistant and low compression set etc. The abrasion resistant is 5 multiple more than pure natural rubber and the oil resistant is 3-5multiple more NBR rubber.
PU Products With excellent anti-abrasion and high elasticity, main to reduce pressure from outside parts.
It widely used as Cushion, Anti-Pressing and Heavy Load parts .
Plus good combination performances, wear resistance, chemical resistance, perfect mechanical strength and long elongations.
---------------------------------------------------------------------------------------------------------
We could customize as per customer's samples and requests
Assistance from first idea through prototype
Quick delivery of prototype or production need
Design assistance and parts consolidation
In-house formulation to provide the best possible urethane for your application
Over 10 years of in-house experience.
the different field with different special require, as hardness, abrasion resistance, erode resistance ect. So that if you don’t know well this products, please ask more before you order.
