barbed wire price per ton describtion:
PVC Coated Barbed Iron Wire is that the wire covered with vinyl. The PVC layer not only has a positive effect on the strength and toughness of the material, but also reduces the risk of rust. It also can reduce the wear between layers when operating. PVC coated barbed wire is the ideal type for ocean engineering, irrigation machines and big excavators.

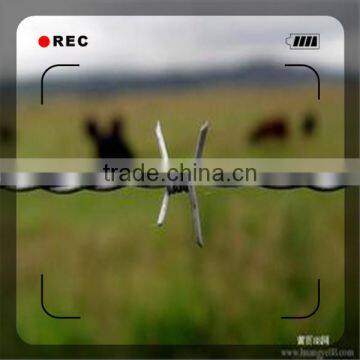

Our PVC coated barbed wire consists of 2 twisted wires with 4 spikes, spaced 65mm-120mm apart from each other.
PVC Coated Barbed Iron Wire can be galvanized iron wire or black annealed iron wire.
- A variety of colors like green, blue, yellow, orange, gray, is available with PVC Coated Barbed Iron Wire produced by us.
- Tensile strength of Standard PVC Coated Barbed Iron Wire is 30-45 kgs./sq.mm.
- Packing: In coil of 25 kilos or 50 kilos net, lined with P.V.C strips, then wrapped with P.V.C or hessian cloth.
1> Specification
Polymeric coating (green RAL 6005).
Inside wire: galvanized wire
PVC coating thickness: 0.4mm -0.6mm
Twisted wire diameter:
Inside wire diameter: 1.6mm -3.5mm,
Outside wire diameter: 2.0mm -4.0mm
Thorns wire diameter: 1.5mm -3.0 mm.
Package: 50m, 100m, 250m, 400m/coil or 30kg-50kg/coil
Gauge of |
Approximate Length per Kilo in Meter |
|||
Barbs Spacing 3" |
Barbs Spacing 4" |
Barbs Spacing 5" |
Barbs Spacing 6" |
|
12x12 |
6.0617 |
6.7590 |
7.2700 |
7.6376 |
12x14 |
7.3335 |
7.9051 |
8.3015 |
8.5741 |
12-1/2x12-1/2 |
6.9223 |
7.7190 |
8.3022 |
8.7221 |
12-1/2x14 |
8.1096 |
8.814 |
9.2242 |
9.5620 |
13x13 |
7.9808 |
8.899 |
9.5721 |
10.0553 |
13x14 |
8.8448 |
9.6899 |
10.2923 |
10.7146 |
13-1/2x14 |
9.6079 |
10.6134 |
11.4705 |
11.8553 |
14x14 |
10.4569 |
11.6590 |
12.5423 |
13.1752 |
14-1/2x14-1/2 |
11.9875 |
13.3671 |
14.3781 |
15.1034 |
15x15 |
13.8927 |
15.4942 |
16.6666 |
17.5070 |
15-1/2x15-1/2 |
15.3491 |
17.1144 |
18.4060 |
19.3386 |

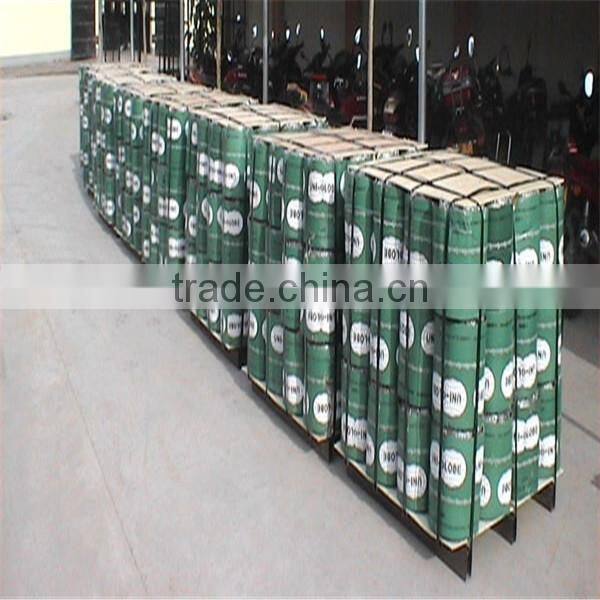

2> PVC coated Barb wire packing
In bulk packing
Pallet packing
Wood handle packing
Iron handle packing

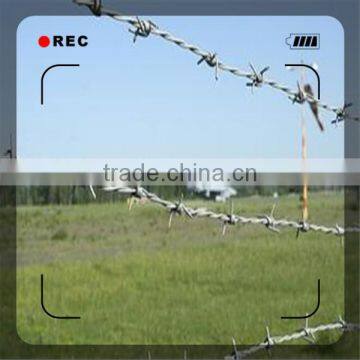

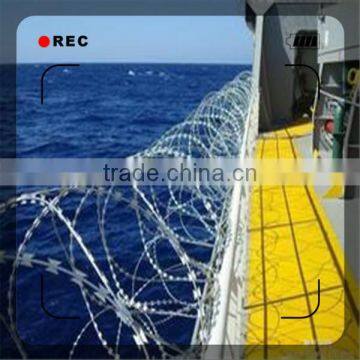

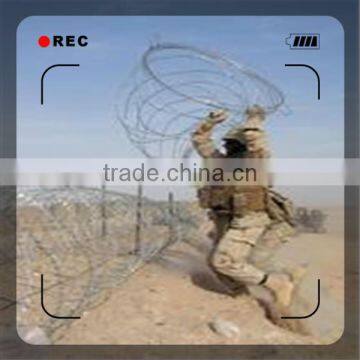

3> PVC coated barbed wire application
Management Conception:Honesty/Aggressiveness/Innovation/Perfection
Honesty--Based on sincerity,treat people honestly
Aggressiveness--Exploring and developing,creating new height
Innovation--Creative work,get rid of the sale and bring forth the fresh
Perfection--Pursue the perfect value,set up the perfect image
