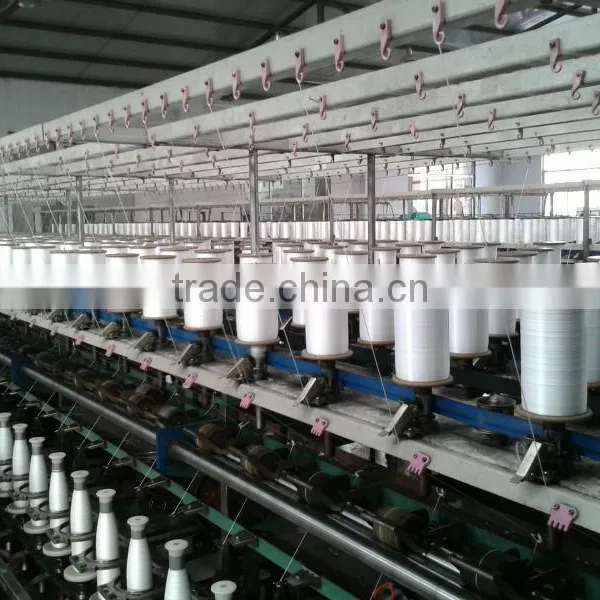

Chemical Fiber Two-For-One Twisting Machine

Name: Chemical Fiber Two-For-One Twisting Machine
Brand: JUNCHI
SKU: 139726883
Availability: InStock

US$ 10,000 - 20,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

PP YARN TWISTED TO TWINE

Type:

Two-for-one Twister

Tengzhou Junchi Textile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application PP YARN TWISTED TO TWINE

Type Two-for-one Twister

Place of Origin Shandong, China

Brand Name JUNCHI

Model Number JCI2009

Spinning Method Ring Spinning

Automatic Yes

Dimension(L*W*H) 16800*1000*1900mm

Weight 5.5TONS

Power(W) 220

Certification CE AND ISO9001

After-sales Service Provided No overseas service provided

Specifications

Chemical Fiber Two-For-One Twisting Machine
1. Low power consumption;
2.Good performance;
3.Quickly delivery;
4.CE,ISO

Chemical Fiber Two-For-One Twisting Machine

Specification:

Type	Double-faced double-deck dragon	Spindle speed	3000-10000RPM(according to different yarn)
Number of spindles	420 pounds (upper) 140pounds(lower)	Twist range	60-1000 twist per meter
	360 pounds (upper) 180 pounds(lower)	Twist	Computer control filament twist is S to Z could be
Spindles pitch	162mm		Computer control filament twist is Z to S could be
The inner diameter of steel	98mm/115mm/140mm	Forming mode	Computer control of molding
Doublings	2-3roots	Motor power	The main motor 12.6kw,guide roller motor 2.2kw
Max roll weight	1000-1200grams(according to different yarn)	Machine size	1680010001900mm
		The whole machine weight	5.5tons
