Advanced machines Z41H-16C Gost Cuniform WCB carbon steel gate valve
1. Design and Manufacture Conform to MSS SP-85
2. Flange dimensions Conform to ANSI B16.1(1251b)
3. Face to Face dimensions
Advantages Details:
1. Design and Manufacture Conform to MSS SP-85
2. Flange dimensions Conform to ANSI B16.1(1251b)
3. Face to Face dimensions Conform to ANSI B16.10(1251b)
4. Testing Conform to MSS SP-85
5. It can be operated with bevel gear according to customer’s requirement.
6. Suitable media: water, oil, gas.
Design&Manufacture Standard Details:
1.Design standard:API 6D/API600,JIS B2073-2083,BS1414
2.Face to Face:ANSI B16.10,JIS B2002
3.Tubing flange:ANSI B16.5,JIS B2212-2214
4.Inspection&Test:API6D/API598,JIS B2003

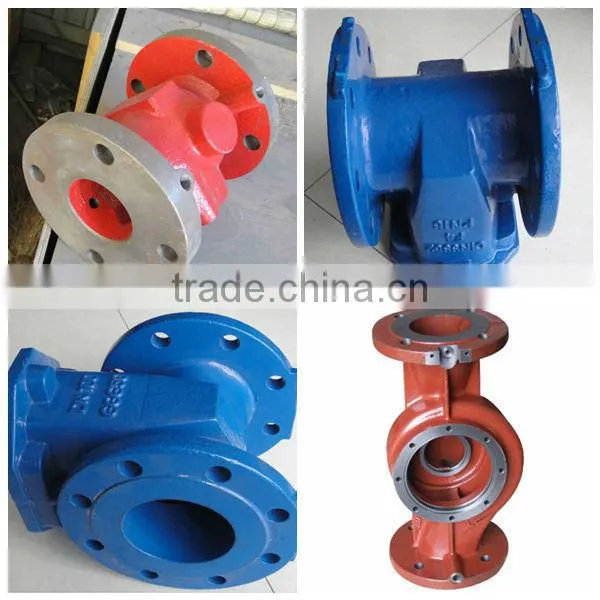

Item Details: This is the mould of one of our product, just let you know our production range, the product also designed by customers
PROCESS |
MATERIAL |
STANDARD |
|
|
SAND CASTING |
Green Sand |
Grey Iron, Ductile Iron, Malleable Iron, Stanless Steel, Carbon, Steel, Aluminium,Brass,Bronze |
ASTM BS JIS DIN etc |
Furan Resin Sand | |||
Cold Harden Resin Sand | |||
|
INVESTMENT CASTING |
Sodium Silicone (Water galss) |
Stainless Steel, Carbon Steel, Special Alloy Steel Bronze,Brass, Aluminum |
|
Silica Sol | |||
FORGING |
Hammer Forging |
Stainless Steel, Carbon Steel, Alloy Streel, Brass, Aluminum |
|
Die Forging | |||
Roll Forging | |||
STAMPING MACHINING |
Stamping Machining |
All metal material |
|
NO. |
Parts name |
Material |
|
Stainless Steel |
Cast Steel |
||
1 |
Body |
A351 CF8 |
A216 WCB |
2 |
Disc |
A182-F304 |
2Cr13 |
3 |
Stem |
A182-F304 |
A182-6a |
4 |
Disc cover |
A182-F304 |
2Cr13 |
5 |
Spiral wound gasket |
PTFE |
Flexible Graphite |
6 |
The seal seat |
F304 |
2Cr13 |
7 |
Valve Cover |
A351-CF8 |
A216-WCB |
8 |
Bolt |
A193-B8 |
A193-2H |
9 |
Nut |
A194-8 |
A194-2H |
10 |
Packing |
PTFE |
Flexible Graphite |
11 |
Press kit packing |
Cf8 |
2Cr13 |
12 |
Packing plate |
Cf8 |
A216-WCB |
13 |
Pin |
410 |
35 |
14 |
Bolt |
A193-B7 |
A193-B7 |
15 |
Stem nut |
ZCuA110Fe3 |
ZCuA110Fe3 |
16 |
Screw |
410 |
A105 |
17 |
Hand wheel |
KTH300-8 |
KTH300-8 |
18 |
Nameplate |
L2 |
L2 |
19 |
Nut |
B8 |
A194-2H |
20 |
Washer |
410 |
Q235A |

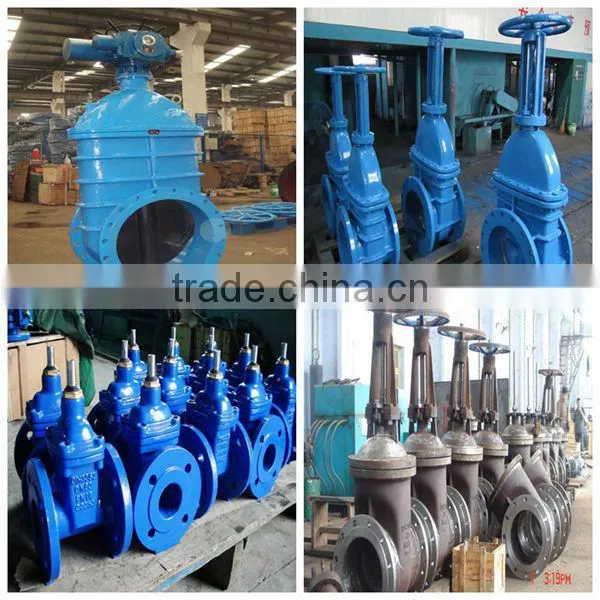

Products Details:

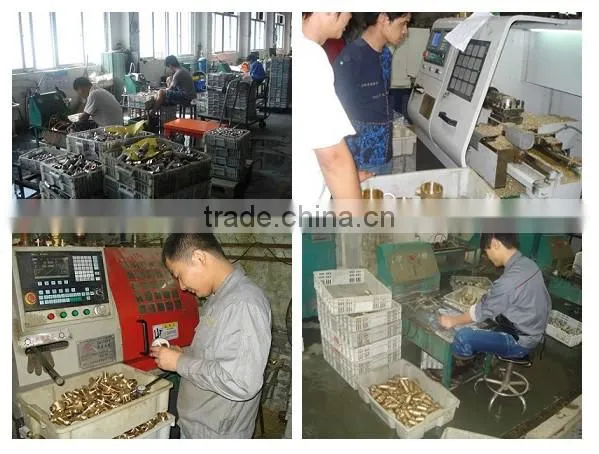

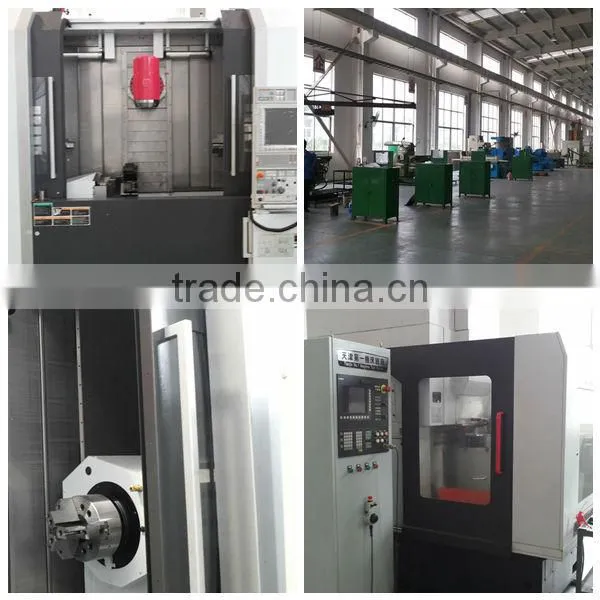

Workshop Details:
