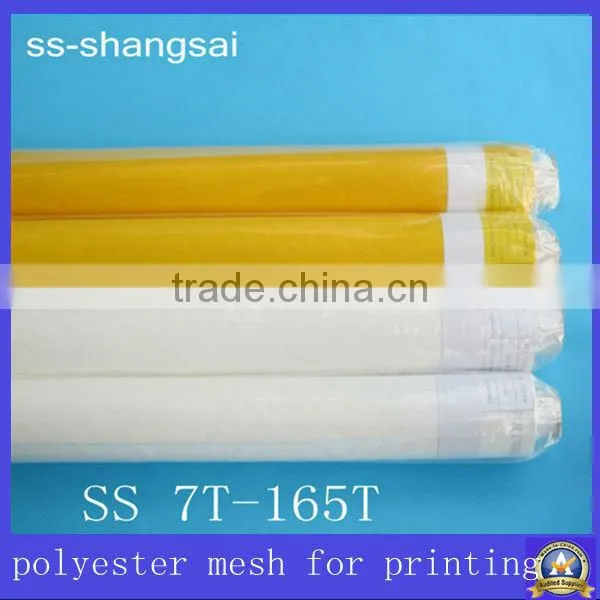

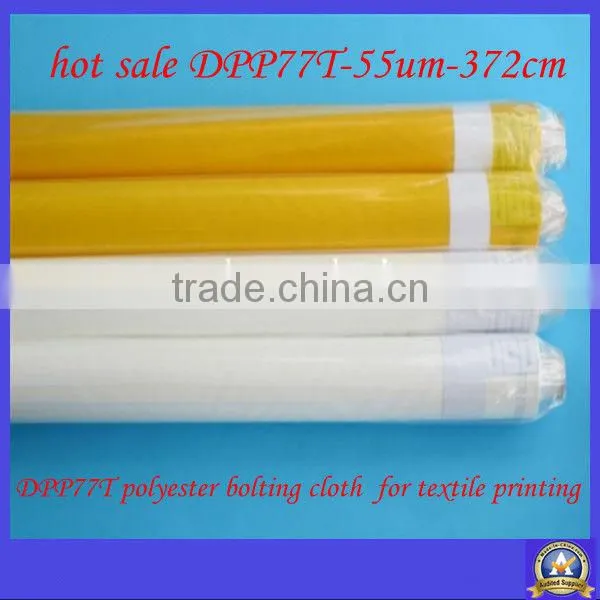

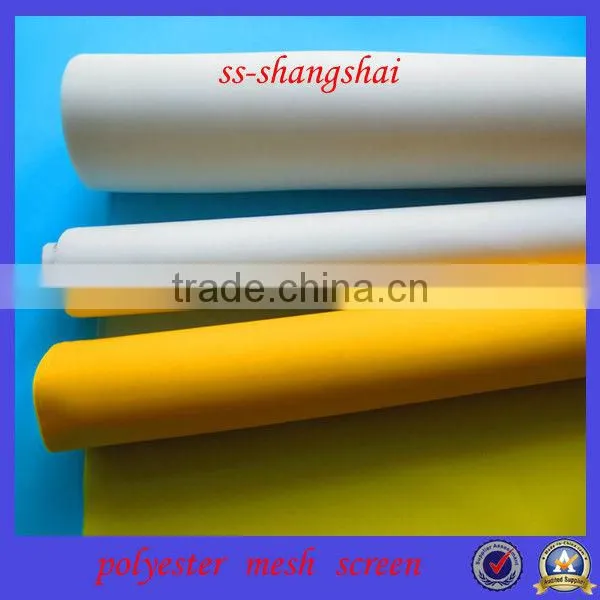

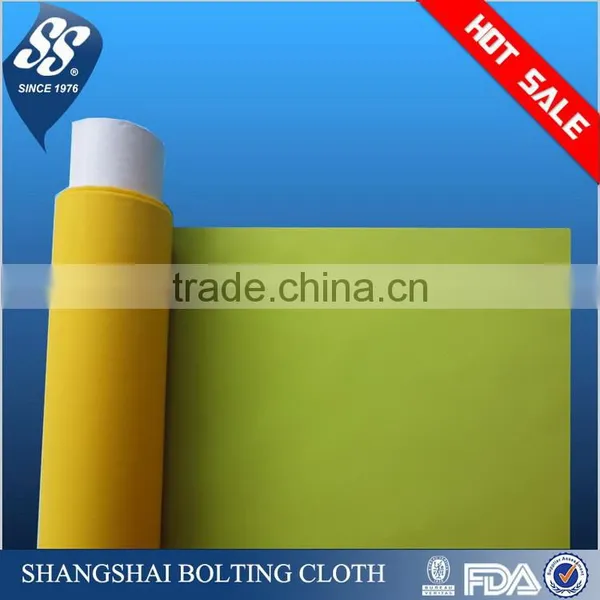

Monofilament 8~165t Mesh Polyester Printing Mesh Fabric

Monofilament 8~165t Mesh Polyester Printing Mesh Fabric thumbnail-1
Monofilament 8~165t Mesh Polyester Printing Mesh Fabric thumbnail-2
Monofilament 8~165t Mesh Polyester Printing Mesh Fabric thumbnail-3
Monofilament 8~165t Mesh Polyester Printing Mesh Fabric thumbnail-4
Monofilament 8~165t Mesh Polyester Printing Mesh Fabric thumbnail-5
Monofilament 8~165t Mesh Polyester Printing Mesh Fabric thumbnail-6
Monofilament 8~165t Mesh Polyester Printing Mesh Fabric photo-1
Monofilament 8~165t Mesh Polyester Printing Mesh Fabric photo-2
Monofilament 8~165t Mesh Polyester Printing Mesh Fabric photo-3
Monofilament 8~165t Mesh Polyester Printing Mesh Fabric photo-4
Monofilament 8~165t Mesh Polyester Printing Mesh Fabric photo-5
Monofilament 8~165t Mesh Polyester Printing Mesh Fabric photo-6
US$ 0.65 - 66 MOQ: 100 Meters
Key Specifications
Get Latest Price
Supply Type:
Make-to-Order
Type:
Other, silkscreen printing mesh
Pattern:
Other, plain weave mesh
Contact Supplier Request Quote Chat Now
Shanghai Shangshai Bolting Cloth Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai tianjin or any port within china by china carriers
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Supply Type Make-to-Order
Type Other, silkscreen printing mesh
Pattern Other, plain weave mesh
Style Plain
Width Other, 55/56"
Technics Woven
Feature Anti-Static, Blackout, Fluorescent, Heat-Insulation, Memory, Shrink-Resistant, Tear-Resistant, Other, Anti-Static, Blackout, Fluorescent, Heat-Insulation, Memory, Shrink-Resistant, Tear-Resistant, ultra wide
Use Bag, Bedding, Home Textile, Industry, Military, Shoes, Suit, Trousers, Upholstery, Wedding, Other, Bag, Bedding, Home Textile, Industry, Military, Shoes, Suit, Trousers, Upholstery, Wedding, glass, ceramic, PCB, CD
Certification EN, SGS, Other, EN, SGS, ISO9001, 14001
Yarn Count according to mesh count
Weight according to mesh count
Density according to mesh count
Model Number SS-silkscreen DPP

monofilament 20-420 mesh polyester printing mesh fabric



mesh count: DPP20~420mesh





width: 115cm, 127cm, 155cm,165cm,220cm, 260cm, 280cm, 360cm, 372cm



monofilament 8~165t mesh polyester printing mesh fabric



monofilament 8~165t mesh polyester printing mesh fabric



monofilament 8~165t mesh polyester printing mesh fabric



monofilament 8~165t mesh polyester printing mesh fabric



monofilament 8~165t mesh polyester printing mesh fabric



monofilament 8~165t mesh polyester printing mesh fabric



monofilament 8~165t mesh polyester printing mesh fabric

specifications



   Model Specification  (/cm)

Mesh count

(mesh/inch)

 Thread   Diameter     (um) Mesh opening(um) Open Area(%)
SS-PET12/686 12 30 140 686 68
SS-PET16/461 16 40 140 461 58
SS-PET20/380 20 50 100 380 62
SS-PET24/301 24 60 100 301 56
SS-PET28/263 28 70 80 263 58
SS-PET28/244 28 70 100 244 50
SS-PET32/221 32 80 80 221 53
SS-PET36/178 36 90 90 178 44
SS-PET39/183 39 99 64 183 54
SS-PET39/176 39 99 71 176 50
SS-PET43/145 43 110 80 145 41
SS-PET47/141 47 120 64 141 47
SS-PET53/118 53 135 64 118 42
SS-PET59/109 59 150 55 109 42
SS-PET61/103 61 155 55 103 41
SS-PET64/96 64 163 55 96 39
SS-PET68/87 68 173 55 87 36
SS-PET72/86 72 183 48 86 40
SS-PET80/73 80 200 48 73 35
SS-PET90/63 90 230 45 63 33
SS-PET100/51 100 254 40 51 30
SS-PET110/43 110 280 40 43 26
SS-PET120/37 120 305 40 37 18
SS-PET130/31 130 330 40 31 17
SS-PET140/32 140 350 34 32 19
SS-PET150/31 150 380 30 31 23
SS-PET165/25 165 420 31 25 16





Factory information

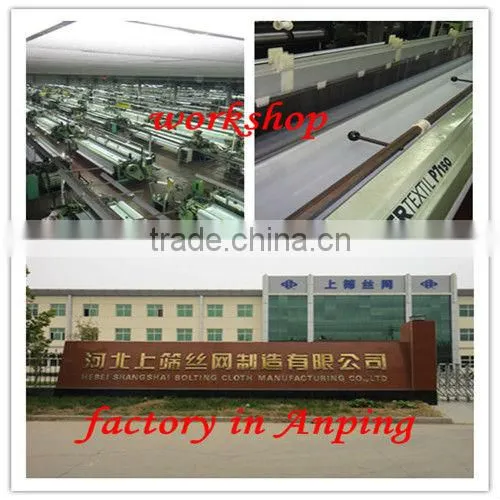

shanghai shangshai bolting cloth manufacturing co., ltd has been producing polyester and nylon mesh from 1990, now mainly has 2 types of mesh: printing and filtering. There are 2 factories of shangshai, one in shanghai and another is in hebei, which has more than 300 sulzer ruti weaving machines, benninger warping machines, cleaning machines, and shaping machines.







monofilament 8~165t mesh polyester printing mesh fabric

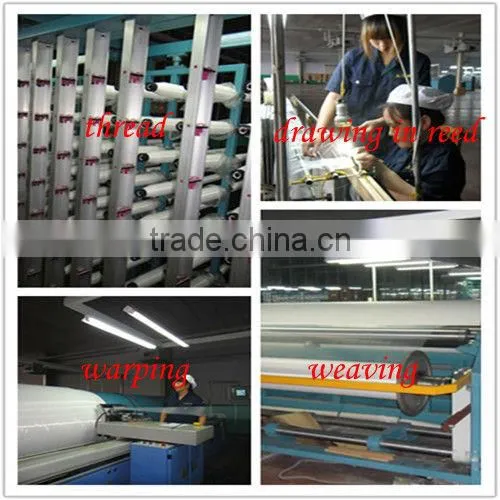

preparation before weaving



monofilament 8~165t mesh polyester printing mesh fabric

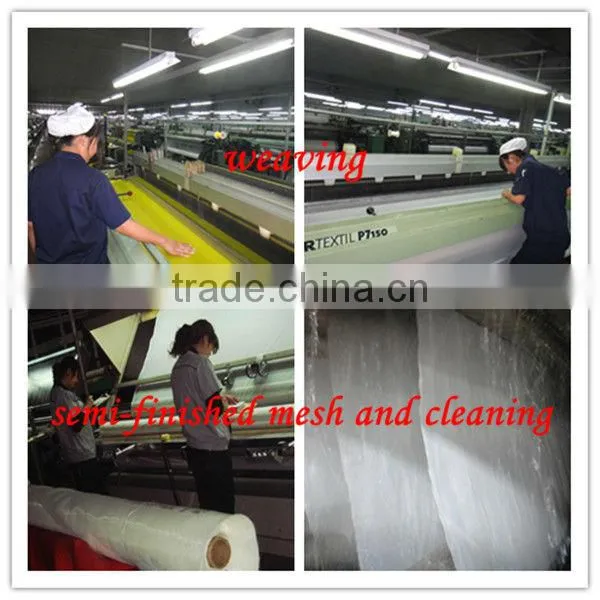

weaving



monofilament 8~165t mesh polyester printing mesh fabric

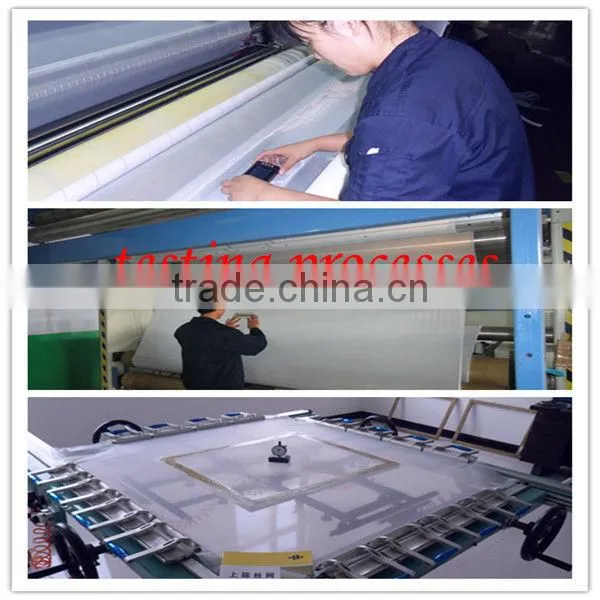

2 testing process



monofilament 8~165t mesh polyester printing mesh fabric

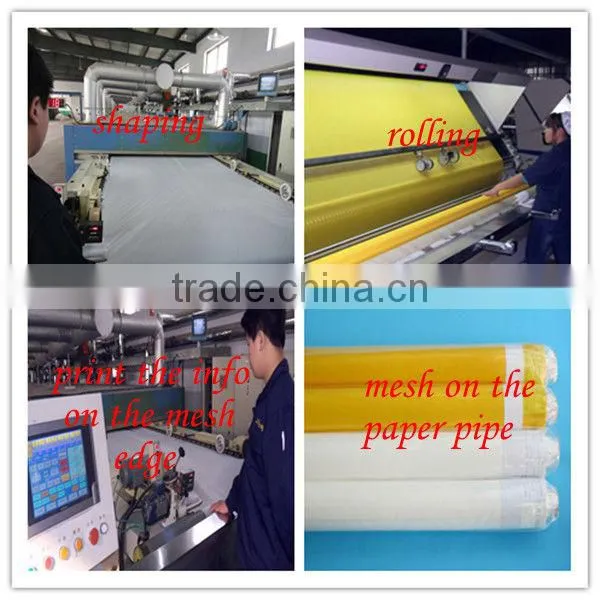

shaping and rolling



monofilament 8~165t mesh polyester printing mesh fabric

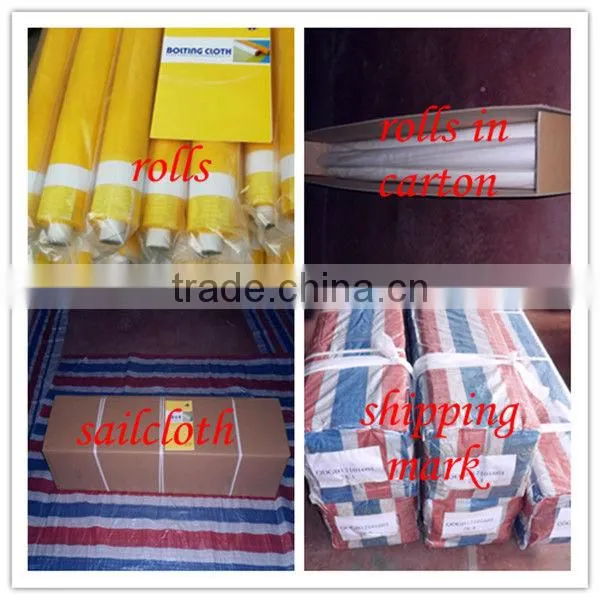

packing information



1. first in roll, then in plastic bag
2. carton with waterproof sailcloth
3. your brand with the number of meter can be printed on the mesh
4. your shipping mark can be printed on the carton

monofilament 8~165t mesh polyester printing mesh fabric







Application



our mesh is from 5T~180T, from 5cm~372cm, widely used in textile, creamic, glass, industrial fileds, further process service for the mesh can be provided if you need



monofilament 8~165t mesh polyester printing mesh fabric



other printing materials



monofilament 8~165t mesh polyester printing mesh fabric
