Specifications
ir sensor1.white/black
2.ambient light:10lux~2000lux
3.detection angle:120 degree
4.ce/gs

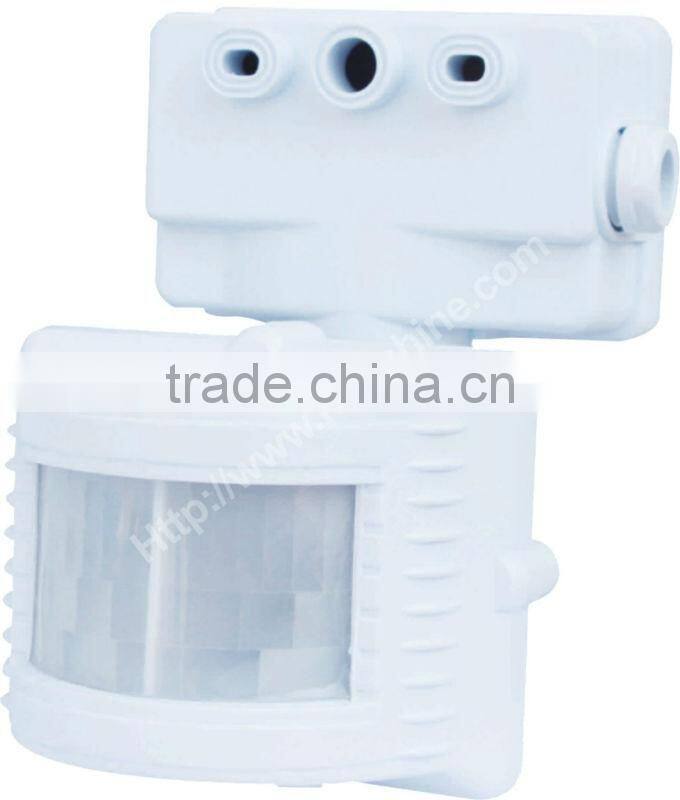

new design ir sensor price cheap
1.detail product description
1.power source:100-130v/ac 220-240v/ac
2.power frequency:50-60hz
3.ambient light:<10lux-2000lux(adjustable)
4.rated load: 1200w max.tungsten lamp(220-240v/ac)
300w max.fluorescent lamp(220-240v/ac)
800w max.tungsten lamp(100-130v/ac)
200w max.fluorescent lamp(100-130v/ac)
5.detection distance:11m(max<24°c)
6.detection angle: 120 degree
7.time delay: min: 5sec max:8min±2min (adjustable)
temperature:-20~+40°c
9.power consumption:0.45w(static0.1w)
10.installation height:2-4.5m
11.detection motion speed:0.6-1.5m/s
ing humidity:<93%rh
13.certification:ce/gs
14.waterproof:ip44
ction:
- detection field: the wide detection range is made up of up and down, left and right (see the following diagram), the detection range could be adjusted according to your desire, but the moving orientation in detection field has great relation with the sensitivity.
- identify day and night automatically: the ambient light of st09 could be adjusted according to your desire: when turn to sun (max), it will work day and night, when turn it to moon (min), it will only work in the ambient light less than 3lux. as for adjustment, please refer to testing way.
- time-delay is added continually: when it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basis (set time).
- time-delay is adjustable: it can be set according to your desire, the minimum is 10sec±3sec,the maximum is 7min±2min.
|
color
|
white/black |
|
operating voltage(v)
|
120/230 |
|
distance(m)
|
12 |
|
range
|
120° |
|
size
|
85*90 |
3.packing details
we usually use color box.if you have special packing requirements,pls inform us in advance.
| packing | color box |
| inner box(pcs) | 1 |
| outer box(pcs) | 50 |
| gross weight(kg) | 14.0 |
| meas't(cbm) | 0.061 |
ningbo hunshine international trading co.,ltd.
we have many years experience to export lighting products to more than 50 countries . if you want more detailed information of this product or related products,please contact us, we will reply as soon as possible (general in 24 hours).
