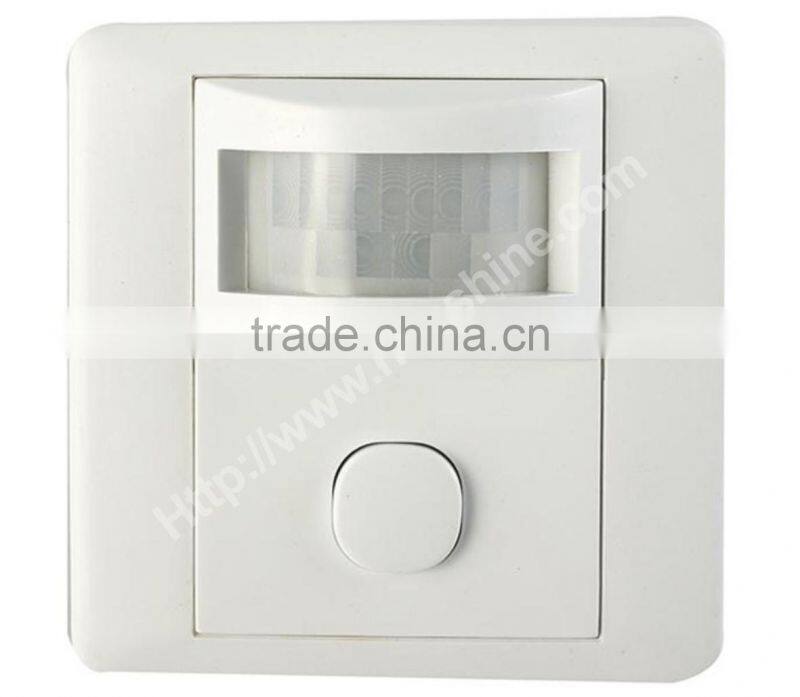

Infrared Motion Sensor Pir

Specifications

infrared motion sensor pir

1.detail description

1.power source: 110-130v/ac 220-240v/ac
2.power frequency: 50/60hz

3.power consumption: 0.45w(work) 0.1w(static)

4.detection angle: 270°

5.detection range:9m max(<24°c)

6.maximum rated load:

500w (incandescent lamp) 150w (energy-saving lamp)

7.time setting: delay times: min.:10sec±3sec max.:7min±2min

8.light control:3 to 2000lux (adjustable)

9.installation height:1~1.8m

10.ambient light:3-2000lux(adjustable)

11.detection motion speed: 0.6~1.5m/s

ing temperature: -20~+40°c

ing humidity:<93%rh

ction:

• detection field: the wide detection range is made up of up and down, left and right (see the following diagram), the detection range could be adjusted according to your desire, but the moving orientation in detection field has great relation with the sensitivity.
• identify day and night automatically: the ambient light of st09 could be adjusted according to your desire: when turn to sun (max), it will work day and night, when turn it to moon (min), it will only work in the ambient light less than 3lux. as for adjustment, please refer to testing way.
• time-delay is added continually: when it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basis (set time).
• time-delay is adjustable: it can be set according to your desire.

3.packing details

we usually use color box.if you have special packing requirements,pls inform us in advance.
