wind dust fence/anti wind fence/wind protection fence

Specifications

wind dust fence
1width:2.5m-5m
2height:0.05m-0.1m
3manufacturer ISO9001
4rich color virous type

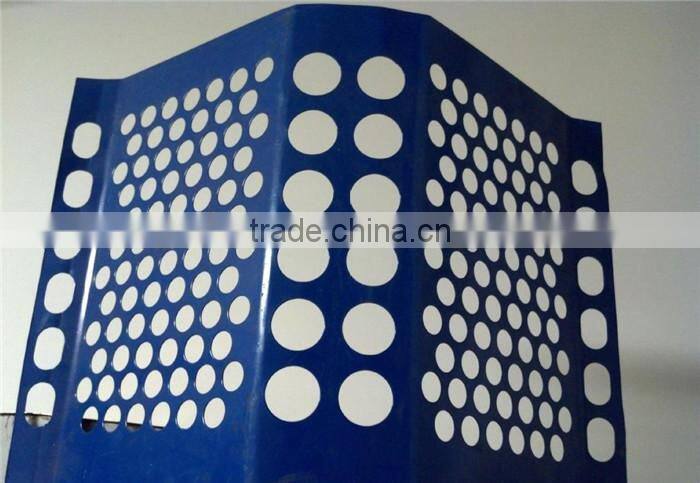

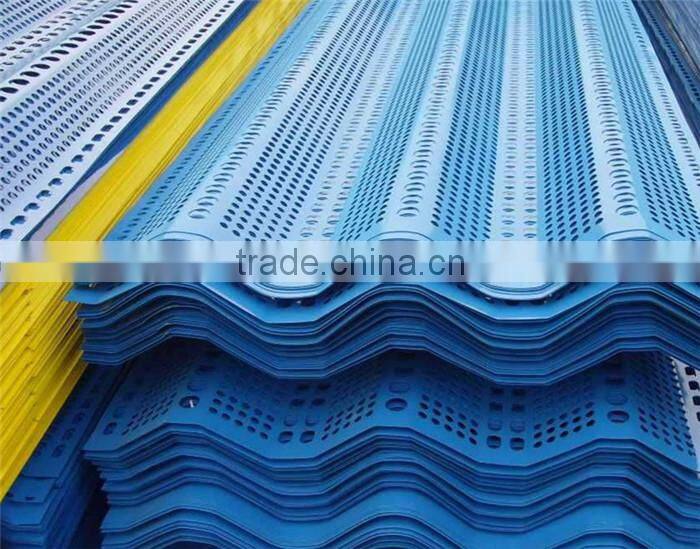

Description of Wind Dust Fence

Wind Dust Fence,made of metal mold by mechanical combination punching, pressing, spray from. High strength, anti-aging, corrosion resistance, anti-corrosion, electrical insulation, fire retardant, can be colored, a series of excellent performance and long service life, and maintenance-free, non-operating costs

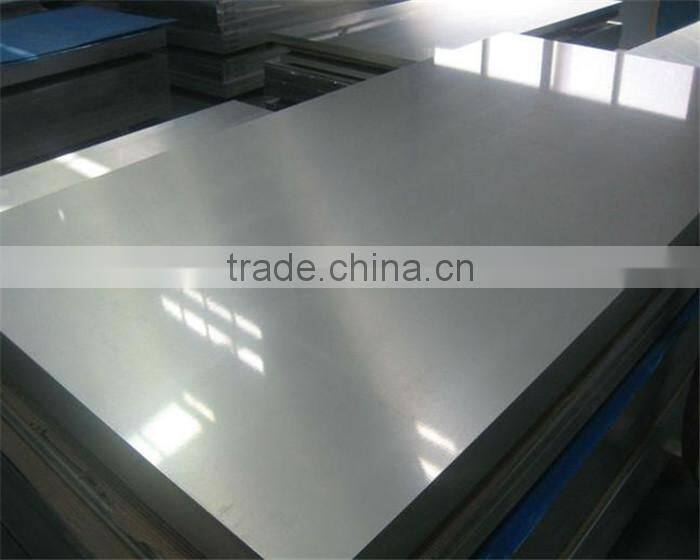

Material:Low carbon steel plate,galvanized plate,color coated steel sheet,aluminum-magnesium alloy plate, stainless steel plate

Wind dust fence includes single peak wind dust net, twins peaks wind dust net and three peaks wind dust net.

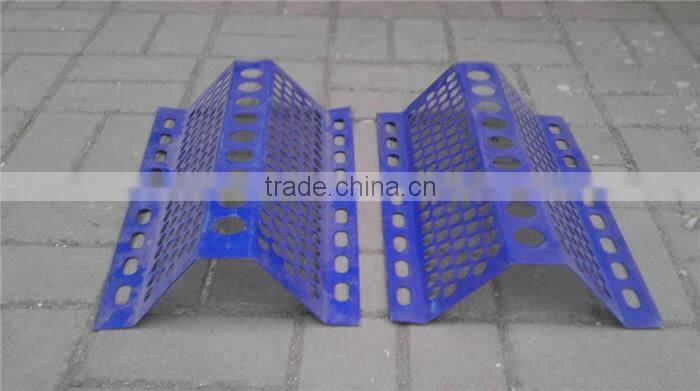

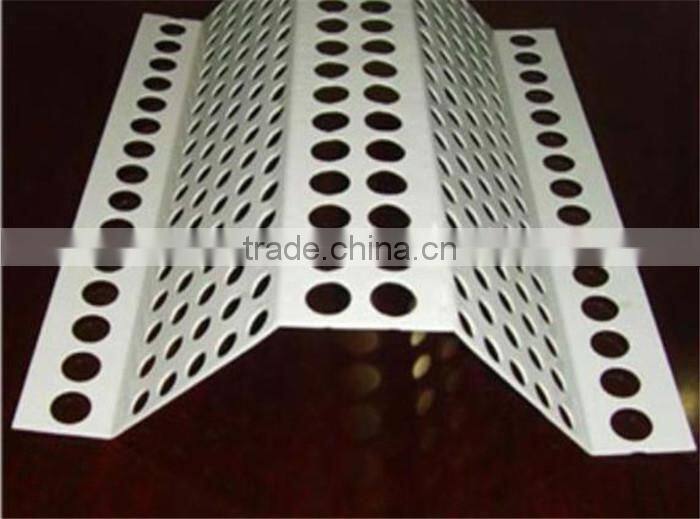

Single peak wind dust net:

Forming 250mm-500mm in width, peak of high is 50mm-100mm, Plate thickness 0.5mm-1.5mm. Length: 0-4m. We can produce according to customer's requirements.

Material: steel plate, galvanized plate, color coated sheet, stainless steel sheet.

Surface treatment: electrostatic powder coating.

Twins peaks wind dust net:

Forming 400mm-600mm in width, peak of high is 50mm-100mm, Plate thickness 0.5mm-1.0mm. Length: 0-10m. We can produce according to customer's requirements.

Material: steel plate, galvanized plate, color coated sheet, stainless steel sheet.

Surface treatment: electrostatic powder coating.

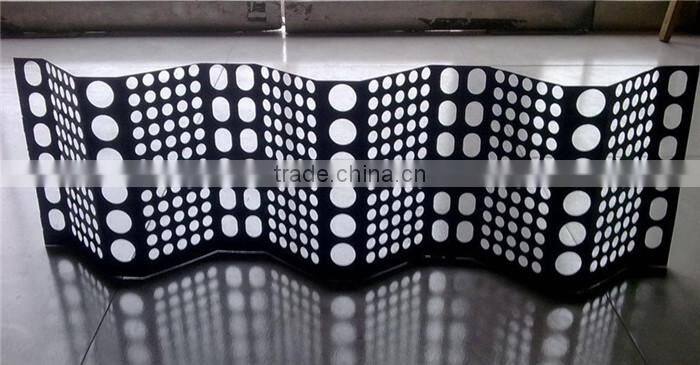

Three peaks wind dust net:

Forming 810mm in width, peak of high is 80mm, Plate thickness 0.5mm-1.0mm. Length: 0-10m. We can produce according to customer's requirements.

Material: steel plate, galvanized plate, color coated sheet, stainless steel sheet .

Surface treatment: electrostatic powder coating.

Three peaks of this specification have better advantage than above two specifications, simple installation, high-efficiency of construction, after install this construction, the wall have good overall performance, and can resistance strong wind. It reduces construction cost, and promotes competitiveness of construction organization in market. If the width is inappropriate, our company can according your steel structure size to make single peak, twins peaks of wind dust network, to easy combined.

Characteristics:

1. Can be readily formed

2. Easy installation

3. Can be painted or polished and anodizing.

4. The thickness of materials is wide range from 0.3mm-8mm.

5. Largest selection of hole size patterns and configurations

6. Uniform sound abatement,

7. Attractive appearance,

8. Light weight,

9. Durable,

10 Superior abrasion resistances

11. Accuracy of size

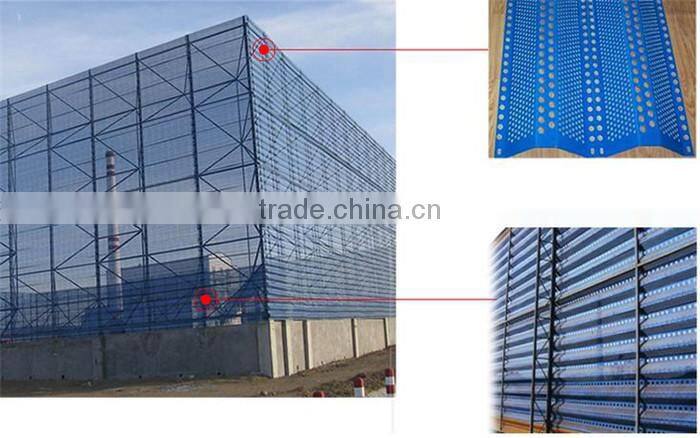

Applications

(1)Power plants, coal mines, coking plants,and other enterprises plant reservoir coal yard,

(2)Ports, docks coal storage yard and various kinds of materials yard,

(3)Steel, building materials, cement and other enterprises of all sorts of outdoor yard,

(4)Railway and highway transportation station coal storage yard,

(5)Construction site, road engineering temporary building field.



Packaging Detail: wind dust fence packing in bulk with 10 pcs or packing with pallet 100pcs . customer's suggestions are accepted with pleasure

Delivery :7-15 days
