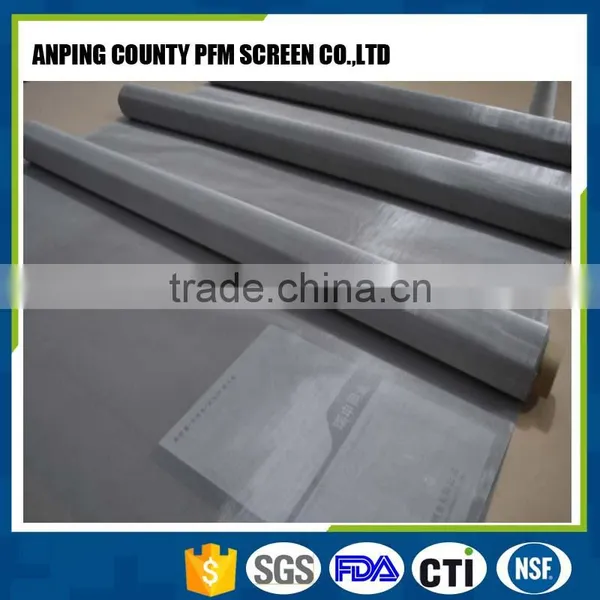

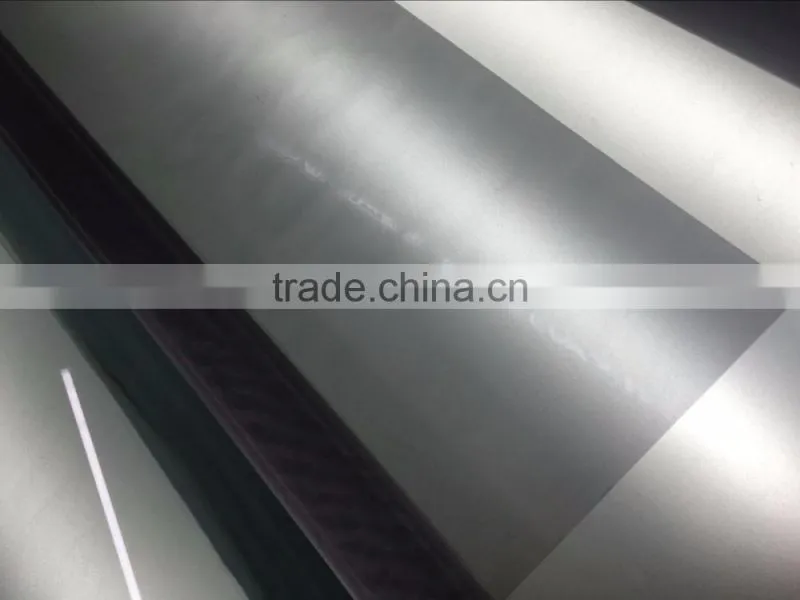

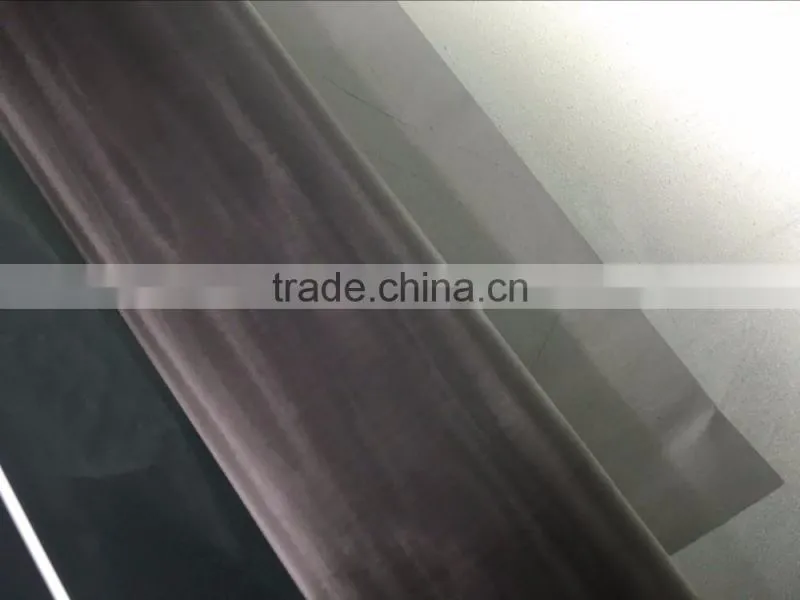

Stainless steel printing mesh
This mesh uses a wire imported from Japan,which has 2 times higher tensile strength compared to the common domestic wires and an extremely low elongation rete of 3-5%.This screen printing mesh shows extraordinary performance in printing that requires fine patterns and dimensional accuracy.
Material:SUS304N,304HPS,316L
Weave:plain
Thread diameter:18-120micron
Mesh/inch:80-400mesh/inch
Features of stainless steel printing screen
1:High tension.Much higher tension than common polyester mesh,and this property is very stable.
2:Super precision.Uniform wire diameter and aperture with extremely low difference
3:Low elongation. Very small elongation of wire mesh at hjgh tension
4:High flexbility.The wire mesh will not lose elasticity at extreme tension.
5:High corrosion resistance.The excellent corrosion resistance of stainless steel wire exceeds polyester fiber
6:Non-electrostatic.To avoid affects of nonelectrostatic for printing and ensure the safety of printing
7:Good heat- melt resistance.Special features of steel wire mesh.Suitable for heat-melting ink
8:Good solvent resistance.To avoid the affects of any solvents to wire mesh and to ensure the safety of printing.
PFM Screen CalenderMesh
This process enables mesh to achieve thinner thickness that is not possible with a regular woven screen.Our process technology enhanced thickness uniformity/flat lying characteristics of mesh to achieve smoother squeegeeing.This stainless steel printing screen shows its capabilities in improving uniformity of film thickness,reducing printing thickness,superior edge defination,and printing dimensional accuracy.
Application of stainless steel printing mesh
PFM Screen super mesh is used to Chip Electrical Components,SolarBattrey,Flat Panel Display(FPD),liquid Crystal Display(LCD),Plasma Display Pane(PDP),etc.
Payment terms of stainless steel woven wire mesh
1.Trade assurance or paypal
2.T/T
3.L/C
4.Western Union
Printing screen

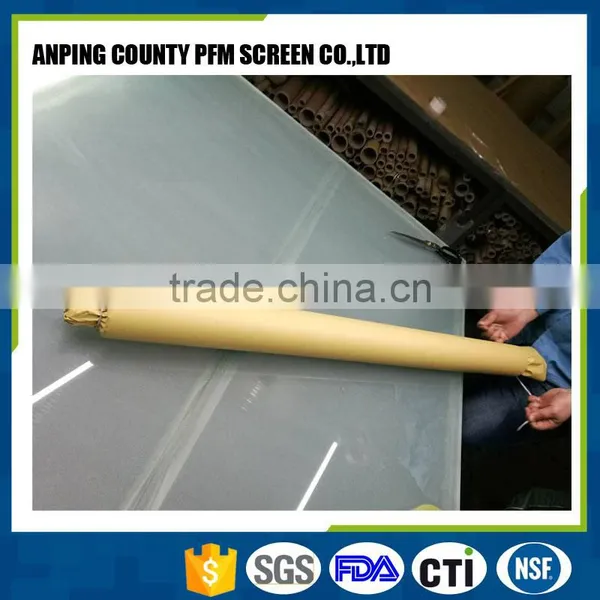

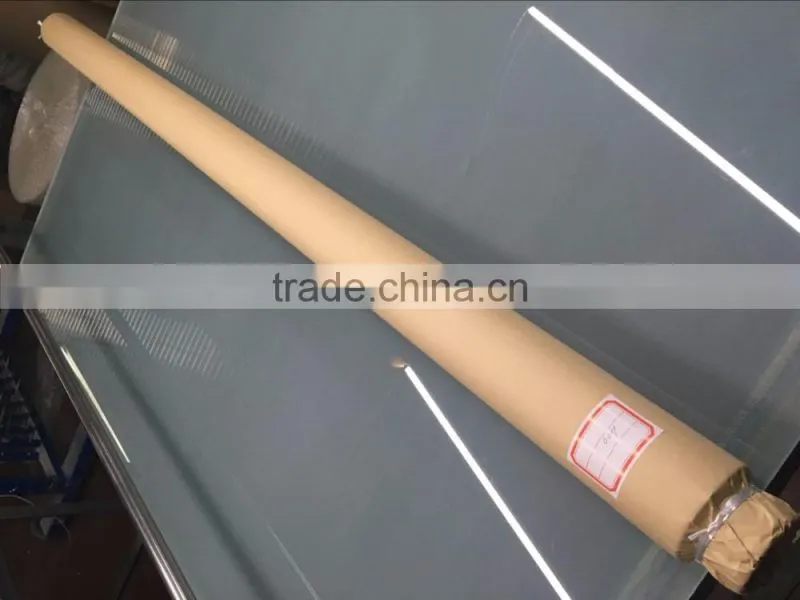

Packing:Waterproof paper inside and air bubble film outside,then put them into plywood case.
Delivery:After receiving 50% advanced payment,we will arrange to producing and the goods will be shipped within 7days.
