Specifications
1.400*2800 Mesh-3 micron-0.03/0.018 Wire Dia.2.Filter rating:3micron
3.Material:SS304,316,316L
4.Acid,alkali resistant
400*2800 Mesh-3 micron-0.03/0.018 Wire Dia. Stainless Steel Filter Cloth
1.400*2800 Mesh-3 micron-0.03/0.018 Wire Dia.
1>Material:SUS316L
2>Mesh Count:400*2800
3>Width:1.0m,1.2m
4.Wire dia.:0.03/0.018mm
5>Filter rating:3micron
2.Plain dutch stainless steel filter cloth
1>Material:SS304,304L,316,316L
2>Produced by the use of coarse mesh in the warp and a fine mesh with relatively smaller wire the fill.
3>Has greater strength with very fine openings
4>Primarily used as a filter cloth
5>The shapes and position of the openings aid particle retention and increase filter cake formation.
6>Plain dutch weave wire mesh is most frequently used for high pressure filtration processer to separate from other medium in industry of spaceflight,petroleum,chemical,etc.
7>Product Show

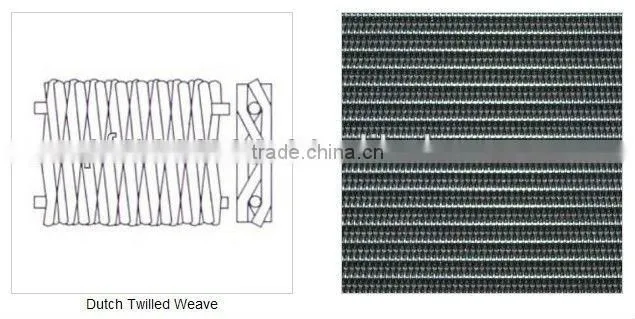

3.Twill dutch stainless steel filter cloth
1>Material:SS304,304L,316,316L
2>Fill wires are passed alternately over and under two warp wires forming a fine mesh in one direction and a coarse mesh in the other.
3>Twill weave stainless steel dutch mesh can support greater loads and finer openings than the plain dutch weave mesh.It is fine with the stable performance.
4>Twill dutch weave wire mesh is most frequently used in applications where the filtering of heavy material necessary.Such as aerospace industry,petroleum and chemical industry,beer,machines,etc.
5>Product Show
4.Specifications of stainless steel filter cloth:
5.Any request,pls feel free to contact Summer
6.Our 400*2800 stainless steel filter cloth sales market
7.QR code
