2 micron mesh screen

Specifications

1.500*3500 Mesh-2 micron-0.025/0.015 Wire Dia.
2.Filter rating:2 micron
3.Material:SS304,316,316L
4.Acid,alkali resistant

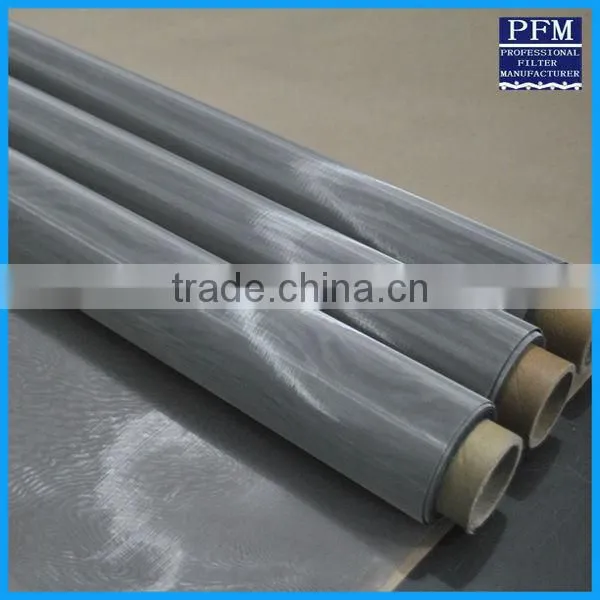

 500*3500 Mesh-2 micron Mesh Screen





1.500*3500 Mesh-2 micron-0.025/0.015 Wire Dia.

  1>Material:SUS316L

   2>Mesh Count:500*3500

   3>Width:1.0m,1.2m

   4.Wire dia.:0.025/0.015mm

   5>Filter rating:2 micron



2.Plain dutch micron mesh screen



  1>Material:SS304,304L,316,316L

    2>Produced by the use of coarse mesh in the warp and a fine mesh with relatively smaller wire the fill.

    3>Has greater strength with very fine openings

    4>Primarily used as a filter cloth

    5>The shapes and position of the openings aid particle retention and increase filter cake formation.

    6>Plain dutch weave wire mesh is most frequently used for high pressure filtration processer to separate from other medium in industry of spaceflight,petroleum,chemical,etc.

    7>Product Show





3.Twill dutch micron mesh screen



  1>Material:SS304,304L,316,316L

   2>Fill wires are passed alternately over and under two warp wires forming a fine mesh in one direction and a coarse mesh  in the other.

   3>Twill weave stainless steel dutch mesh can support greater loads and finer openings than the plain dutch weave mesh.It is fine with the stable performance.

   4>Twill dutch weave wire mesh is most frequently used in applications where the filtering of heavy material necessary.Such as aerospace industry,petroleum and chemical industry,beer,machines,etc.

   5>Product Show



4.Specifications of micron mesh screen:





5.PFM micron mesh screen sales markets



7.QR code
