Drum Filter Cloth

        Drum Filter Cloth                                     PFM SCREEN

1.Summary of Synthetic drum filter cloth:

   1).Material:Polyester monofilaments(DPP,PET),Synthetic,nylon(PA6,PA66).

   2).Hole size:5micron to 3000micron

   3).Thread dia.:20micron to 1000micron

   4).Widths:min.0.2m to max.9.0m

   5).Length/Roll:10m to 60m,or make to order

     6).Colors:White,blue,red

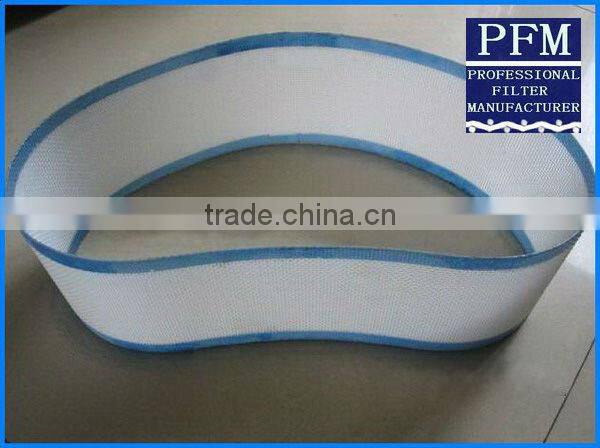

   7).Shapes:in rolls,pieces,ring with endless joint and sealed edges

2.Features & Advantages of Synthetic drum filter cloth:

     1).Minimal elongation and modest loss of tension

    2).A reliable mesh that meets industry demands

     3).Excellent stretching properties

     4).Innovative surface treatment improves wettability and stencil adhesion

     5).Longer stencil life

     6).Wide product range

     7).Acidic and alkaline resistance

     8).Corrosion resistance

     9).High temperature resistance

    10).Strong bursting strength

    11).Good permeability

    12).Excellent conduct electricity and saving energy

    13).A long lifespan of using

3.Applications of Synthetic drum filter cloth:

    1).Filtratopm in foodstuff,chemical fiber industry,water filter,flour and petrochemical industries

    2).Pressing of grapes,fruit and others

    3).Dewatering of inert sludge from quarries or mines

    4).Dewatering of biological or chemical sludge from municipality sewage plants

    5).Polyester filter press cloth are also used at critical stages of Particle Board,Medium Density Fiberboard(MDF),Oriented Strand Board(OSB),Hardboard & Wood Veneer processes and for the manufacturer of ceiling tiles,etc.

    6).Paper making,paper pulps making,sulplate pulp packing and cardboard pulp,fiberboard plants,colliery,food, medicine, printing,drying,salt industry,pharmacy,environment protection,process hides,shoe-making,clothing,ceramics etc as conveyor belt.

4.Specifications of Synthetic drum filter cloth:

  1).Plain weave

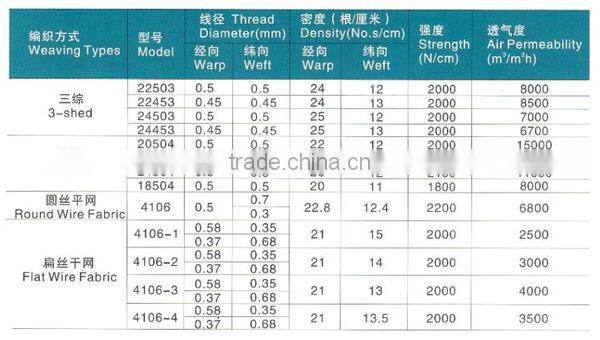

  Technical Datas:

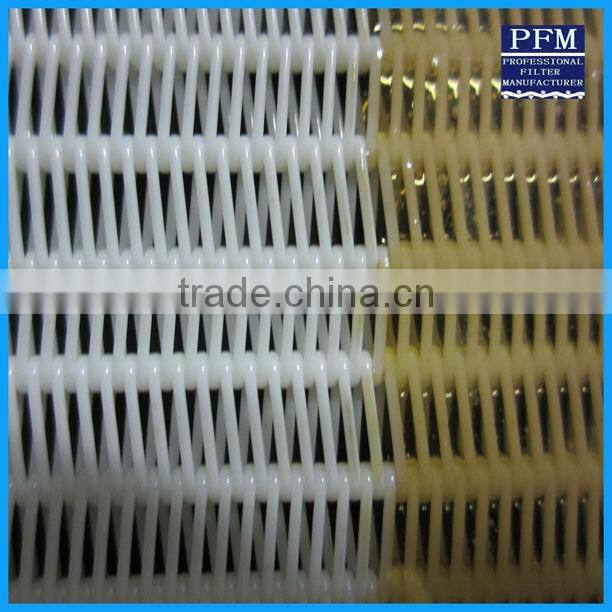

  2).Spiral Link

  Techncial Datas:

  Technical Datas:

  3). lambdoidal Weave

  Technical Datas:

   4).Multi-layer

  Technical Datas:

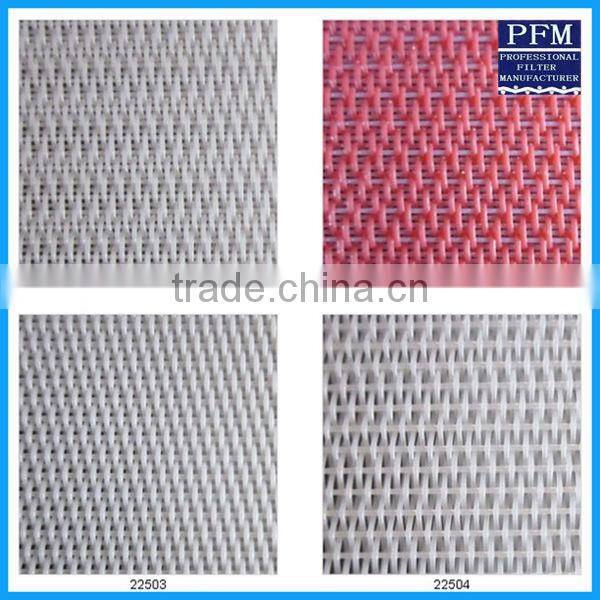

 5. Products Show:
