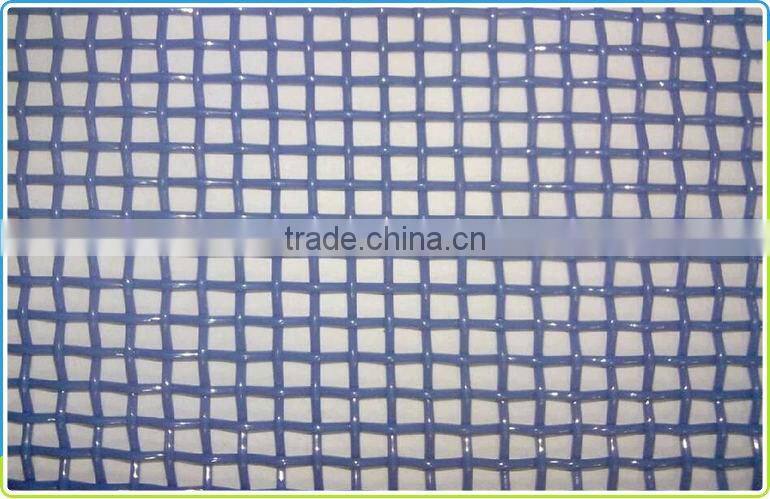

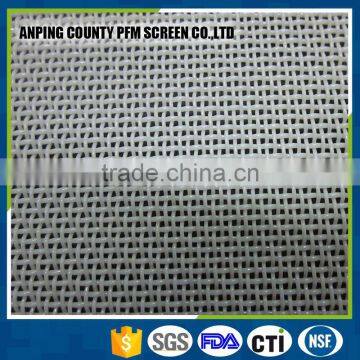

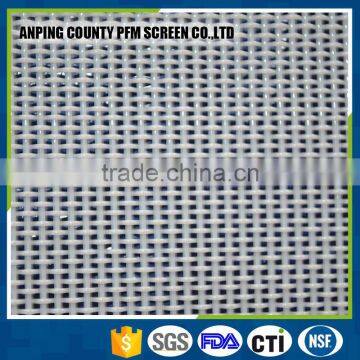

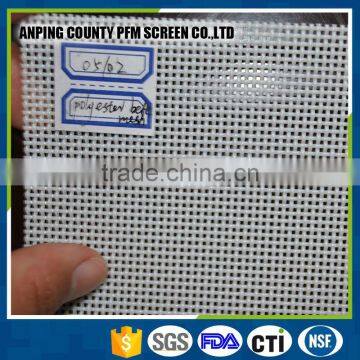

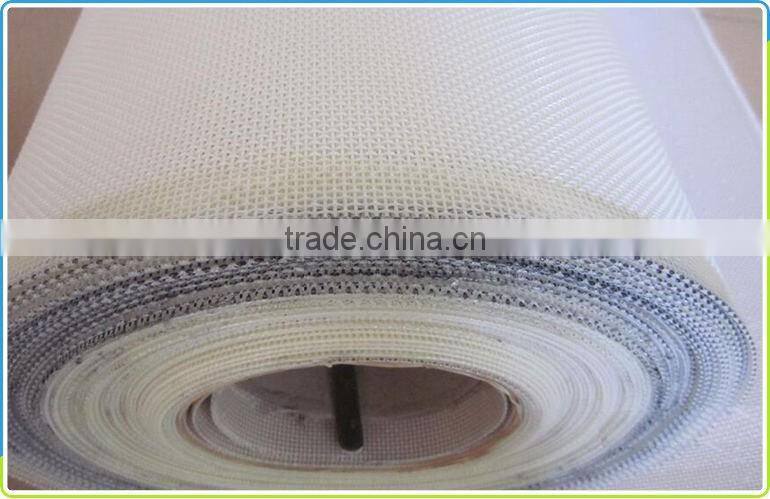

Polyester Linear Mesh Fabric Filter Screen Belt For Paper Pulps Making
Specificaitons
| Weaving Type | Model | Thread Diameter(mm) | Density(No.s/cm) | Strength (N/cm) | Air Permeability(m³/m²h) | ||
| Warp | Weft | Warp | Weft | ||||
| 2-shed plain weaving fabric | 05082 | 0.7 | 0.8 | 4.7-5.0 | 4.8-5.0 | 940 | >20000 |
| 05102 | 1.0 | 1.0 | 4.7-5.2 | 4.3-5.0 | 1600 | >15000 | |
| 06702 | 0.7 | 0.7 | 8.0 | 7.0 | ≥1600 | 11000 | |
| 07102 | 0.7 | 0.7 | 6.6-7.0 | 4.3-4.6 | 1100 | >15000 | |
| 08552 | 0.55 | 0.55 | 7.5-8.0 | 8.5-9.0 | 850 | 850-6500 | |
| 09452 | 0.45 | 0.45 | 10.0 | 8.6 | 1600 | 1600 | |
| 09502 | 0.55 | 0.55 | 8.5-9.0 | 10-10.5 | 750 | >10000 | |
| 12502 | 0.55 | 0.55 | 13.5 | 8.5 | 1800 | 6500 | |
| 3-shed plain weaving fabric | 08603 | 0.55 | 0.6 | 10.0 | 9.0 | 1600 | 14000 |
| 08903 | 0.9 | 0.9 | 7.8-8.0 | 5.0-5.5 | 2100 | 87500-8500 | |
| 07803 | 0.7 | 0.8 | 8.0 | 8.0 | 1600 | 10000 | |
| 20353 | 0.3 | 0.35 | 22.0 | 14.5 | 1200 | 13000 | |
| 20403 | 0.3 | 0.4 | 22.0 | 14.5 | 1200 | 13500 | |
Advantage
1)High strength,standard plain weave ,uniform opening
2) Stand high working strength,durable,long work time
3) Resistance under 180 degrees
4) Waterproof
5) Shrink-Resistance
Applicaiton
Polyester linear screen cloth belt mainly used for pulp and paper industry in the production the OARS with nets, fiberboard factory with a net, and coal mining equipment, food, medicine and other industries in the conveyor belt
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:Do you provide samples?
Yes, we can provide the product samples.
Its free and freight should be collected by your side.
Q:How can I know the completion of my order?
Deposit payment---start production---transfter infor to logistic---book shipment--inform customer ETD&ETA---load container---balance payment---send documents
Q:How can I know whether you are a reliable company?
We have been in this business line since 1987,with too much exporting experience. Above listed our certifications.
