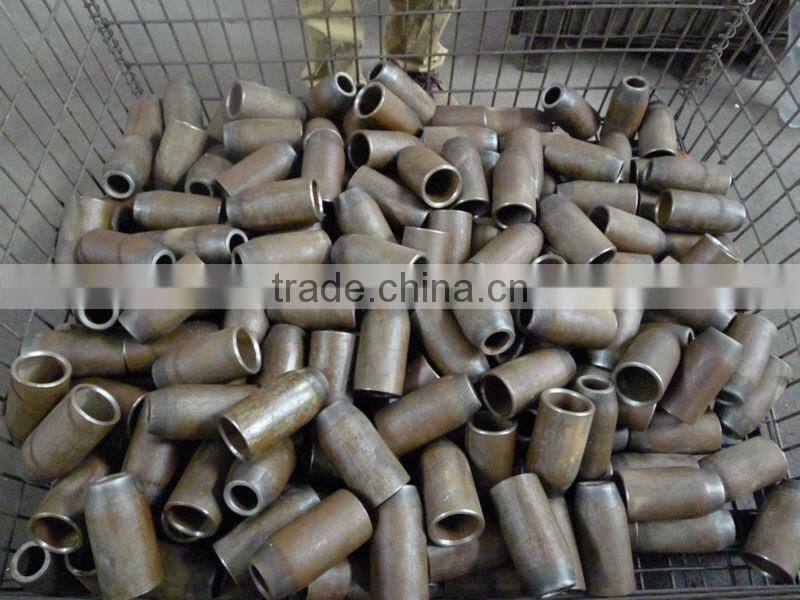

Flemish Eye Steel Swaging Sleeves (S-505)
Specifications
Flemish eye steel swaging sleeves1.Size:1/4"-6"
2.N.W.:2.27-12300KG
3.Material:Low Carbon Steel
4.Certification:ISO 9001
Flemish Eye Steel Swaging Sleeves
1, material: low carbon steel
2, Size: 1/4" to 6"
3, Surface treatment: color painted, self-colored, polished, electro galvanized
4, Certificate: ISO9001 quality management system certificate

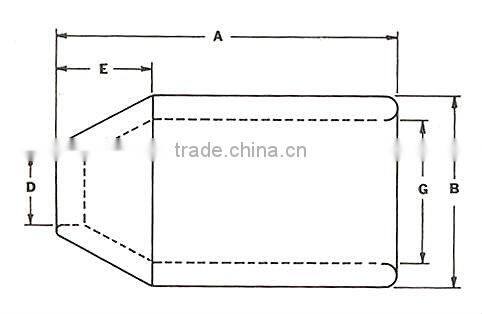

Part No. | For wire rope size(inch) | Dimensions | MAX.AFTER SWAGE DINMENSIONS(inch) | WEIGHT kgs/100pcs | ||||
A | B | D | E | C | ||||
LFR700104 | 1/4" | 1 | 0.66 | 0.31 | 0.28 | 0.47 | 0.57 | 2.27 |
LFR700516 | 5/16" | 1.5 | 0.91 | 0.38 | 0.44 | 0.62 | 0.75 | 6.36 |
LFR700308 | 3/8" | 1.5 | 0.91 | 0.47 | 0.39 | 0.66 | 0.75 | 6.36 |
LFR700716 | 7/16" | 2 | 1.22 | 0.53 | 0.65 | 0.85 | 1.01 | 15 |
LFR700102 | 1/2" | 2 | 1.22 | 0.63 | 0.56 | 0.91 | 1.01 | 13 |
LFR700916 | 9/16" | 2.75 | 1.47 | 0.7 | 0.63 | 1.03 | 1.24 | 29 |
LFR700508 | 5/8" | 2.75 | 1.47 | 0.75 | 0.63 | 1.09 | 1.24 | 26 |
LFR700304 | 3/4" | 3.19 | 1.72 | 0.91 | 0.84 | 1.28 | 1.46 | 40 |
LFR700708 | 7/8" | 3.56 | 2.03 | 1.03 | 1 | 1.53 | 1.68 | 60 |
LFR701000 | 1" | 4 | 2.28 | 1.16 | 1.13 | 1.72 | 1.93 | 89 |
LFR701108 | 1-1/8" | 4.8 | 2.5 | 1.28 | 1.25 | 1.94 | 2.13 | 118 |
LFR701104 | 1-1/4" | 5.19 | 2.78 | 1.44 | 1.41 | 2.16 | 2.32 | 161 |
LFR701308 | 1-3/8" | 5.81 | 3 | 1.56 | 1.56 | 2.38 | 2.52 | 192 |
LFR701102 | 1-1/2" | 6.25 | 3.25 | 1.69 | 1.69 | 2.63 | 2.71 | 227 |
LFR701304 | 1-3/4" | 7.25 | 3.84 | 1.94 | 1.97 | 3.13 | 3.1 | 366 |
LFR702000 | 2" | 8.5 | 4.38 | 2.25 | 2.25 | 3.63 | 3.56 | 514 |
LFR702104 | 2-1/4" | 9.56 | 5.03 | 2.5 | 2.53 | 4.03 | 4.12 | 879 |
LFR702102 | 2-1/2" | 10.5 | 5.5 | 2.75 | 2.81 | 4.50 | 4.5 | 1068 |
LFR702304 | 2-3/4" | 11.5 | 5.75 | 3 | 3.09 | 4.75 | 4.7 | 1271 |
LFR703000 | 3 | 12 | 6 | 3.25 | 3.38 | 5 | 4.96 | 1335 |
LFR703104 | 3-1/4 | 13 | 6.5 | 3.86 | 3.54 | 5.43 | 5.37 | 1650 |
LFR703102 | 3-1/2 | 14 | 7 | 3.88 | 3.94 | 5.84 | 5.77 | 2106 |
LFR703304 | 3-3/4 | 15 | 7.5 | 4.06 | 4.25 | 6.31 | 6.23 | 2497 |
LFR704000 | 4 | 16 | 8.13 | 4.38 | 4.50 | 6.81 | 6.69 | 3087 |
LFR704102 | 4-1/2 | 18 | 9.13 | 4.88 | 5.06 | 7.66 | 7.45 | 4540 |
LFR705000 | 5 | 20 | 10.52 | 5.5 | 5.63 | 8.73 | 8.28 | 6600 |
LFR706000 | 6 | 24 | 12.54 | 6.5 | 6.75 | 10.2 | 9.93 | 12300 |

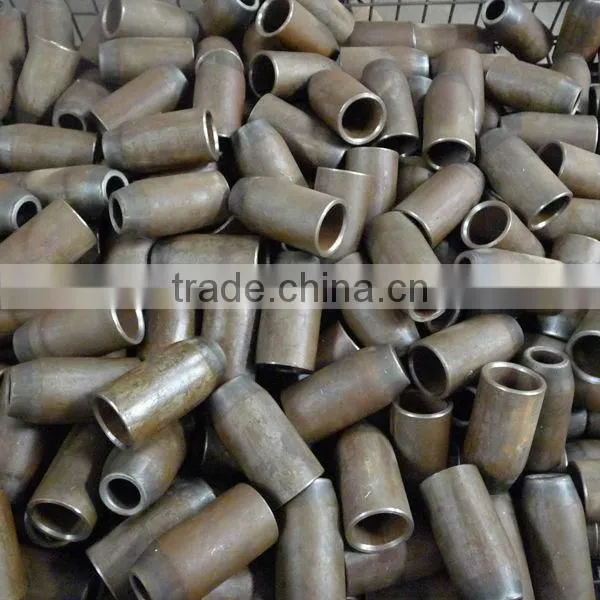

Flemish eye steel swaging sleeves
Flemish eye steel swaging sleeves S-505
different packing way according to you requirement
We can produce different size of flemsh eye steel swaging sleeves, welcome to inquiry, we will give you best quality with prompt delivery time.
