H Beam Shot Blasting Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2013
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Steel Plate/pipe/hook Shot Blasting MachineUS$ 5,000 - 200,000MOQ: 1 Set -
Impressed Current Cathodic Protection System AnodeNegotiableMOQ: 1 Set
-
Marine Growth Protective SystemUS$ 50 - 500MOQ: 1 Set
-
Flue Gas Type Inert Gas SystemNegotiableMOQ: 1 Set
-
Ship Use Portable Engine Room Marine Electric HeaterNegotiableMOQ: 1 Unit
Specifications
H beam shot blasting machine:1.can handle many kinds of steel products.
2.remove rust and oxide skin easily.
3.Reliable qual
H Beam Shot blasting machine:
H beam Shot blasting machine:

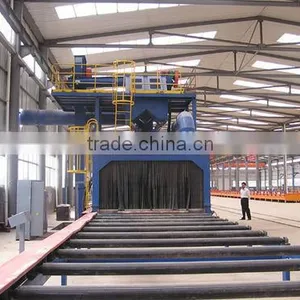

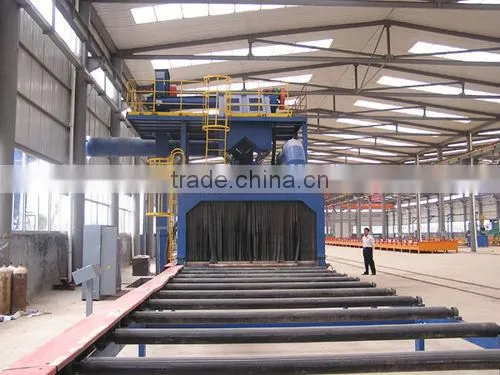

The machine is mainly used in eliminating the stress and cleaning the surface rust of the large H and I beam steel, great size H-beam steel.
The H-bem Shot Blasting Machine, composed of shot blasting chamber, sealed auxiliary chamber before and after, before and after the roller conveyor shot blasting assembly, the pill material circulation purification system, dedusting system and electrical control part.
It is suitable for the field of construction, ship-building and bridge industry, etc.
Specification:
| Dimensions of the work piece being cleaning | Cross section(W*H) | 800*1600mm |
| Length of the working piece | 15000mm | |
| Production Rate(Passing Speed of the Working Piece) | 400~2500mm/min | |
| Impeller Head | Type | Q034 |
| Quantity | 8 | |
| Shot Blasting Capacity | 8*280kg/min | |
| Power Rate | 8*11kw | |
| Elevator | Lifting Capacity | 120t/h |
| Power Rate | 7.5kw | |
| Longitudinal Spiral Conveyer | Conveying Capacity | 120t/h |
| Power Rate | 5.5Wkw | |
| Separator | Separating Capacity | 120t/h |
| Ball-cleaning System | Load-carrying Capacity | 4293m³/h |
| Input/output Roller Way | Load-carrying Capacity | 1000kg/m |
| Power of Motor | 2*2.2kw | |
| Delivery Rate | 400~4000mm/min | |
| Length of the Roller | 13000mm | |
| Shot Material in Volume at the First Time | 5000kg | |
| Dust-removing System | Blowing Wale | 1600m³/h |
| Power Rate | 15kw | |
| Power | AC/380V/50HZ | |
| Total Rate | About 138kw | |
