Digital Anemometer System

Digital Anemometer System

Geneal description

Digital Anemometer is designed for marine use. With case made of nylon and PC material, It can stand strong wind of 60+m/s and can be installed outdoor withour corrosion.

Suppot up to 4display units to indicate wind speed and direction at four locations onboard. Maximum 6 ports of RS422 output are available, to provide wind data to other navigation devices.

Real wind direction and speed can be indicated when it is connected with speed log and compass. The heading and speed data can also be replaced with COG & SOG from GPS receiver, if the connection with speed log and compass is not possible in some cases.

Specifications:

Wind range: wind direction 0 to 360

wind velocity 0 to 60m/s

Accuracy: wind direction +/- 5

wind velocity +/-(0.5+v x5%)m/s

Power supply: DC24v(range 12 to 38vdc)

Output data: NMEA0183(6 ports, RS422), 4800bps

Input signal: Gyro Compass, NMEA0183, RS422, Speed log, NMEA0183 RS422

Display capacity: Max 4 display units to be connected

Environment: out door -30 to +70 degree, indoor: -15 to +55 degree

Size: 614(H) x 606(L) x243(propeller diameter) mm

Weight: About 4.0kg

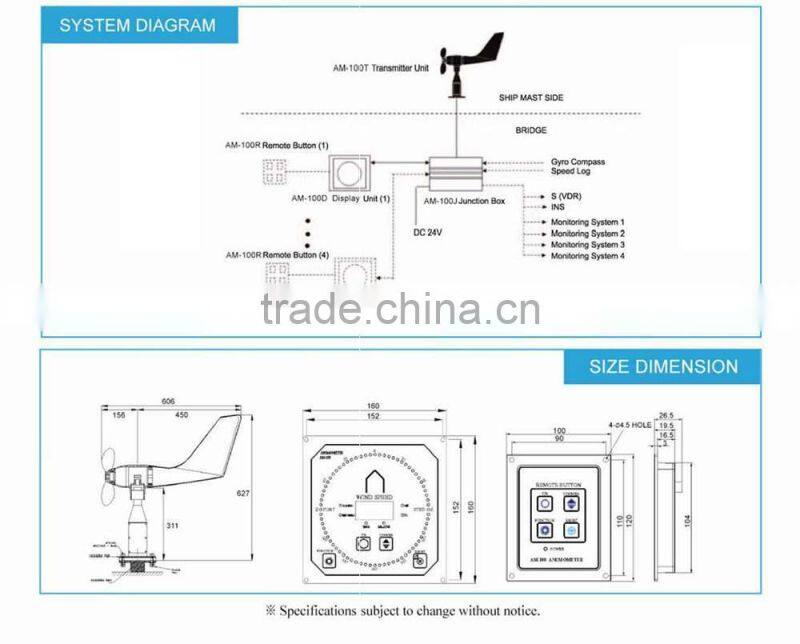

Equipment List

Standard:

• 1 set transmitter unit
• 1 set display unit
• 1 set junction box
• 1 pc outdoor cable 40m
• 1 pc indoor cable 10m
• 1 set installation materials

Options:

• Remote bottom
• Additional display unit
• AC/DC Power supply unit
• Additional cables
