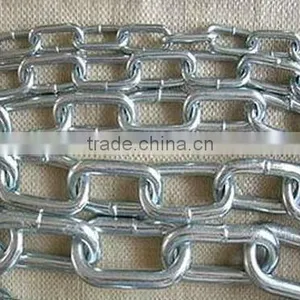

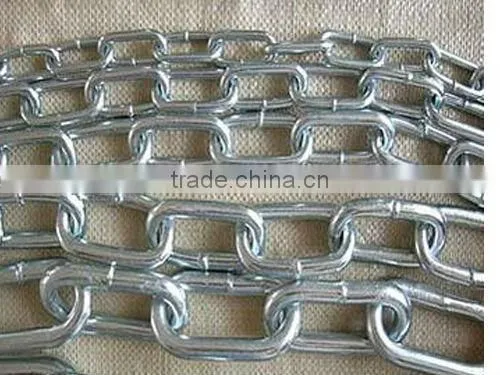

Help CenterHDG Black Paint Origin Color DIN763 Long Link Chain
Related Products
-
Galvanized Welded DIN5865C Long Link ChainNegotiableMOQ: 100 Meters -
Galvanized Welded DIN5865A Short Link ChainNegotiableMOQ: 100 Meters
-
Transport American Standard Link Chain NACM1996/2003NegotiableMOQ: 100 Meters
-
Proof Coil Chain American Standard Link Chain NACM1990NegotiableMOQ: 100 Meters
-
High Test American Standard Link Chain ASTM1980 G30NegotiableMOQ: 100 Meters
Specifications
DIN763 long link chain:1.Beautiful Shape.
2.Strong and smooth welding.
3.Application: for lifting.
4.
DIN763 long link chain:
HDG black paint origin color DIN763 long link chain:
1.Beautiful Shape.
2.Strong and smooth welding.
3.Application: for lifting.
4.All kinds of chain available.
We are an experienced factory tosupply chains of Beautiful Shape, Strong Welding as follows:G80 high strength chain, hatch cover chain, fishing chain, mining chain, conveyor chain, USA standard chain, DIN series of chains, Australian standard chain and Norwegian standard chain. We also can make the nonstandard or special tensile chain according to clients' requirements, high quality and reasonable price.
Product description:
1.material:carbon steel, Q235,Q195 or as per your requirement.
2.Surface treatment: Electrical galvanized, Hot dipped galvanized,Self-color, polished, Black-painted and other .
3. Application: Chains for lifting, hoist parts
4. Packaging choice:
a.gunny bag, b.Iron drum,c.plastic drum,d.wooden box e.plastic wheels f.others as required
Our advantages:
1.About welding quality:
Welding part is smooth, firm, beautiful by advanced technical machine
2.About galvanized quality: Our electric galvanized chains with thick zinc coating,
Galvanized processing time: 40 minutes,galvanized can guarantee 6 months not be rusty
3. We have strict quality control system in the whole process of producing chains
4. We can supply free samples to all customers
Working procedures for steel link chains:1.Receive the purchase order 2. Product requirement 3.Buy raw material 4. Inspect raw material 5. Store raw material 6. Wire rod drawing 7. Bending 8.Welding 9.Check surface 10. Sampling and breaking test 11.Calibration 12. Proof load test 13. Zinc plated or HDG 14. Sampling and breaking test 15. Cutting 16. Final inspection 17. Packing 18. After-sale service
Small quantity and trial order can be accepted./Sample order accepted.
We have confidence about the quality of the product.
We can manufacture according to your detail requestments, when you order our products please give us your detail requestments.
| DIN763 link chain | |||||||||
| Size | Inside length | Outside width | Working load | Test ;pad | Breaking load | Weight per M | |||
| MM | ±MM | MM | ±MM | MM | ±MM | KG | N | N | KG |
| 2 | 0.5 | 22 | 1 | 8 | 0.4 | 25 | 800 | 1250 | 0.06 |
| 3 | 24 | 1.1 | 10 | 0.5 | 40 | 800 | 2000 | 0.1 | |
| 3 | 26 | 1.2 | 12 | 0.6 | 55 | 1050 | 3200 | 0.15 | |
| 4 | 32 | 1.5 | 16 | 0.8 | 100 | 2000 | 6000 | 0.27 | |
| 5 | 35 | 1.8 | 20 | 1 | 160 | 3150 | 10000 | 0.43 | |
| 6 | 42 | 2 | 24 | 1.2 | 224 | 4500 | 14000 | 0.63 | |
| 7 | 49 | 2.5 | 28 | 1.4 | 300 | 6000 | 18000 | 0.86 | |
| 8 | 52 | 2.5 | 32 | 1.6 | 400 | 8000 | 25000 | 1.1 | |
| 9 | 59 | 3 | 36 | 1.8 | 530 | 10500 | 32000 | 1.41 | |
| 10 | 1 | 65 | 3.2 | 40 | 2 | 630 | 12500 | 40000 | 1.75 |
| 11 | 72 | 3.4 | 44 | 2 | 790 | 15800 | 47500 | 2.11 | |
| 12 | 78 | 3.6 | 48 | 2.3 | 940 | 18800 | 56500 | 2.55 | |
| 13 | 82 | 4 | 52 | 2.5 | 1000 | 21200 | 63000 | 2.95 | |
| 16 | 100 | 5 | 64 | 3.2 | 1600 | 33000 | 100000 | 4.45 | |
| 18 | 113 | 5.2 | 70 | 3.2 | 2120 | 42300 | 127000 | 5.65 | |
| 19 | 119 | 5.6 | 72 | 3.4 | 2370 | 47300 | 142000 | 6.25 | |
| 20 | 120 | 6 | 75 | 3.8 | 2500 | 50000 | 160000 | 7 | |
| 22 | 127 | 6 | 82 | 4 | 3170 | 63300 | 190000 | 8.55 | |
| 25 | 140 | 6.6 | 88 | 4.2 | 4090 | 81700 | 245000 | 10.9 | |
| 28 | 152 | 7 | 96 | 4.7 | 6000 | 120000 | 300000 | 13.9 | |
| 32 | 171 | 7.8 | 108 | 5.2 | 8000 | 160000 | 400000 | 18.2 | |
