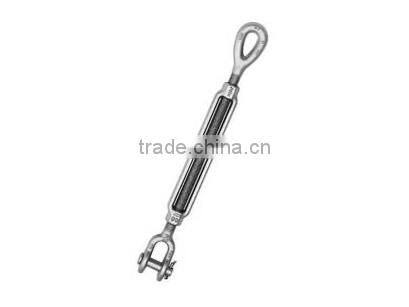

Jaw & Eye Turnbuckles HG-227 SS304 OR SS316
- China shanghai port
- T/T Money Gram Credit Card
You May Like
Product Details
| Material | Stainless Steel | Type | US Type | |
| Place of Origin | Chongqing, China | Brand Name | JINBO | |
| Surface Treatment | Hot Galvanized |
Product Description

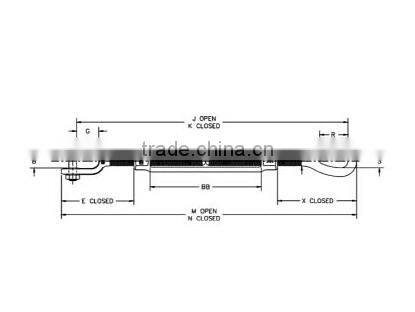

| THREAD DIA.& TAKE UP (in.) | WORKING LOAD LIMIT (lbs)* | WEIGHT EACH (kg) | DIMENSIONS(in.) | |||||||||||
| A | B | E CLOSED | G | J OPEN | K CLOSED | M OPEN | N CLOSED | R | S | X CLOSED | BB | |||
| 1/4x4 | 500 | 0.33 | 0.25 | 0.45 | 1.66 | 0.64 | 11.57 | 7.57 | 12.28 | 8.28 | 0.81 | 0.34 | 1.76 | 4.07 |
| 5/16x4-1/2 | 800 | 0.52 | 0.31 | 0.5 | 2.02 | 0.87 | 13.5 | 9 | 14.3 | 9.8 | 0.95 | 0.44 | 2.2 | 4.58 |
| 3/8x6 | 1200 | 0.8 | 0.38 | 0.53 | 2.11 | 0.85 | 16.91 | 10.91 | 17.87 | 11.87 | 1.13 | 0.53 | 2.48 | 6.1 |
| 1/2x6 | 2200 | 1.77 | 0.5 | 0.64 | 3.22 | 1.07 | 19.3 | 13.3 | 20.48 | 14.48 | 1.41 | 0.71 | 3.56 | 6.03 |
| 1/2x9 | 2200 | 2.25 | 0.5 | 0.64 | 3.2 | 1.07 | 25.59 | 16.59 | 26.77 | 17.77 | 1.41 | 0.71 | 3.54 | 9.36 |
| 1/2x12 | 2200 | 2.67 | 0.5 | 0.64 | 3.2 | 1.07 | 31.59 | 19.59 | 32.77 | 20.77 | 1.41 | 0.71 | 3.54 | 12.36 |
| 5/8x6 | 3500 | 2.98 | 0.63 | 0.79 | 3.9 | 1.32 | 20.73 | 14.73 | 22.27 | 16.27 | 1.8 | 0.88 | 4.35 | 6.03 |
| 5/6x9 | 3500 | 3.72 | 0.63 | 0.79 | 3.89 | 1.32 | 27.07 | 18.07 | 28.61 | 19.61 | 1.8 | 0.88 | 4.34 | 9.39 |
| 5/8x12 | 3500 | 4.35 | 0.63 | 0.79 | 3.89 | 1.32 | 33.07 | 21.07 | 34.61 | 22.61 | 1.8 | 0.88 | 4.34 | 12.39 |
| 3/4x6 | 5200 | 4.51 | 0.75 | 0.97 | 4.71 | 1.52 | 22.17 | 16.17 | 24.09 | 18.09 | 2.09 | 1 | 5.12 | 6.13 |
| 3/4x9 | 5200 | 5.56 | 0.75 | 0.97 | 4.68 | 1.52 | 28.57 | 19.57 | 30.49 | 21.49 | 2.09 | 1 | 5.09 | 9.59 |
| 3/4x12 | 5200 | 6.42 | 0.75 | 0.97 | 4.68 | 1.52 | 34.57 | 22.57 | 36.49 | 24.49 | 2.09 | 1 | 5.09 | 12.59 |
| 3/4x18 | 5200 | 8.14 | 0.75 | 0.97 | 4.71 | 1.52 | 46.57 | 28.57 | 48.49 | 30.49 | 2.09 | 1 | 5.12 | 18.53 |
| 7/8x12 | 7200 | 9.1 | 0.88 | 1.16 | 5.5 | 1.77 | 35.68 | 23.68 | 37.91 | 25.91 | 2.38 | 1.25 | 5.79 | 12.16 |
| 7/8x18 | 7200 | 11.6 | 0.88 | 1.16 | 5.5 | 1.77 | 48.15 | 30.15 | 50.38 | 32.38 | 2.38 | 1.25 | 5.79 | 18.63 |
| 1x6 | 10000 | 10 | 1 | 1.34 | 6.09 | 2.05 | 25.03 | 19.03 | 27.59 | 21.59 | 3 | 1.43 | 6.5 | 6.18 |
| 1x12 | 10000 | 13.4 | 1 | 1.34 | 6.09 | 2.05 | 37.03 | 25.03 | 39.59 | 27.59 | 3 | 1.43 | 6.5 | 12.18 |
| 1 x18 | 10000 | 16.7 | 1 | 1.34 | 6.09 | 2.05 | 49.03 | 31.03 | 51.59 | 33.59 | 3 | 1.43 | 6.5 | 18.18 |
| 1 x24 | 10000 | 20.6 | 1 | 1.34 | 6.06 | 2.05 | 61.63 | 37.63 | 64.19 | 40.19 | 3 | 1.43 | 6.47 | 24.84 |
| 1-1/4x12 | 15200 | 20.9 | 1.25 | 1.84 | 8.09 | 2.82 | 40.76 | 28.76 | 43.98 | 31.98 | 3.59 | 1.82 | 8.49 | 12.06 |
| 1-1/4x18 | 15200 | 24.8 | 1.25 | 1.84 | 8.09 | 2.82 | 52.76 | 34.76 | 55.98 | 37.98 | 3.59 | 1.82 | 8.49 | 18.06 |
| 1-1/4x24 | 15200 | 28.8 | 1.25 | 1.84 | 8.09 | 2.82 | 65.32 | 41.32 | 68.54 | 44.54 | 3.59 | 1.82 | 8.49 | 24.62 |
| 1-1/2x12 | 21400 | 30.6 | 1.5 | 2.06 | 8.93 | 2.81 | 42.5 | 30.5 | 46.21 | 34.21 | 4.09 | 2.12 | 9.46 | 12.32 |
| 1-1/2x18 | 21400 | 36 | 1.5 | 2.06 | 8.93 | 2.81 | 54.5 | 36.5 | 58.21 | 40.21 | 4.09 | 2.12 | 9.46 | 18.32 |
| 1-1/2x24 | 21400 | 41.5 | 1.5 | 2.06 | 8.93 | 2.81 | 67.12 | 43.12 | 70.83 | 46.83 | 4.09 | 2.12 | 9.46 | 24.94 |
| 1-3/4x18 | 28000 | 52.1 | 1.75 | 2.6 | 9.36 | 3.35 | 55.37 | 37.37 | 59.77 | 41.77 | 4.65 | 2.38 | 9.97 | 18.37 |
| 1 -3/4 x 24 | 28000 | 59.7 | 1.75 | 2.6 | 9.36 | 3.35 | 67.37 | 43.37 | 71.77 | 47.77 | 4.65 | 2.38 | 9.97 | 24.37 |
| 2x24 | 37000 | 89.9 | 2 | 2.62 | 11.8 | 3.74 | 72.66 | 48.66 | 77.95 | 53.95 | 5.81 | 3.69 | 13.03 | 24.48 |
| 2-1/2x24 | 60000 | 158 | 2.5 | 3.06 | 13.26 | 4.44 | 76.08 | 52.08 | 82.68 | 58.68 | 6.49 | 3.12 | 13.03 | 24.6 |
| 2-3/4 x 24 | 75000 | 187 | 2.75 | 3.69 | 14.92 | 4.19 | 78.05 | 54.05 | 85.67 | 61.67 | 7 | 3.25 | 15.09 | 24.65 |
1.How about the Delivery time?
Lead time since receipt of 30% T/T deposit payment: 45 days.Samples will be prepared within 5 Days.
2.What kind of payments does jenor support?
T/T, L/C ,Western Union can accept.
3.What's the MOQ?
Generally speaking, the MOQ is 50PCS.
4.Do you charge for the samples?
According to our company policy,we just charge the samples based on EXW price.and we will return the samples fee during the next order.
5.Can you produce aocording to customers' design?
Sure, we are professional maunfacturer, OEM and ODM are both welcome.
1. 100% factory tested before shipment.
2.Any Inquiries will be replied within 24 hours.
3. Supply of chemicals,filter elements,membranes and other consumable spare parts.
4. One year equipment warranty.
5.Professional manufacturer. Welcome to visit our website: http://jinbomarine.en.china.cn.
6.After Sale Service:
1).All products will have been strictly Quality Checked before pecking.
2).All products will be well packed before shipping.
7.Faster delivery:Sample order in stock ,and 3--7 days for bulk production
8.Payment:You can pay for the order via :T/T,Western Union,Paypal& MoneyGram.
9.ShippingWe have cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Post.
You also can choose your own shipping forwarder.
