Home > Products > Soft Pipes > LC-LIDA Water-proof and Explosion-proof Electrical Tube
LC-LIDA Water-proof and Explosion-proof Electrical Tube
US$ 5 - 16
/ Meter
2 Meters(Min. Order)
- Tianjin
- Credit Card
You May Like
-
Water-proof and Explosion-proof Electrical Tube
-
LC-LIDA Water-proof and Explosion-proof Electrical Tube With Cotton Weaving Sheath
-
Water-proof and Explosion-proof Electrical Tube With Cotton Weaving Sheath
-
YF Water-proof and Explosion-proof Electrical Tube With Cotton Weaving Sheath
-
PA 6-S Hoses
-
PP Material Corrogated Tube for Wiring Harness
Product Details
| Place of Origin | Hebei, China | Brand Name | LC-LIDA | |
| Model Number | YF--705 |
Product Description
Welcome to our company---Hebei Liancheng
Dimension Specifications:
Catalog no. | Fits to hose size | Type | Min Max | Min Max | Bending radius | Length | Weight |
| YF-70503 | 3/8'' | YF-705 | 12.3 12.8 | 18.5 19.0 | 75 | 50 | 0.47 |
| YF-70504 | 1/2'' | YF-705 | 15.7 16.3 | 21.8 22.3 | 95 | 50 | 0.73 |
| YF-70506 | 3/4'' | YF-705 | 20.7 21.2 | 26.2 27.7 | 102 | 30 | 0.77 |
| YF-70510 | 1'' | YF-705 | 26.2 26.8 | 33.8 34.4 | 180 | 30 | 1.38 |
| YF-70512 | 11/4'' | YF-705 | 34.7 35.4 | 42.4 43.2 | 230 | 20 | 2.05 |
| YF-70514 | 11/2'' | YF-705 | 40.0 40.6 | 48.4 49.3 | 270 | 20 | 2.64 |
| YF-70520 | 2'' | YF-705 | 51.3 51.9 | 60.4 61.3 | 300 | 15 | 3.39 |
| YF-70524 | 21/2'' | YF-705 | 62.9 63.6 | 73.1 74.0 | 350 | 10 | 3.91 |
| YF-70530 | 3'' | YF-705 | 77.9 78.7 | 88.9 89.9 | 500 | 10 | 4.78 |
| YF-70540 | 4'' | YF-705 | 101.6 102.6 | 114.3 115.3 | 650 | 5 | 7.00 |

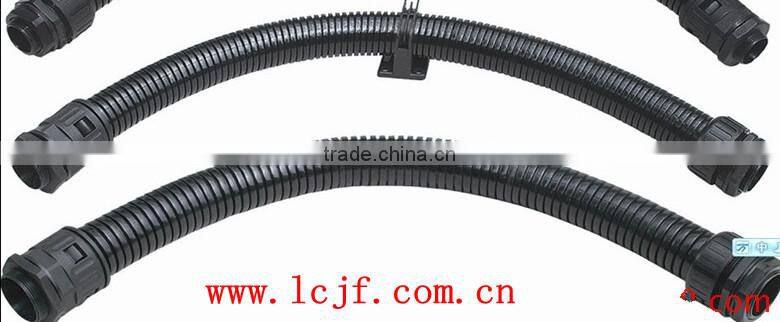

Tube Show:
contact us :
skype : xiaojin681(HY-xiaolei yang)
Tel : +86 15932717166
CE&ISO9001:
Dear friend,
Thanks for your attention on our cable carriers.
If you have any questions , pls leave me the message on the end of this page .
Or you can chat with me directly ,because i will be mostly on line .
Best regards.
