Feature
it isolators the vibration and shock of the machine from the floor , it can also reduce the influences from other machine , better parts finshes and high quality from vibration reduction , it eliminates the noise transferred from the floor or due to the resonance of building
machine are stationary on the floor without anchors , it keeps the machine in its position , there fore the installation cost and time can be greatly saved , the layout can be easily changed to improve the productivity , machines can set up on the second floor
the machine tools level can be large range adjusted , easily and fast
elastomers is make of nitvile rubber compound , it can resist oil and refrigerant .
application
metalcutting machines ,metalforming machines ,rubber and plastic machines ,printing machines ,wire machines ,pakcing machines foodprocess machines ,generator and heavy-duty machines
how to install
place the mounts under the anchor hole of the machine , insert the bolt into the screw hole of mount , and screw it in until it reaches the bearing plate , then adjust the level of machine ,finally tighten the nuts .
Data parameter
| Part No. | Rubber hardness index | Dimensions(mm) | Bolt(mm) | ||||
| h-H-SH | shore(A)*3 | h | H | M | |||
| S78 040-15-50 | 50 | 40 | 15 | M5*30 | |||
| S78 080-25-50 | 50 | 80 | 25 | M10*80 | |||
| 080-25-60 | 60 | 80 | 25 | M10*80 | |||
| 080-25-70 | 70 | 80 | 25 | M10*80 | |||
| S78 120-32-50 | 50 | 120 | 32 | M12*100 | |||
| 120-32-60 | 60 | 120 | 32 | M12*100 | |||
| 120-32-70 | 70 | 120 | 32 | M12*100 | |||
| 120-32-80 | 80 | 120 | 32 | M12*100 | |||
| S78 160-35-50 | 50 | 160 | 35 | M16(M20)*120 | |||
| 160-35-60 | 60 | 160 | 35 | M16(M20)*120 | |||
| 160-35-70 | 70 | 160 | 35 | M16(M20)*120 | |||
| 160-35-80 | 80 | 160 | 35 | M16(M20)*120 | |||

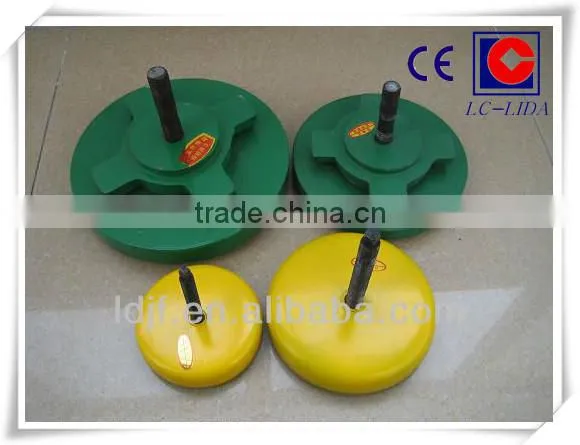

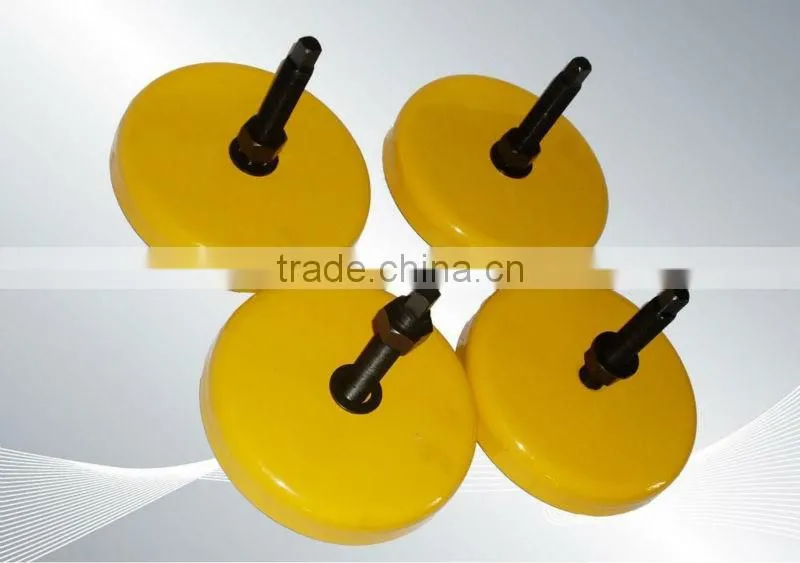

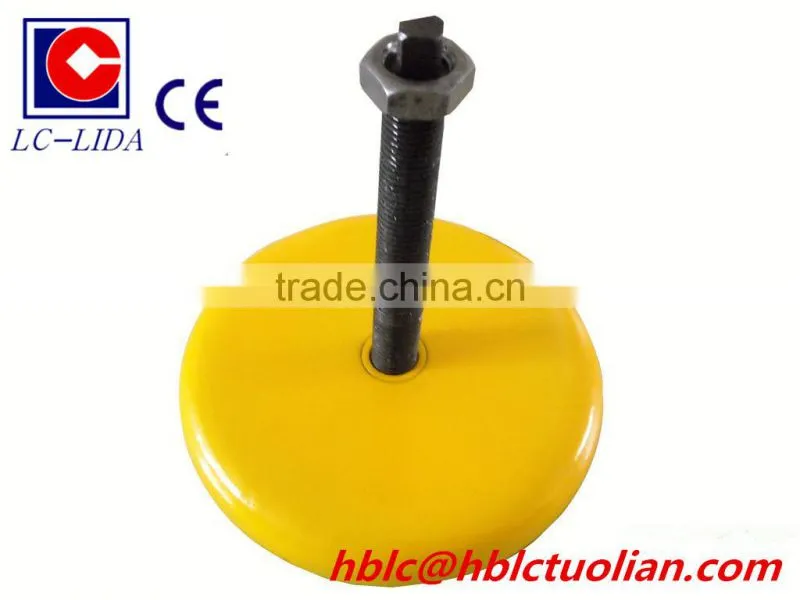

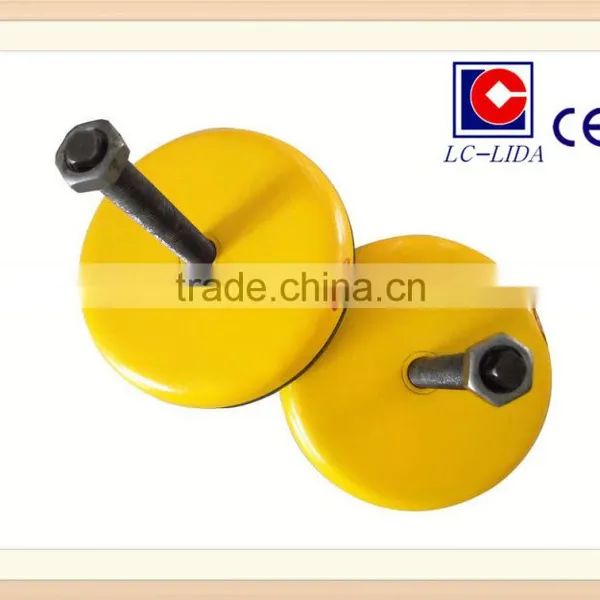

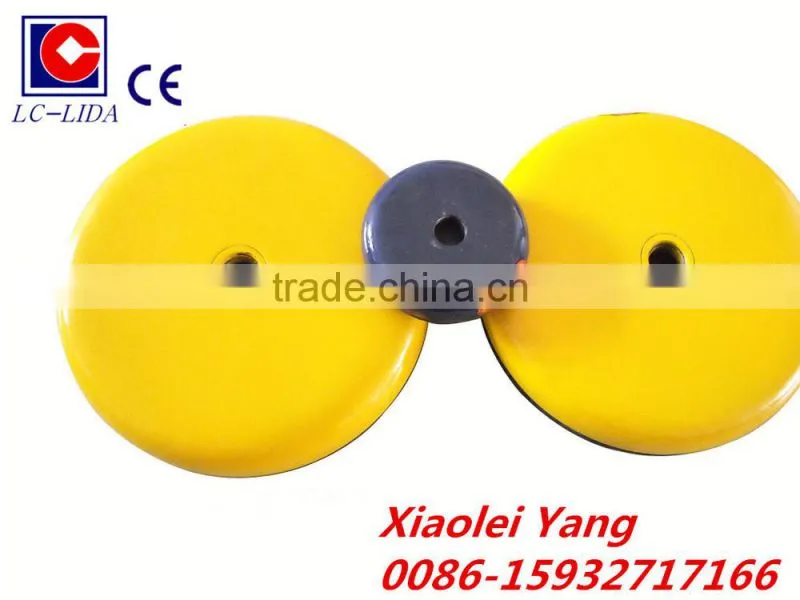

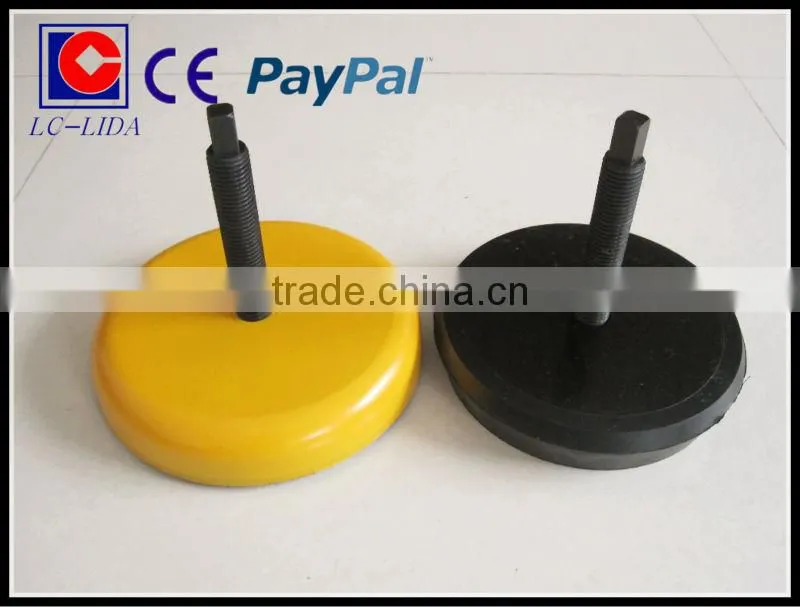

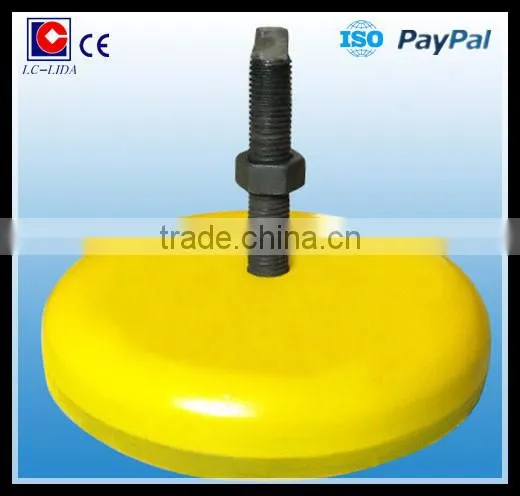

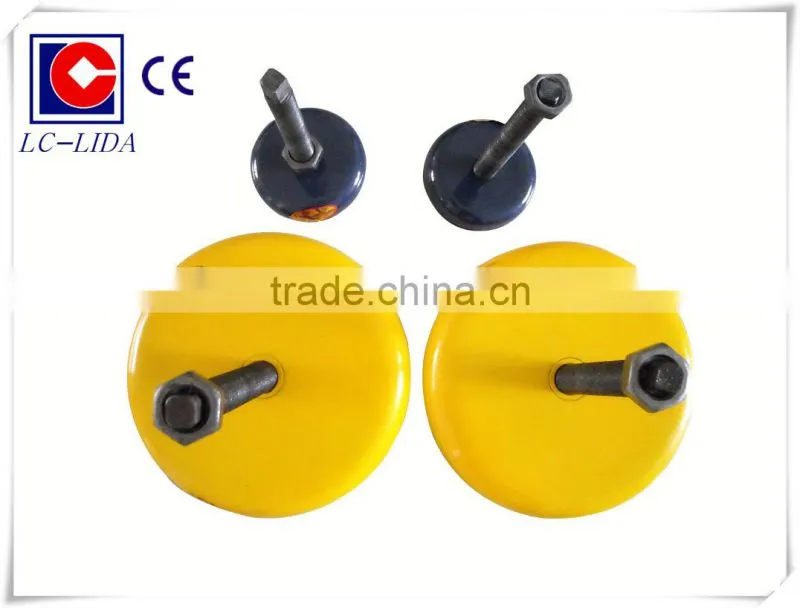

S78 rubber shock mounts show

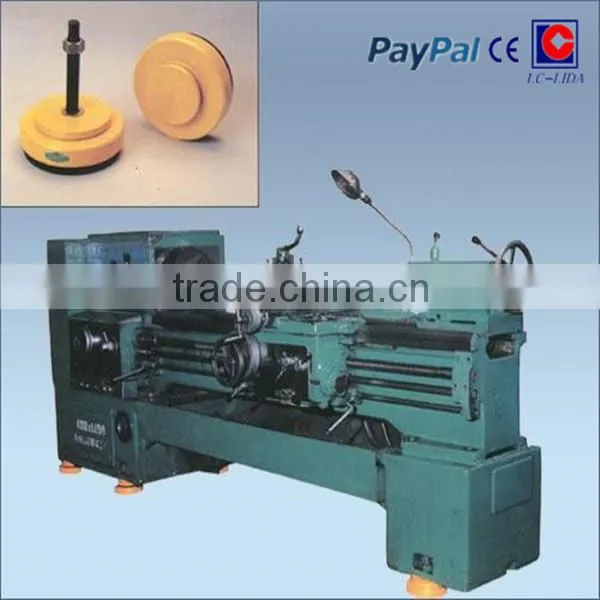

Application
Packing and shipping
Our workshop show
