Inear Machine Fold Bellows
US$ 1 - 50
/ Piece
1 Piece(Min. Order)
- tianjin
- Money Gram Credit Card
You May Like
Product Details
| Material | nylon cloth | Brand | LC-LIDA | |
| Model | according to customer need |
Product Description
Feature and structure
- This type of bellow cover feature a strong tread-resistance,easy to be operated,long lifetime,good tightness and non-deformation upon impact by hard objects.
- These bellow cover have a long travel range, which has very little compression .The length ratio is 1:10.
- This folding bellow covers is the most advanced one, which can solve all the difficulties that the others can not and is now in a leading position in the world.
- Resists to coolants as it doesn’t have sticked parts
- It presents a very reauced compressed size
- It can reach speed up to 200 mt./min.
- It has no intermal metal parts which falling onto slideways may cause serious damage to machines
Drawing show
Data parameter
Code | Description | Data | Remarks | Shield coustrustion materials | |
L | Lengh after stretch |
|
| plus material | Nylon cloth or protective cloth |
L1 | Length after compression |
|
| support | PVC sheet |
L2 | Travel |
|
| connecting plate | Resin plate ,iron plate |
B | Total width of the shield |
|
| pulley | Copper or nylon bearing |
B1 | Guide width |
|
|
|
|
B2 | Interior width of the shield |
|
| machine tool model number |
|
H | Total height of the shield |
|
| by pur chase order |
|
H1 | Guide height of the guide |
|
| contact person |
|
H2 | Interior width of the shield |
|
| contact tel |
|

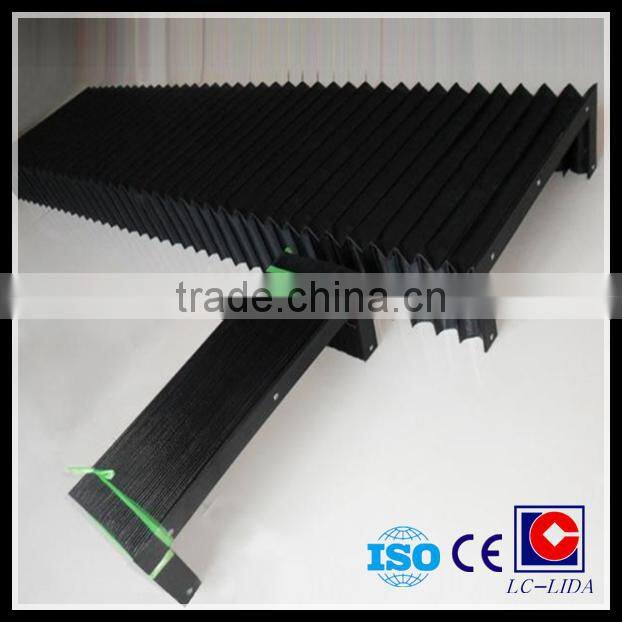

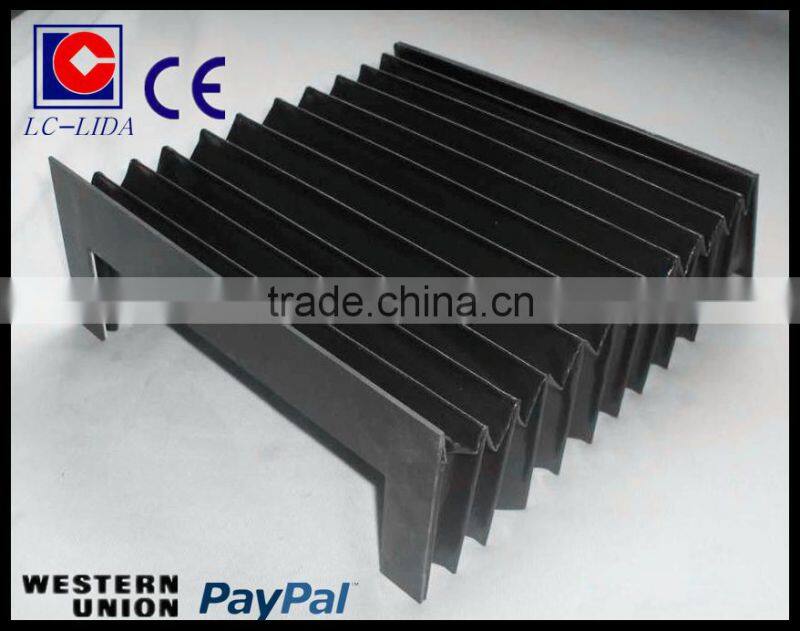

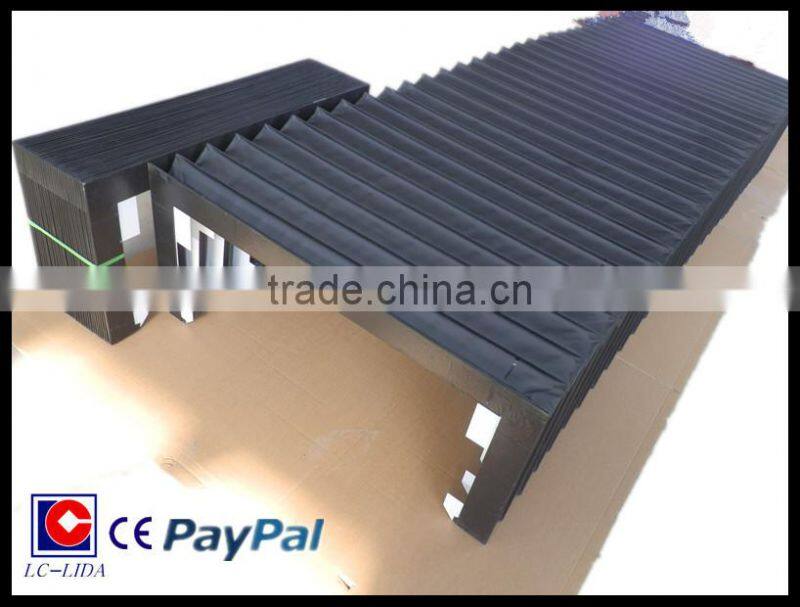

inear machine fold bellows show
Application
Mulipurpose accordion type machine shield
ISO9001
Packing and shipping
Contact Us
- Hebei Liancheng Machine Tools Accessories Co., Ltd.
- Contact nameJianxin Yang Chat Now
- Phone86-0317-7880388
- AddressNo. 56, South Changlu Road, Xinhua District, Cangzhou, Hebei, China
