Electro Galvanized Welded Wire Mesh( Direct Manufacturer)

FOB Price

US$ 6.58 - 15.24 / Roll

100 Rolls(Min. Order)

Port Tianjin( China)
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	GJ
Model Number	GJ-WM01	Material	Other, Low-Carbon Iron Wire, Low-Carbon Iron Wire
Type	Welded Mesh	Application	Construction Wire Mesh
Hole Shape	Square	Aperture	1/4"1/4"-2"2",4",3",2",1'', 1/2'', 1/4",3/4",3/8etc
Wire Gauge	1.2-5.0mm

Product Description

Specifications

open:1/4"*1/4"-2"*2"
wire diameter:12#-22#
Standard roll length: 30m; width: 0.5m to 1.8m
more than10years product experience

Electro Galvanized welded Wire Mesh

Material: Anping GJ select and use high quality low carbon steel wire

Features: 1) smooth and trim mesh surface

2)Solid and uniform structure and superior integral performance

3)it won’t loosen even subhect to local cutting or pressure

4)corrosion-resisting and oxidation- resisting.

Application: serves as guards in buildings and factories, as animal enclosure and wire mesh fences in agriculture; welded wire mesh also serves in horticulture industry as guards for trees and plants

Product in Rolls:

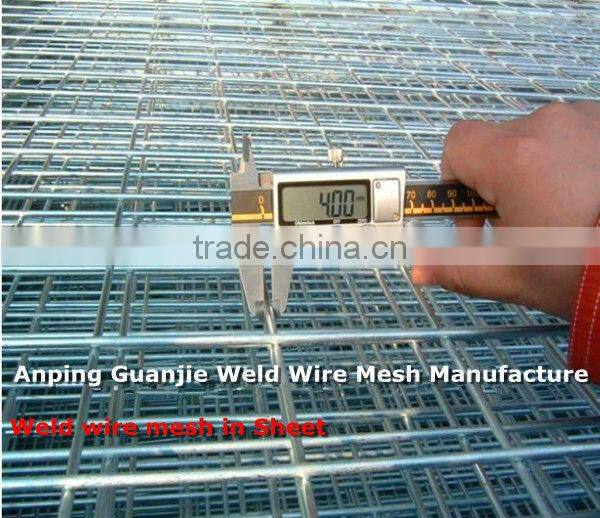

Proudct In Sheet:

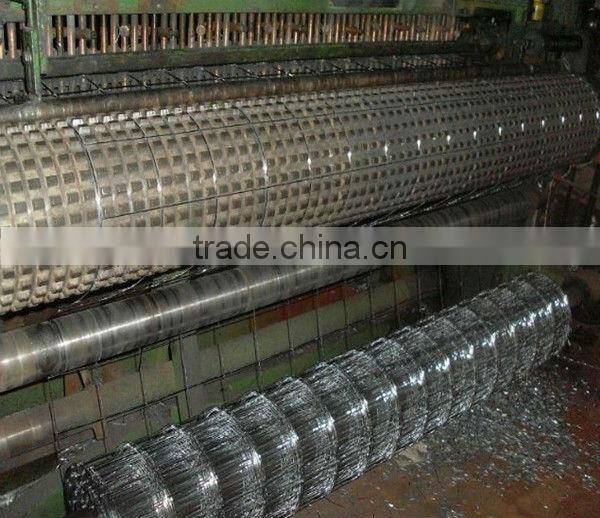

Guanjie Welded Wire Mesh Work Shop:

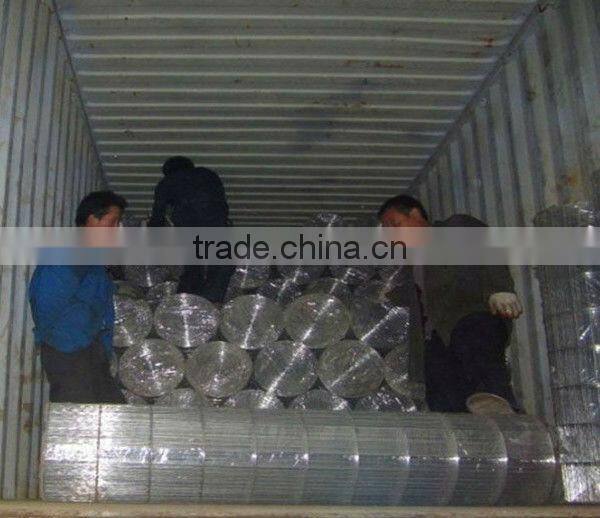

Loading Scene :

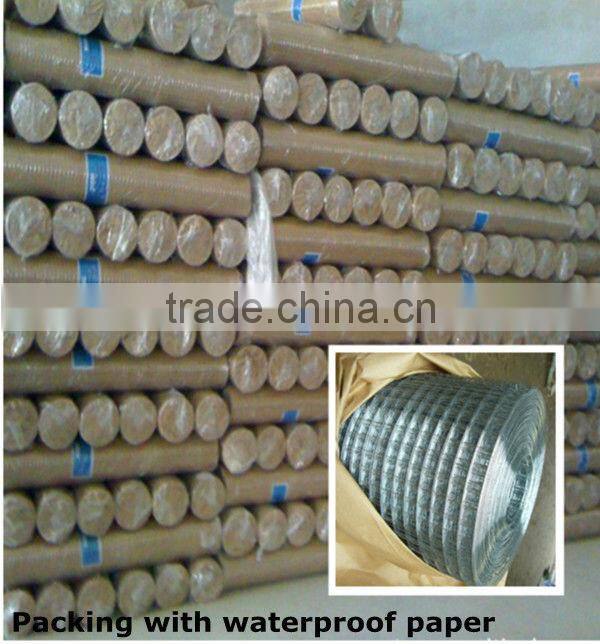

Packing Form:

Reference Specifications Form:

Specification List of Welded Wire Mesh:
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request

Welcome to send inquiry to me. I will quote for u within 24 hours!!!

Last Update Time:2014-05-05
