Recycled HDPE Tree Guard Mesh

Recycled HDPE Tree Guard Mesh photo-1
US$ 1 - 3 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
BH
Model Number:
BH-TG-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name BH
Model Number BH-TG-1
Material PE
Thickness many, 2mm
Size Height: 60cm, 75cm, 90cm, 1.2m, 1.5m, 1.8m

Specifications

1,Name:plastic tree guard mesh
2,Material:HDPE
3,Height: 60cm, 75cm, 90cm, 1.2m, 1.5m, 1.8m
4,Diameter: 80-110mm

Recycled HDPE Tree Guard MeshRecycled HDPE Tree Guard MeshRecycled HDPE Tree Guard MeshRecycled HDPE Tree Guard MeshRecycled HDPE Tree Guard Mesh Recycled HDPE Tree Guard Mesh



Specifications

Material: Recycled HDPE
Photodegradable
Colour: Olive Green
Brown & Black also available

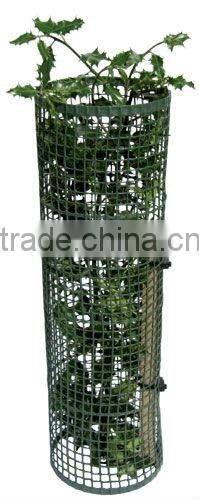

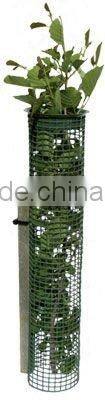

Tree guard is a 12mm square plastic mesh designed for protecting small trees from damage caused by browsing animals. Our Tree guard mesh guards are particularly suitable for the protection of evergreens which often grow too rapidly in an enclosed shelter (Like traditional tubes shelters), becoming top heavy and unstable. Tree guards allow the tree to grow in its natural climate without inhibiting sunlight or rainfall. Our Tree guard is identical to our Shelter guard™ but without the polyethylene lining.

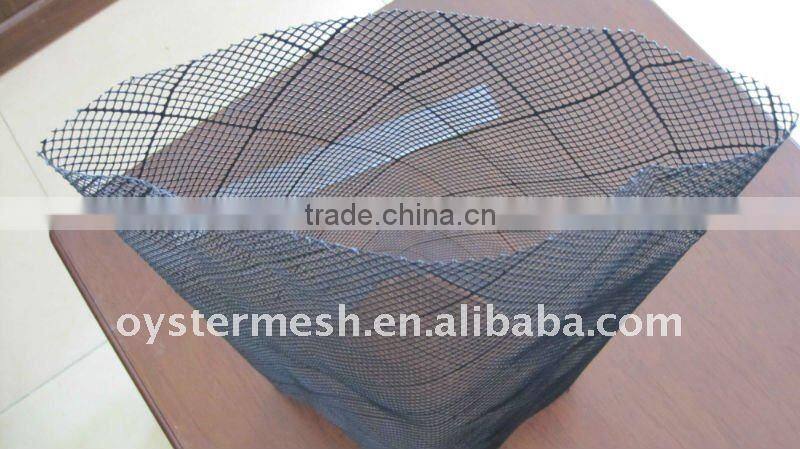

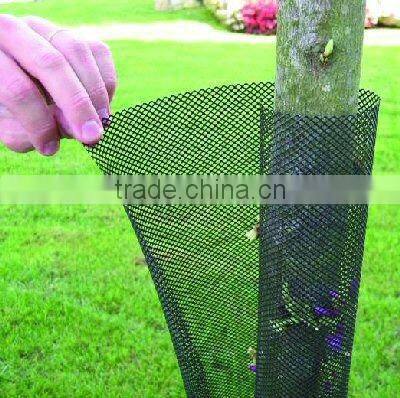

Our Tree guard range is available in pre-formed nested tubes in diameters suitable for trees and shrubs. The mesh tree guard can also be supplied on full rolls or in cut pieces as required. We nest products to enable shipping costs to be reduced and ultimately product costs.









Our Tree guard for trees range consists of four welded tubes nested inside of each other (diameter range of 80-110mm). We fit all pre-formed tree guards with ties as standard.
We supply all our tree guards for trees range with an injection molded pre-fitted top lipping which helps prevent stem abrasion whilst strengthening the tree guard tube.
The tree guard mesh / netting and top lipping will photodegrade and split as the stem of the growing tree expands to fill the tube.









Spec
Item
TGSG15-15TGSG20-20TGSG25-25TGSG30-30TGSG35-35TGSG40-40TGSG45-45
Vertical tensile yield per linear meter ≥ (KN/m)15202530354045
Horizontal tensile yield per linear meter ≥ (KN/m)15202530354045
Vertical tensile stretch ≤ (%)13
Horizontatensile stretch ≤ (%)16
Vertical drawing force in 2% tensile stretch ≥ (KN/m)58 11 1316
Horizontal drawing force in 2% tensile stretch ≥ (KN/m)710131520
Vertical drawing force in 5% tensile stretch ≥ (KN/m)810151625
Horizontal drawing force in 5% tensile stretch ≥ (KN/m)1013152022
RemarkPlease contact us for details and relative data. Particular specifications can bu customized.





Technical Specifications



ColorRoll sizeMesh apertureDiameter of GuardWeight/m2Material
Black450mm x 5m37mm x 23mm140 mm533HDPE
Black600mm x 50m13mm x 13mmVariable366HDPE
Green600mm x 50m13mm x 13mmVariable366HDPE
Black1000mm x 50m45mm x 25mmVariable500HDPE
Black1200mm x 50m13mm x 13mmVariable366HDPE
Green1200mm x 50m13mm x 13mmVariable366HDPE
Black120mm x 100m2mm x 2mm120mm110HDPE
