Rendering Equipment

Rendering Equipment thumbnail-1
Rendering Equipment photo-1
US$ 1 - 200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
CONNECT
Contact Supplier Request Quote Chat Now
Ningbo Connect Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name CONNECT
Model Number N/M
Type Other
Voltage 220-440v
Power(W) 155kw
Dimension(L*W*H) 3000x 1800x 2500mm
Weight 15500 kg
Warranty one year
After-sales Service Provided Overseas service center available

Specifications

heavy duty, EU. standar

1,Raw material elevator:power:1.1KW. Material:Carbon steel

2,Batch cooker:Model:CZS1000-2

   Volume:2m³

   Capacity:500-1000KGS/batch

   Main power:5.5KW

   Dimension:3700mm*1500mm*1800mm

   With one set of working platform 1set

   Cooling unit dimension: 1500x1500x2700mm

3,Heating system:

   Electric oil heater: power:60KW;

   Oil circulating heater:power:5.5KW

   Oil pump 1set:power:3KW

   Circulating pipes, valves, oil tank

4,Oder process system

Oder condenser; heat exchange area:18m2

Vacuum pump system: power :5.5KW(with one set of vacuum pump, sewage pump, sewage pipes, one set of automatic control system)

   One set of valves, pipes

     One set of cooling tower, cooling water tank volume:1T/H

Circulating pump:power:2.2KW.

5, The cost for processing raw material

The total area of rendering system is 15m2,total operating area:40-50m2



6. The oil jacket pressure is less than 0.1Mpa

The inside tank design working pressure is 0.4Mpa, the normal working pressure around 0.25Mpa.

The total weight is around 9Ton

The temperature in jacket is tank is about 160 degrees centigrade

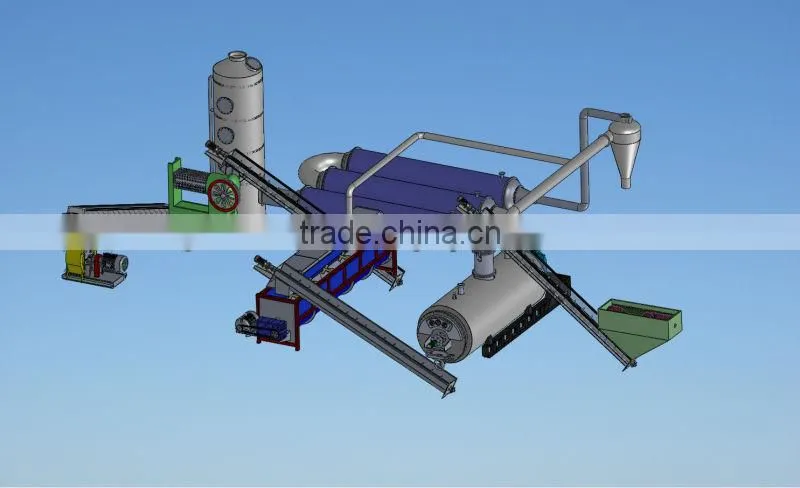

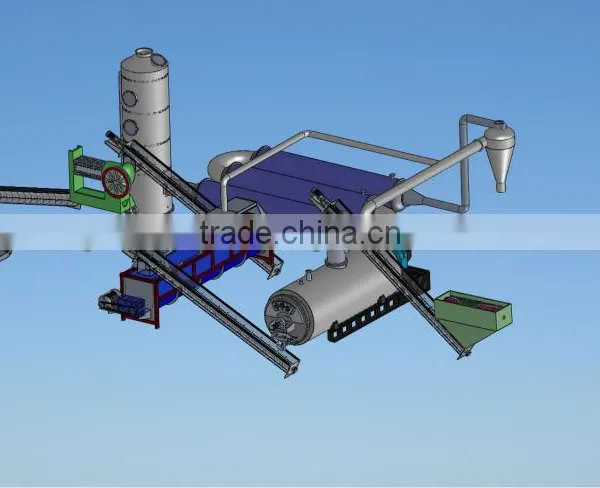

 Rendering equipmentRendering equipment
