Help CenterFEEDING AND DRINKING SYSTEM
Related Products

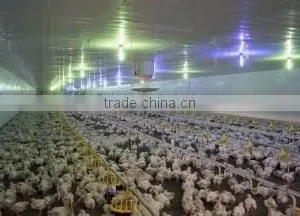

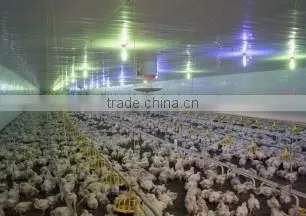

Broiler automatic feeding system consists of a driving device, a hopper, a conveying pipe, an auger, trays, a suspension lifting device, an anti-perching device and a feed sensor. The main function of the system is to convey the feed in the hopper into each tray to ensure the eating of the broiler and automatically control the conveying opening/closing of the motor by the material level sensor to feed automatically.
Parameter of Feeding Line
1. High-quality special driving reduction motor
Power: 0.75kw, voltage: 380V, frequency: 50HZ, three-phase AC current
2. V-shaped Bin (With Hopper)
Bin Volume: 115L, hopper volume: 38L,
Material: hot-dip galvanized sheet
3, Feeding System
Diameter of conveying pipe: φ45mm
Material: hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2
Helical spring auger from South Africa feeding capacity: 450kg/h
4. Material level sensor from Israel: time delay range 0 to 2 hours
Broiler drinking system including, pressure regulator, filter, meter, Dosing device…
All the waterline technology is comes from Europe, no leaking which passed the strictly test before delivery.
The height of drinking line is adjusted by winch.
The drinking line height for broiler:
From 1 to 7days old chicks, the height of drinking line is 50 to 80mm, from 8 to 14 days, the height of drinking line is 80 to 200mm, the height of drinking line is 200 to 350mm for more than 15 days broiler.
