ZSB Turn Brush Nets Deck Type Bar Screen Machine

Specifications

ZSB Turn brush nets deck type bar screen machine

Use and brief introduction

ZSB turn brush nets deck type rack cleaner machine set in thick block the dirt grille after, to the water more than 3.6 mm of twigs, weeds, fish and suggested to intercept and remove the reliable, widely used in large power plants, and other industrial water supply system, municipal engineering drainage system.

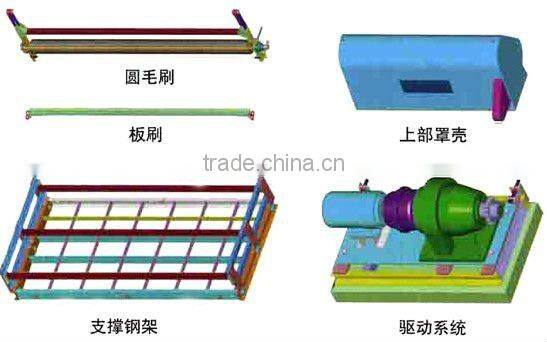

Structure and working principle
ZSB turn brush nets deck type rack cleaner by steel ontology, mesh machine group and transmission chain brush under the party by moving upwards, cleaning the net surface and take away dirt to the drainage outlet skateboarding, most of the dirt off the dead weight, a few adhesion on the side of the brush with reverse rotation circle dirt brush to clean fall into slots in the sewage, the water to rinse eduction.
This equipment has the filter is reliable, decontamination high efficiency, the water flow unobstructed, smooth operation low noise, low consumption, cover an area of province, long service life, installation operation, convenient maintenance, which can realize the automation of operation, etc.

Technical parameters

Craft drawing
