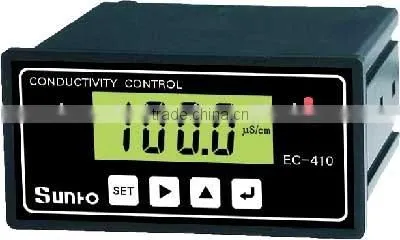

Conductivity Controller

1 general introduction

This series of instruments are industrial on-line instruments for measuring and controlling conductivity.It applies widely to the measurement and control of pure water in the fields of pharmacy, chemical industry, electronic industry, food industry and beverage industry.

The characteristics of the instrument:

1.)   cut display of conductivity and temperature.

2.)    automatic digitalized temperature compensation, direct display of conductivity value base on  25.

3.)    input of measuring range and electrode constants through keyboard

4. )   setting maximums in the entire measuring range and setting relays' return difference.

5. )    output of insulated 420mA current signal, convenient to long-distance transmission of   data.







2. Technical performance



              type

Function        option

EC-410

EC-450<

maximum

control output

√

√

insulating

4-20mA

---

√

  1easuring range:0-19.99 ,  0-199. 9, 0-1999μS/cm.

   (choose among three groups of measuring ranges throug keyboard)

2. Displaying mode:3½-digit apheliotropic liquid crystal display

3.Accuracy: 1.5%(FS)

4.Stability:±2×10-3(FS)/24h

5.orking pressure: 0-0.5MPa

6.ediums temperature:0-45

 7.Temperature compensation: taking 25 as the datum point, digital compensation.

 8.Output current:: insulated active output 4-20mA(≤300Ω)

 9.Control output: maximum and minimum (constantly open and constantly

close) contact point output

10.Capacity of contact points: 7A/AC250V (with resistant loads)

11.Provided electrodes:1.0cm-1 electrodes

12.Length of the cable: conventional 5m or otherwise agreed      m

13.Environmental conditions: temperature: 050; humidity: ≤85%RH

14.Power supply: AC 220V~240V   60Hz

15.External dimensions: 48×96×100mm (height×width×depth)

16.The hole on the dial plate: 45×91mm

 17. The way of installation: install with a disk
