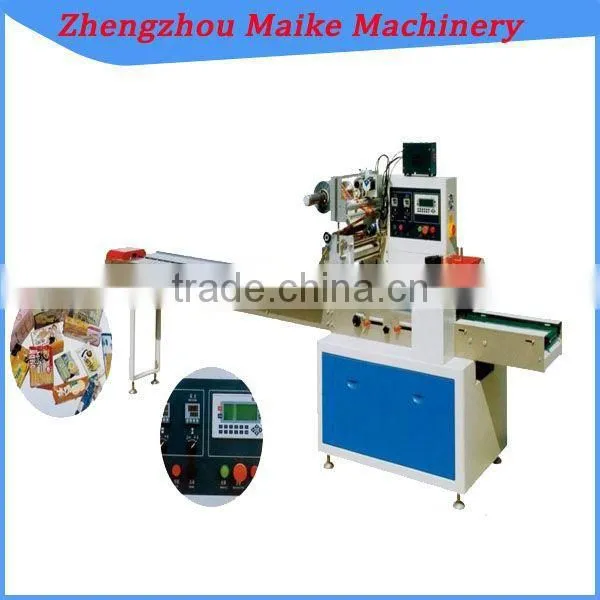

automatic horizontal packaging machine
Application of automatic horizontal packaging machine :
The cookies and biscuit packaging machine applies to pakcing and packaging all kinds cubic and stick shape products.Such as bread ,cookies ,biscuit ,popsicle,lollipop,soup ladle,small toy,incense stick ....and etc.
Specification of automatic horizontal packaging machine:
Packing sample:
Type |
ZSBZ-250 |
ZSBZ -320 |
ZSBZ -350 |
ZSBZ -400 |
ZSBZ -450 |
ZSBZ -600 |
Film width |
250MM |
320MM |
350MM |
400M |
450MM |
600MM |
Bag Length |
65-190MM or 120-280MM |
90-330MM |
65-280MM |
180-400MM |
130-450MM |
130-450MM |
Bag width |
30-110mm |
50-150MM |
50-160MM |
50-185MM |
60-200MM |
60-280MM |
products High |
Max.60mm |
Max.60mm |
Max.70mm |
Max.80mm |
Max.90mm |
Max.95mm |
Packing speed |
40-230bag/mins |
40-230bag/min |
40-180bag/min |
30-150bag/min |
20-150bag/min |
20-130bag/min |
Power |
220V 50/60HZ 2.4KW |
220V 50/60HZ 2.6KW |
220V 50/60HZ 2.6KW |
220V 50/60HZ 2.8KW |
220V 50/60HZ 2.8KW |
220V 50/60HZ 2.8KW |
Machine size |
3770x670x1450 |
3770x720x1450 |
4020x770x1450 |
4020x800x1450 |
4020x820x1450 |
4020x920x1460 |
Machine Weight |
500kg |
600kg |
650kg |
700kg |
800kg |
900kg |

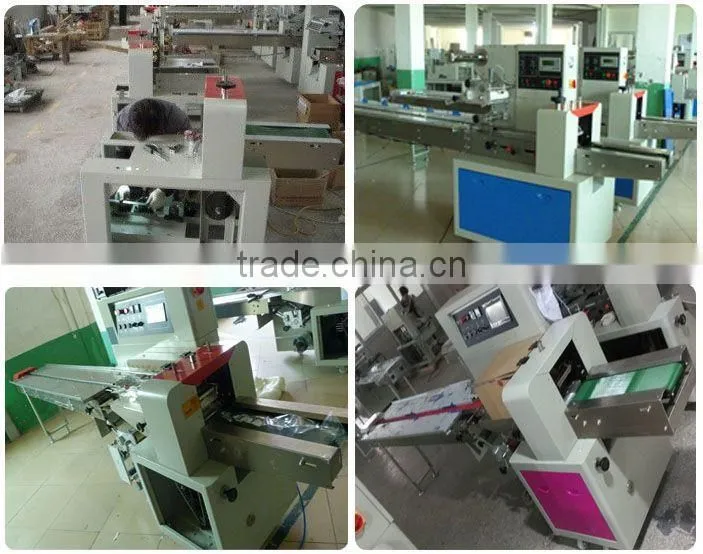

Machine pictures
Pillow type bags packaging for products.
I. Main performance and structure features
1. Double transducer control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and saving films.
2. human-machine operation, convenient and quick parameter setting..
3. Self diagnosis failure function, clear failure display..
4. High sensitivity optical electric color mark tracking and digital input cut position which makes the sealing and cutting more accurate..
5. Separate PID control to temperature, suitable for various packing materials..
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film..
7. Simple driving system, reliable working, convenient maintenance..
8. All the controls are achieved by software, convenient for function adjusting and upgrading.
Structure:
Details parts of automatic horizontal packaging machine
1.Packaging : exported wooden case
2.logistics transportation to seaport of china
3.Transportation to Destination :By sea
Payment:
1:T/T and Western Union are accepted
2:Large amount we can negotiation
3:All banking charges outside China are on buyers
Shipping:
Upon receipt of payment , delivery date will be in 3-15days,
By Air, by Sea or by Express (DHL etc)
Shipment cost will depend on the destination, shipment way,size and the weight of the goods
♥24 hours on-line service for you
♥Professinoal peson reply your questions
♥One year warranty for you
♥Perfect and careful after-sale service
♥Fast delivery
