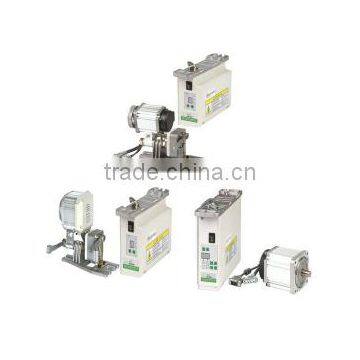

500W Energy-Saving Servo Motor for Industrial Sewing Machine

Servo Motor

Industrial Sewing Machine Brushless Energy  Saving Motor

[SUITABLE FOR THE MODEL OF SEWING MACHINE]

• Normal lockstitch sewing machine as 8500, 8600, 8700, 8800, 1130B, 5550, 9600, 8778 and so on.
• Computer controlled lockstitch sewing machine as 8800A, 9800A, 9701, 8900, 7200C, 3500, 8779D, 9000 and so on.
• Overlock sewing machine/cup seaming machine as 700, 800, 747, 848, 2500A, 380, 737, 788, 798, 797, 900 and so on.
• Coverstitch/interlock sewing machine as F007, 350, 335, 500, 600, 800, 888, 999 and so on.
• High chariot/post-bed/heavy duty sewing machine as 810, 820 and so on.
• Multineedle sewing machine as 8008, 008VC, 1400, 2000C, 1508P and so on.
• Needle roland sewing machine as 9910, 9920 and so on.
• Bartacking/special sewing machine as 1900B, 1850 and so on.
• Button sewing machine
• Regular multi-axis sewing machine
• Blind stitch sewing machine

and so on

[ABOUT OUR MOTOR]

The product is using contactless sensor. Mature silicon controlles rectifier control, electronic brake technology, point needle and brake precision operating easily and flexible. It has the ventilation, scattered heat and cooling function. Its design is using the numerical control speed to control system of brushless electric drive machine directly drive sewing equipment. Realize drive control, brake control, control feedback digital control functions. What makes staff with convenient speed , sensitive and comfortable operation and more stable performance in using. This type of motor is the best product which can be instead of the traditional clutch motor.

[TECHNICAL DATA]

[EACH NORMAL SEWING MACHINE ACTUAL ENERGY SAVNG DATA CORRELATION TABLE]

[THE ADVANTAGE OF KESHENG SERVO MOTOR]

l Kesheng industrial sewing energy-saving servo motor using high quality low noise ball bearing, and its life is designed over 30,000 hours.

l Guarantee for two year.

l Industrial sewing energy saving servo motor is controlled by computer. It does not work in sewing machine standby, energy savings is about 89%. Sewing machine in working, energy savings is from 70% to 80%. Just six months, you can save costs.

l Industrial sewing energy saving servo motor uses servo drive technology. No clutch, carbon brushes, small vibration, low noise, reduce the wear electronic commutation, electronic brake, without replacement, low maintenance costs.

l Industrial sewing energy saving servo motor three phase waveform for uniform rules sine wave, magnetic pull, high efficiency.

l Industrial Sewing energy saving servo motor brushless structure, free cleaning, free of interference.

l Industrial sewing energy saving servo motor adopt permanent magnet drive, increased torque, can loss of heat and remove the coil work, reduce the temperature of the working environment 2°C to 5°C .

l Kesheng industrial sewing energy saving servo motor small size, light weight, high efficiency, low energy consumption, low noise, speed adjustable(from 500 to 4500RMP, hundred hundred up plus), pay more attention to green products.

l If motor power forgets to turn off, do not step on the motor pedal, the motor is not running, unguarded will not be an accident.

  [PRODUCTS INSTRUCTIONS]

COMPOSE

 PERFORMANCE AND INDEX PARAMETERS

 The industrial sewing energy-saving servo motor performance and index parameter list.

 [THE INSTALLATION OF BOTTOM HANGING TYPE SYSTEM]

MOTOR INSTALLATION

CONTROLLER/FOOT PEDAL INSTALLATION

[MAINTENANCE AND GENERAL TROUBLE SHOOTING]

[FERTURES]
