Help Center72V/550W Solar Water Pump for Swimming Pools
Related Products
-
2015 High Speed Solar Swimming Pool PumpUS$ 300 - 1,000MOQ: 100 Pieces -
2015 New Solar Pump for Swimming Pool (DC Brushless)US$ 300 - 1,000MOQ: 100 Pieces
-
Good 1100W Home Appliance High Power Integrative Flat Plate Solar Water Heater For Swim PoolUS$ 300 - 1,000MOQ: 100 Pieces
-
Effective and Economical Swimming Pool Water Pump for Sale.US$ 300 - 1,000MOQ: 100 Pieces
-
Low Pressure Motor Swimming Pool Centrifugal PumpUS$ 300 - 1,000MOQ: 100 Pieces
| Model | Voltage | Power | Match solar panel | Flow&lift | outlet | |||
| V/DC | W | Power(W/PCS) | VMP/Panel | Max.flow | Max.head | (inch) | ||
| 6PSS17-2 | 288 | 2200 | 250W*11PCS | 29.5VMP/PC | 32M3/H | 31M | 3"/4" | |
| 6PSS17-3 | 240 | 3500 | 250W*18PCS | 29.5VMP/PC | 32 | 43 | ||
| 6PSS17-5 | 288 | 4500 | 250W*22PCS | 29.5VMP/PC | 32 | 64 | ||
| 6PSS30-1 | 288 | 2200 | 250W*11PCS | 29.5VMP/PC | 49 | 15 | ||
| 6PSS30-2 | 240 | 3500 | 250W*18PCS | 29.5VMP/PC | 49 | 31 | ||
| 6PSS30-3 | 288 | 4500 | 250W*22PCS | 29.5VMP/PC | 49 | 38 | ||
| 6PSS46-1 | 240 | 3500 | 250W*18PCS | 29.5VMP/PC | 65 | 18 | ||
| 6PSS46-2 | 288 | 4500 | 250W*22PCS | 29.5VMP/PC | 65 | 27 | ||
| 6PSS60-1 | 240 | 3500 | 250W*18PCS | 29.5VMP/PC | 72 | 18 | ||
| 6PSS60-2 | 288 | 4500 | 250W*22PCS | 29.5VMP/PC | 72 | 28 | ||
Pump Model Explanation
.

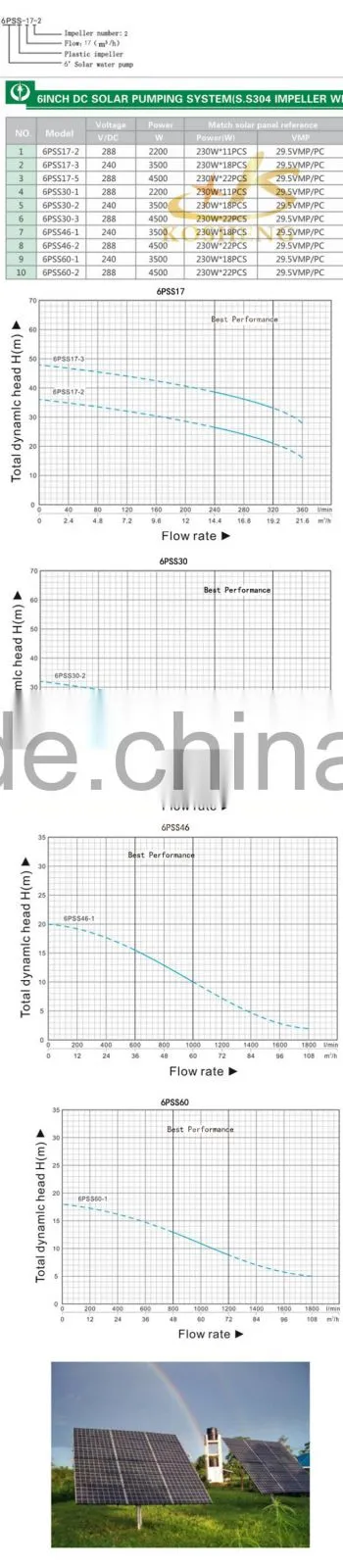

Solar Pump Performance Data
6PSS Series(6" S.S impeller pump with 4"water-filled motor)
Application
- Domestic water supply
- Livestock watering
- Gardens or fountains
- Pond management
- Irrigation in horticulture & agriculture
- Small scale service industries
- etc.
Product Use:
Domestic water, deep well water obtainment, vehicles, ships, reverse osmosis pure water machines, water treatment equipment, filters, spraying devices, purification equipment, cooling systems, and other industries
Accessories:
Solar Energy, Wind Energy, DC, Motor, Water Pump Intelligent Controller
3PS Solar Energy, Wind Energy, DC Submersible Pump

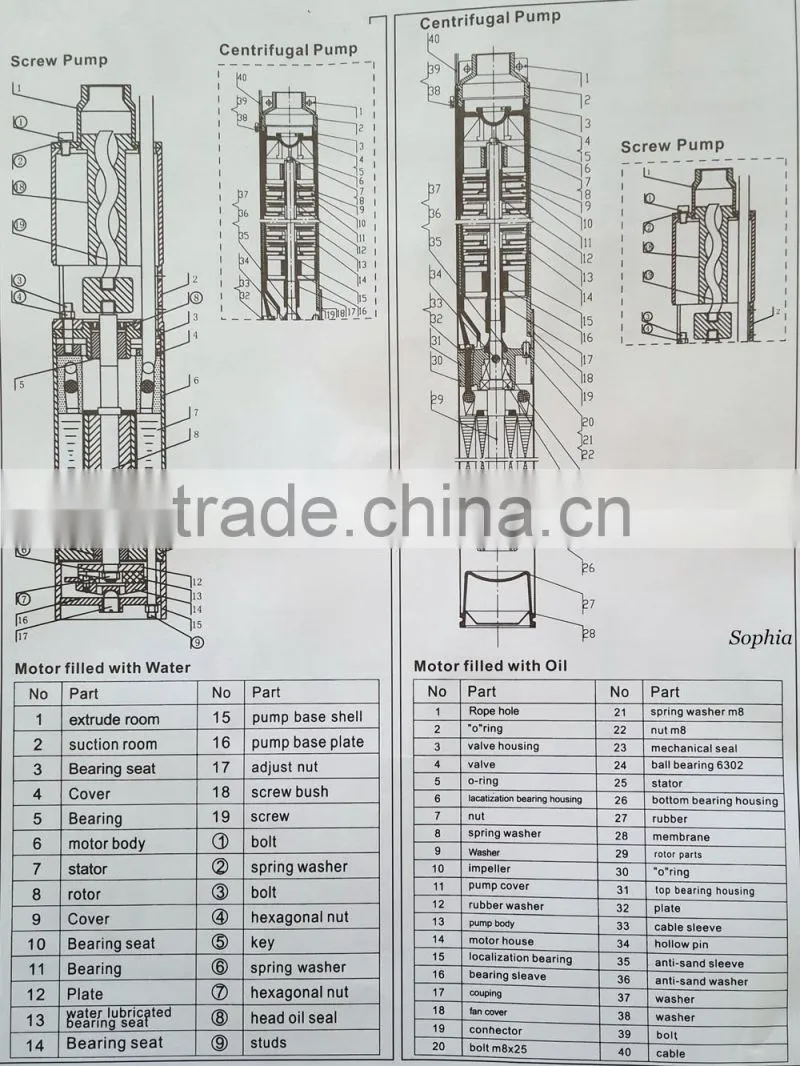

Pump Structure Chart

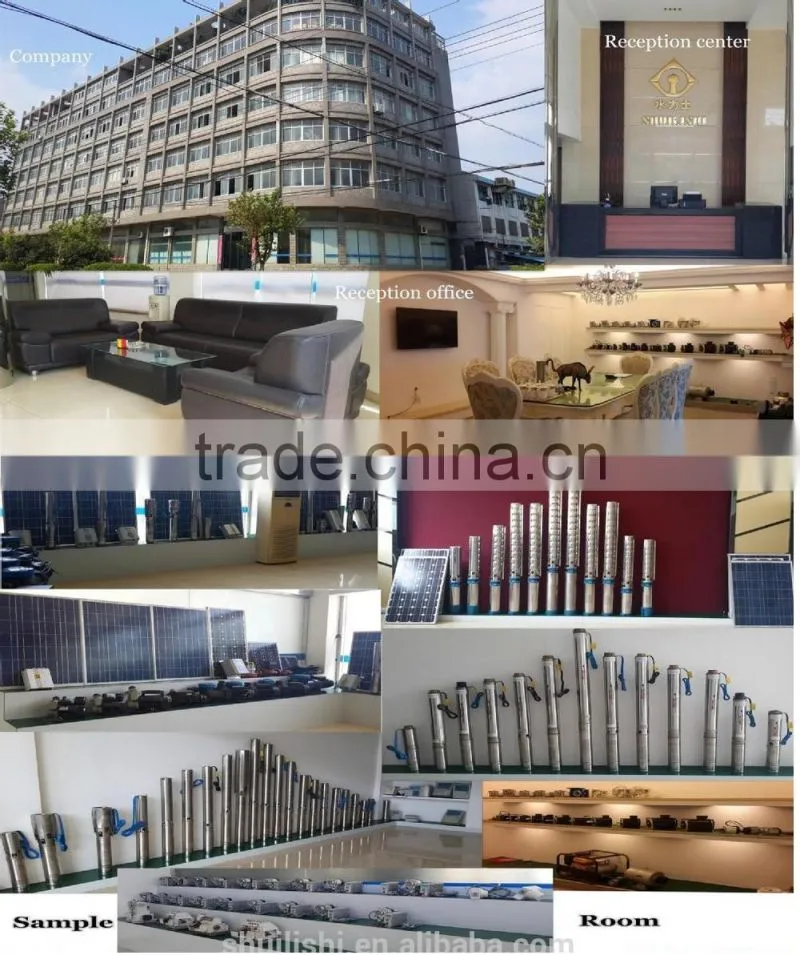

Taizhou Donghai Fishery Machine & Electronics Co., Ltd. not only owns advanced process technology, automatic production flow and strict process control but also integrates the design, development, production, sales and service.
Its leading products include high-efficiency solar energy systems, solar water pumps, AC submersible pumps, solar swimming pool pumps, 304 stainless steel shield water-filled or oil-filled submersible motors, brushless energy-saving servo motors for industrial sewing machines, silicon rectification generators, high pressure blowers, etc. Products can also be re-designed and adjusted so as to satisfy the requirements of the customers.
In addition, the company has been certified to ISO Quality Management System and the products have passed the certifications of CE and RoHS. Its excellent brand image and good reputation have also received high praise from most of the customers. It is believed that only by grasping the core technology and innovating constantly can we produce more satisfying products.
Features
1.6 years production experience
2.Energy-saving and environment-protected green products: Compared with the traditional altermation current machine,the efficiency is improved 25% by the permanent magnetism,direct current,brushless,non-sensor motor.
3. Adopt double plastic package for rotor and stator,motor insulation ≥300MΩ,the motor security was much improved.
4.High technique products adopting MPPT and DSP chip technique.
5.100% copper wire, cold-rolled silicon steel sheet
6.Stainless steel 304 shaft , motor body, screw&nut
7. Natural rubber of Sealing and rubber stator

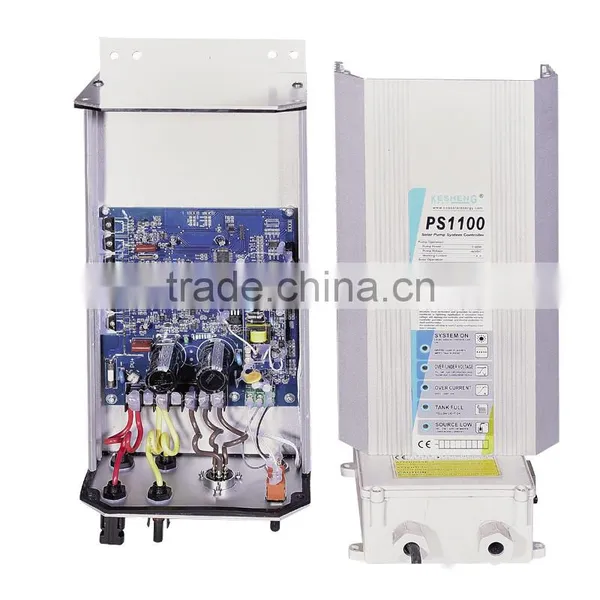

◊ THE ADVANTAGES OF NEW CONTROLLER:
1. Adopting Software start-up system for motor control.The motor starts up placidly and the current is far less than traditional hardware startup technology
2. By detecting the solar power circuit,the controller can prevent the motor from starting up frequently when the solar power is weal,Thereby it can protect the pump motor and prolong the motor lifetime
3. The MCU can detect the circuit automatically and can be displayed by LED.

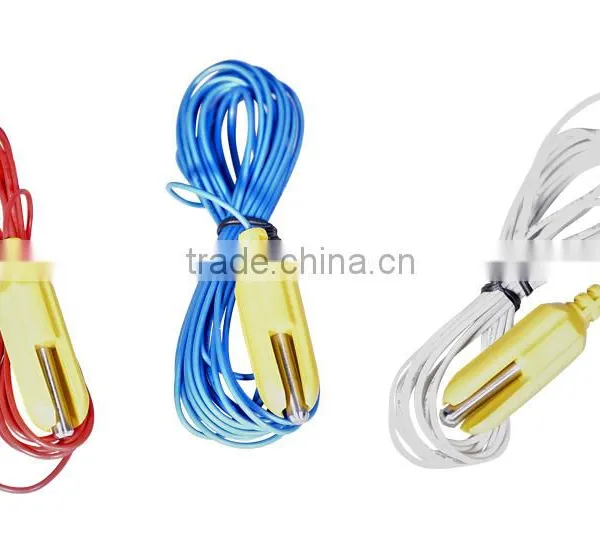

4. Through groundwater and tank water level detection,as well as the current and voltage detection,they system can work automatically.when the current is overload,the system can restar automatically.
CE CERTIFICATE
Send Inquiry to This Supplier
