Help CenterHybrid Solar Air Conditioner 3500W/1.5HP
Related Products
Specifications
1. Direct powered by solar in day time & by UPS in evening;
2. Battery pack is powered by solar directly;
3. Easy installation
Description:
1. Air conditioner is becoming necessity of modern life, which can greatly improve life quality. ECOOL off grid solar PV inverter air conditioner can assist people living in places short of power supply enjoying air conditioner freely and economically.

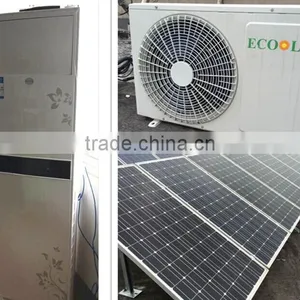

2. ECOOL off grid solar inverter air conditioner consists of solar PV panels, inverter air conditioner and solar UPS system (including solar charger, batteries and inverter). UPS system can be supplied locally, while ECOOL is equipped with a special solar charger directly from PV panel array during day time.
3. ECOOL off grid solar inverter air conditioner can work independently and charge batteries as well in day time, and can be powered by battery pack in the evening.
4. It can adjust the speed of air compressor gentlely, without frequent stop and start like ordinary air conditioner.
Features:
1. ECOOL can switch automaticly among solar energy, utility grid and battery pack;
2. Easy installation and maintenance;
3. Can provide comfortalbe and harmonious environment;
4. Can work independantly without utility grid support in day time.
Technical Data:
| Model | KFR-26GW/Bp | KFR-35GW/Bp | KFR-50LW/Bp | KFR-72LW/Bp | ||
| Performance: | ||||||
| Capacity | BTU/h | 9000 | 12000 | 17000 | 24000 | |
| W |
2600 (1250-3100) |
3500 (1450-3850) |
5100 (1100-6300) |
7200 (1500-8200) |
||
| Noise | Indoor | dB(A)≤ | 40 | 41 | 44 | 48 |
| Outdoor | dB(A)≤ | 50 | 52 | 57 | 60 | |
| Air circulation | M3/h | 480 | 620 | 950 | 1250 | |
| Suitable area | M2 | 12-19 | 16-25 | 24-37 | 34-53 | |
| EER | W/W | 4.01 | 4.02 | 4.06 | 4.1 | |
| Power Consumption: | ||||||
| Power Input | W |
740 (320-1150) |
1070 (320-1300) |
1500 (360-2200) |
2300 (500-3400) |
|
| Dimensions: | ||||||
| Indoor Unit | Net | mm | 880x286x196 | 880x286x196 | 500x1770x300 | 500x1795x380 |
| Outdoor Unit | Net | mm | 818x540x320 | 818x540x320 | 867x695x378 | 968x795x388 |
| Weight: | ||||||
| Indoor Unit | NW | Kg | 9.5 | 9.5 | 39 | 60 |
| Outdoor Unit | NW | Kg | 33 | 33 | 44 | 66 |
| Loading Qty | TEU | sets | 80 | 80 | 45 | 40 |
| 40 HQ | sets | 160 | 160 | 90 | 80 | |
Main Parts:
1. Solar PV Panel:
1.1 Absorb solar energy and convert into electricity;
1.2 High endurance against different atrocious weather;
1.3 3 years product warranty and 25 years lifetime;
2. DC Inverter Air Conditioner:
2.1 Adjust speed of air compressor against solar radiation;
2.2 1 year product warranty and 10 years lifetime
