1KW-4KW DC 12V-36V Silicon Rectifier Generator / Marine Generators

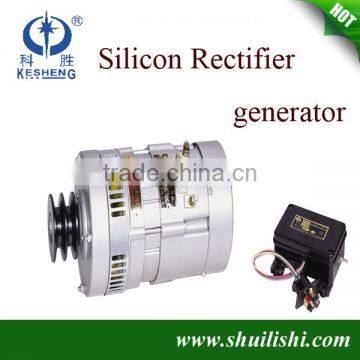

1KW-4KW DC 12V-36V Silicon Rectifier Generator / Marine Generators photo-1

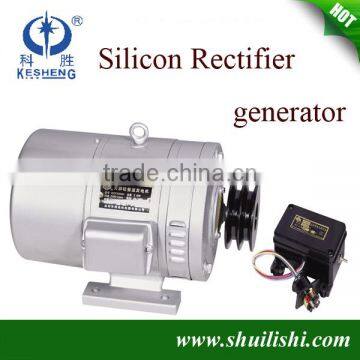

1KW-4KW DC 12V-36V Silicon Rectifier Generator / Marine Generators photo-2
1KW-4KW DC 12V-36V Silicon Rectifier Generator / Marine Generators photo-3
US$ 58 - 500 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KESHENG
Model Number:
JF1000Y/JF1500Y/JF2000Y/JF3000Y/JF4000Y
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name KESHENG
Model Number JF1000Y/JF1500Y/JF2000Y/JF3000Y/JF4000Y
Output Type DC
Speed 3000r/min
Frequency Power Standard
Rated Power 1Kw/1.5KW/2KW/3KW/4KW
Rated Voltage 12V/36V
Rated Current 36A

  1KW-4KW DC 12V-36V Silicon Rectifier generator / Marine generators

Product Features:



1.The JF silicon rectifying generator is equipped with the JF transistor voltage adjuster;

2.The output power includes 1KW, 1.5KW, 2KW, 3KW and 4KW and can meet the charging and lighting requirements of vehicles and ships;

3.At the low rotary speed, the product can still output bigger power for lighting or charging, and the service life of the storage cell is long;

4.It is convenient to use and easy to maintain, and realizes the stable power supply at voltage from 24 to 36V without influence of the load and rotary speed;

5.It has the cut-off current characteristics, and the current will not flow back to the generator;

6.Due to simple structure, the product is conveniently installed on the engine



1KW-4KW DC 12V-36V Silicon Rectifier generator / Marine generators1KW-4KW DC 12V-36V Silicon Rectifier generator / Marine generators



MODEL POWER(W) VOLTAGE(V) CURRENT(A) SPEED(R/MIN) MAXIMUM OPERATION SPEED(R/MIN) REGULATOR
JF1000Y 1000 24/36 33.5/28 2500 3000

JF201C

JF1500Y 1500 24/36 46.2/42 2500 3000 JF201C
WZF200H 2000 24/36 67/56 2500 3000 JFT202C
WZF300H 3000 24/36 92.4/84 2500 3000 JFT203C
GZF400H 4000 24/36 133/112 2500 3000 JFT204C









 Application

Silicon Rectifier generator is powered by an internal combustion engine main power supply construction machinery, while work in internal combustion engines, it would like to supply electrical equipment machinery and will be charged excess power to the battery to ensure the battery always in full charged state.
